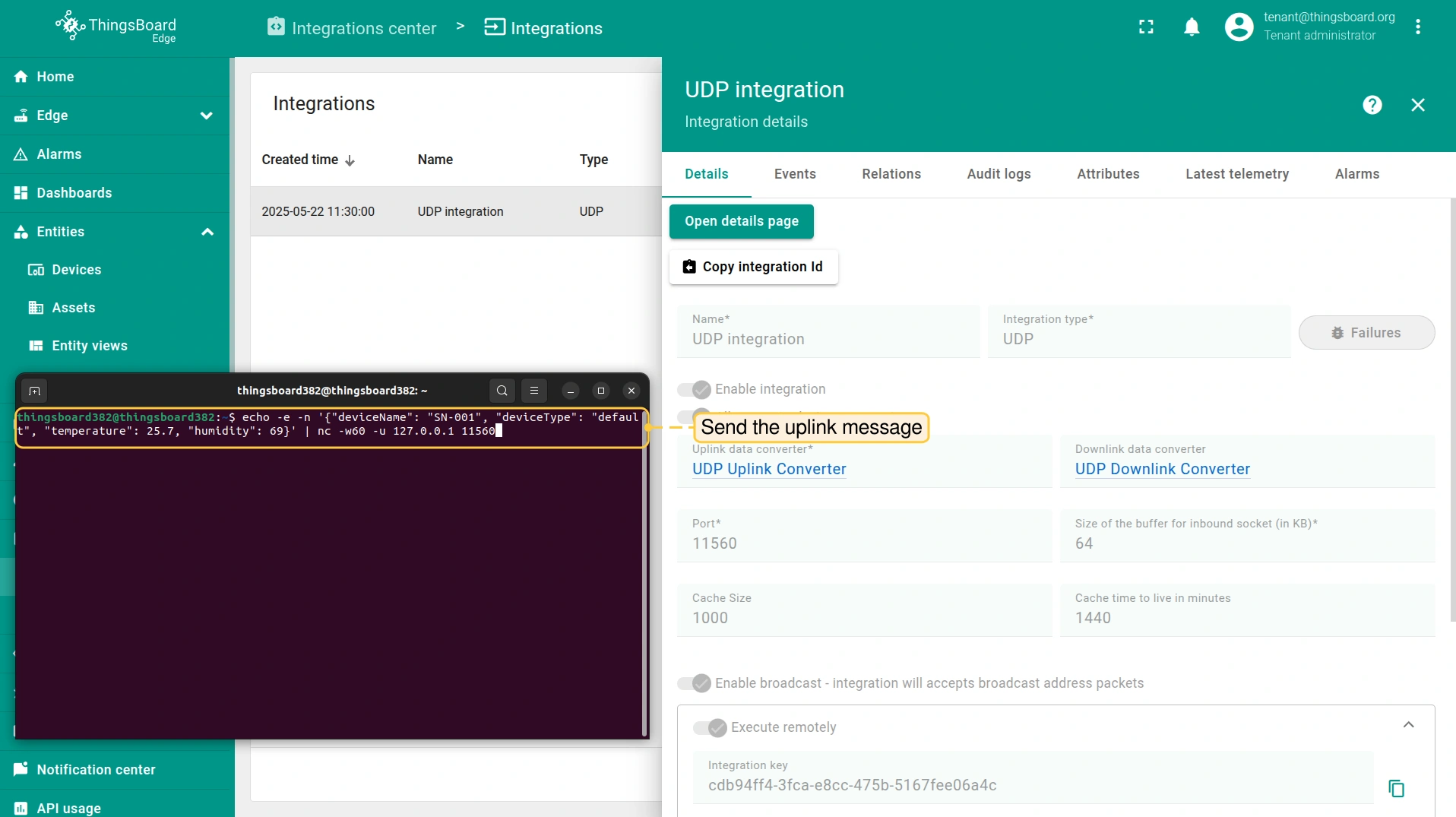

• Send an uplink message

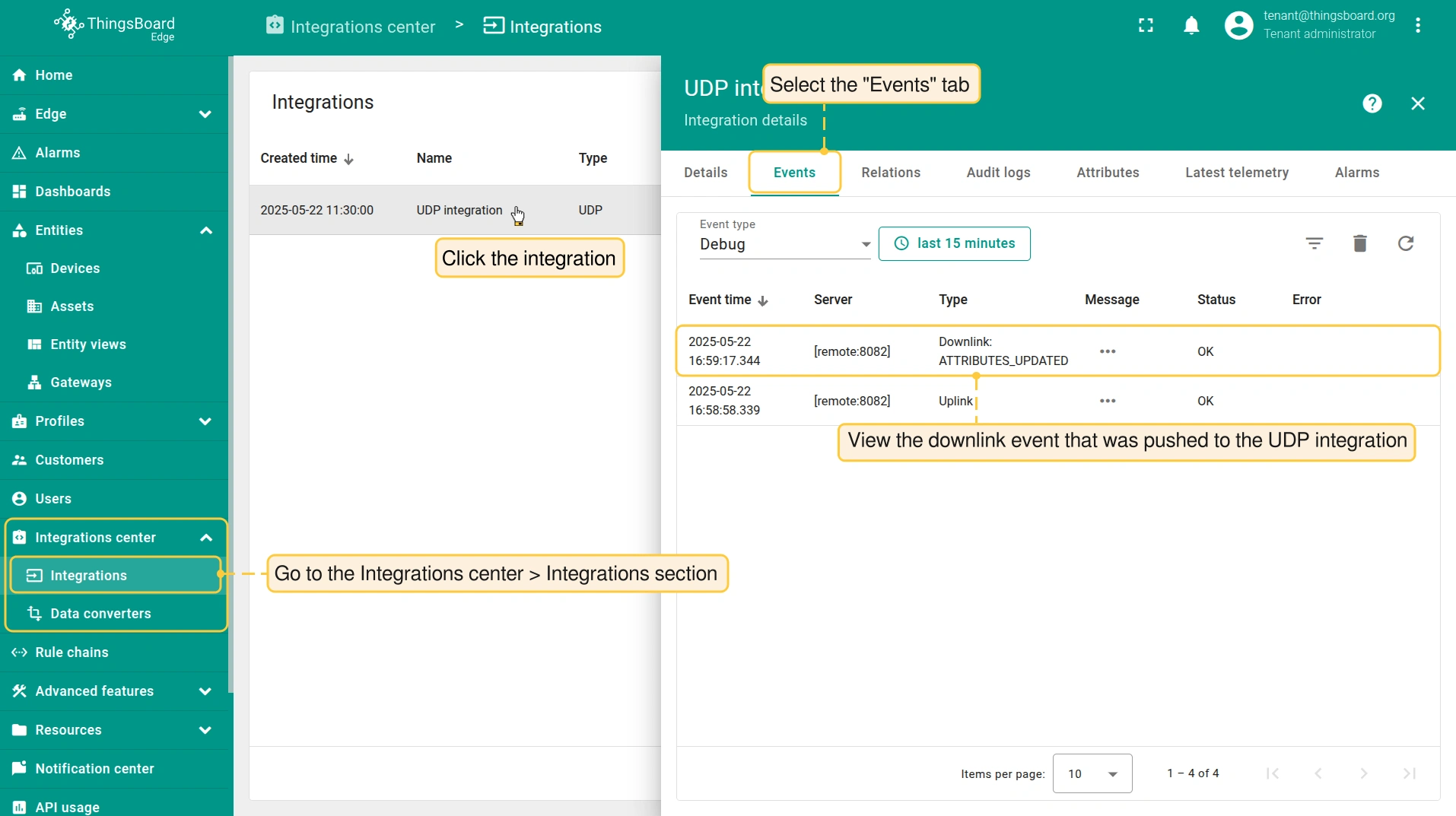

• Send the downlink message
• Next steps

Edge UDP Integration is implemented similarly to the UDP Integration. The only difference is how the integration is created and deployed. Before proceeding, refer to the UDP Integration documentation.

Overview

UDP Integration allows data to be streamed to ThingsBoard Edge from devices that use a UDP transport protocol, and converts payloads from these devices to the ThingsBoard Edge format.

UDP Integration can only be started as a Remote Integration. It can be started on the same machine, where the TB Edge instance is running, or you can start it on another machine that has access to the TB Edge instance over the network.

To learn more, review the integration diagram:

Prerequisites

In this tutorial, we will use:

• ThingsBoard Edge Professional Edition;
• UDP Integration: The integration that runs externally and is connected to the ThingsBoard Edge instance.
• echo command: To display a line of text, and redirect its output to the netcat (nc) utility.
• netcat (nc) utility: To establish TCP connections, receive data from there, and transmit it.

Let’s assume that we have a sensor which is sending current temperature and humidity readings. Our sensor device SN-001 publishes the temperature and humidity readings to UDP Integration on port 11560 to the machine where UDP Integration is running.

For demonstration purposes, we assume that our device is smart enough to send data in 3 different payload types:

• Text: The payload is

  1
  SN-001,default,temperature,25.7,humidity,69


• JSON: The payload is

1
2
3
4
5
6
7
8
[
  {
    "deviceName": "SN-001",
    "deviceType": "default",
    "temperature": 25.7,
    "humidity": 69
  }
]

• Binary: The binary payload is (in HEX string):

  1
  \x53\x4e\x2d\x30\x30\x31\x64\x65\x66\x61\x75\x6c\x74\x32\x35\x2e\x37\x36\x39


  Here is the description of the bytes in this payload:

  • 0-5 bytes: \x53\x4e\x2d\x30\x30\x3 - The device name. If we convert it to the text, it is SN-001.
  • 6-12 bytes: \x64\x65\x66\x61\x75\x6c\x74 - The device type. If we convert it to the text, it is default.
  • 13-16 bytes: \x32\x35\x2e\x37 - The temperature telemetry. If we convert it to the text, it is 25.7.
  • 17-18 bytes: \x36\x39 - The humidity telemetry. If we convert it to text, it is 69.
• Hex: The payload is a hexadecimal string:

  1
  534e2d30303164656661756c7432352e373639


  Here is the description of the bytes in this payload:

  • 0-5 bytes: 534e2d303031 - The device name. If we convert it to the text, it is SN-001;
  • 6-12 byte: 64656661756c74 - The device type. If we convert it to the text, it is default;
  • 13-16 byte: 32352e37 - The temperature telemetry. If we convert it to the text, it is 25.7;
  • 17-18 byte: 3639 - The humidity telemetry. If we convert it to the text, it is 69;

Based on your device capabilities and business cases, you can choose the payload type:

On the machine, running remote UDP Integration, port 11560 must be opened for incoming connections—the nc utility must be able to connect to he UDP socket. If you are running it locally, it should be fine without any additional changes.

Create Converter templates

To create Converter and Integration templates, log in to the Cloud instance as Tenant administrator.

Uplink Converter template

Before creating the Integration template, create an Uplink and Downlink converter templates in Converters templates section.

The uplink data converter is needed to convert the incoming data from the device into the format required for display on ThingsBoard Edge.

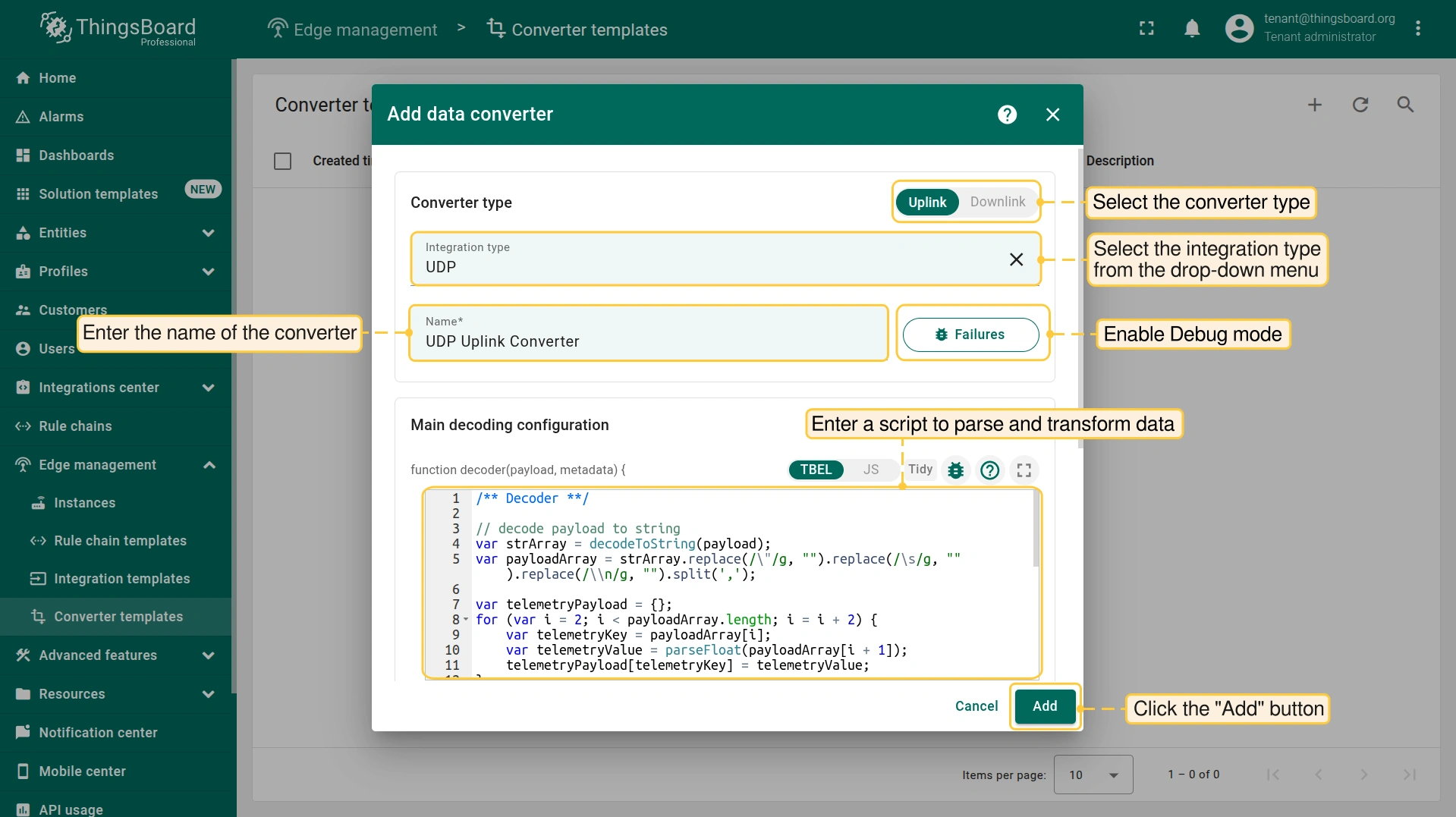

• Log in to the Cloud and go to the Edge management > Converter templates section. To create a Converter template, click the “Add data converter” button (the + icon) and select the “Create new converter” option.
• In the “Add data converter” pop-up window:
  • Name: Enter the name of the data converter.
  • Type: Select the “Uplink” converter type from the drop-down menu.
  • To view the events, enable Debug mode.
  • function Decoder: Enter a script to parse and transform data.
  • Click the “Add” button.

While Debug mode is very useful for development and troubleshooting, keeping it enabled in production can significantly increase database storage requirements, since all debug data is stored there.

We strongly recommend disabling Debug mode once debugging activities are complete.

Select the device payload type to use for a decoder configuration:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
/** Decoder **/

// decode payload to string
var strArray = decodeToString(payload);
var payloadArray = strArray.replace(/\"/g, "").replace(/\s/g, "").replace(/\\n/g, "").split(',');

var telemetryPayload = {};
for (var i = 2; i < payloadArray.length; i = i + 2) {
    var telemetryKey = payloadArray[i];
    var telemetryValue = parseFloat(payloadArray[i + 1]);
    telemetryPayload[telemetryKey] = telemetryValue;
}

// Result object with device attributes/telemetry data
var result = {
    deviceName: payloadArray[0],
    deviceType: payloadArray[1],
    telemetry: telemetryPayload,
    attributes: {}
  };

/** Helper functions **/

function decodeToString(payload) {
   return String.fromCharCode.apply(String, payload);
}

return result;

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
/** Decoder **/

// decode payload to JSON
var data = decodeToJson(payload);

// Result object with device/asset attributes/telemetry data

var deviceName = data.deviceName;
var deviceType = data.deviceType;
var result = {
   deviceName: deviceName,
   deviceType: deviceType,
   attributes: {},
   telemetry: {
       temperature: data.temperature,
       humidity: data.humidity
   }
};

/** Helper functions **/

function decodeToString(payload) {
   return String.fromCharCode.apply(String, payload);
}

function decodeToJson(payload) {
   // covert payload to string.
   var str = decodeToString(payload);

   // parse string to JSON
   var data = JSON.parse(str);
   return data;
}

return result;

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
/** Decoder **/

// decode payload to string
var payloadStr = decodeToString(payload);

// decode payload to JSON
// var data = decodeToJson(payload);

var deviceName = payloadStr.substring(0,6);
var deviceType = payloadStr.substring(6,13);

// Result object with device/asset attributes/telemetry data
var result = {
   deviceName: deviceName,
   deviceType: deviceType,
   attributes: {},
   telemetry: {
       temperature: parseFloat(payloadStr.substring(13,17)),
       humidity: parseFloat(payloadStr.substring(17,19))
   }
};

/** Helper functions **/

function decodeToString(payload) {
   return String.fromCharCode.apply(String, payload);
}

function decodeToJson(payload) {
   // covert payload to string.
   var str = decodeToString(payload);

   // parse string to JSON
   var data = JSON.parse(str);
   return data;
}

return result;

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
/** Decoder **/

// decode payload to JSON
var data = decodeToJson(payload).reports[0].value;

// Result object with device telemetry data
var result = {
    deviceName: hexToString(data.substring(0, 12)),
    deviceType: hexToString(data.substring(12, 26)),
    telemetry: {
        temperature: parseFloat(hexToString(data.substring(26, 34))),
        humidity: parseFloat(hexToString(data.substring(34, 38))),
    }
};

/** Helper functions **/

function decodeToString(payload) {
    return String.fromCharCode.apply(String, payload);
}

// Hexadecimal string to string
function hexToString(hex) {
    var str = '';
    for (var i = 0; i < hex.length; i += 2) {
        var notNullValue = parseInt(hex.substr(i, 2), 16);
        if (notNullValue) {
            str += String.fromCharCode(notNullValue);
        }
    }
    return str;
}

function decodeToJson(payload) {
    // convert payload to string.
    var str = decodeToString(payload);

    // parse string to JSON
    var data = JSON.parse(str);
    return data;
}

return result;

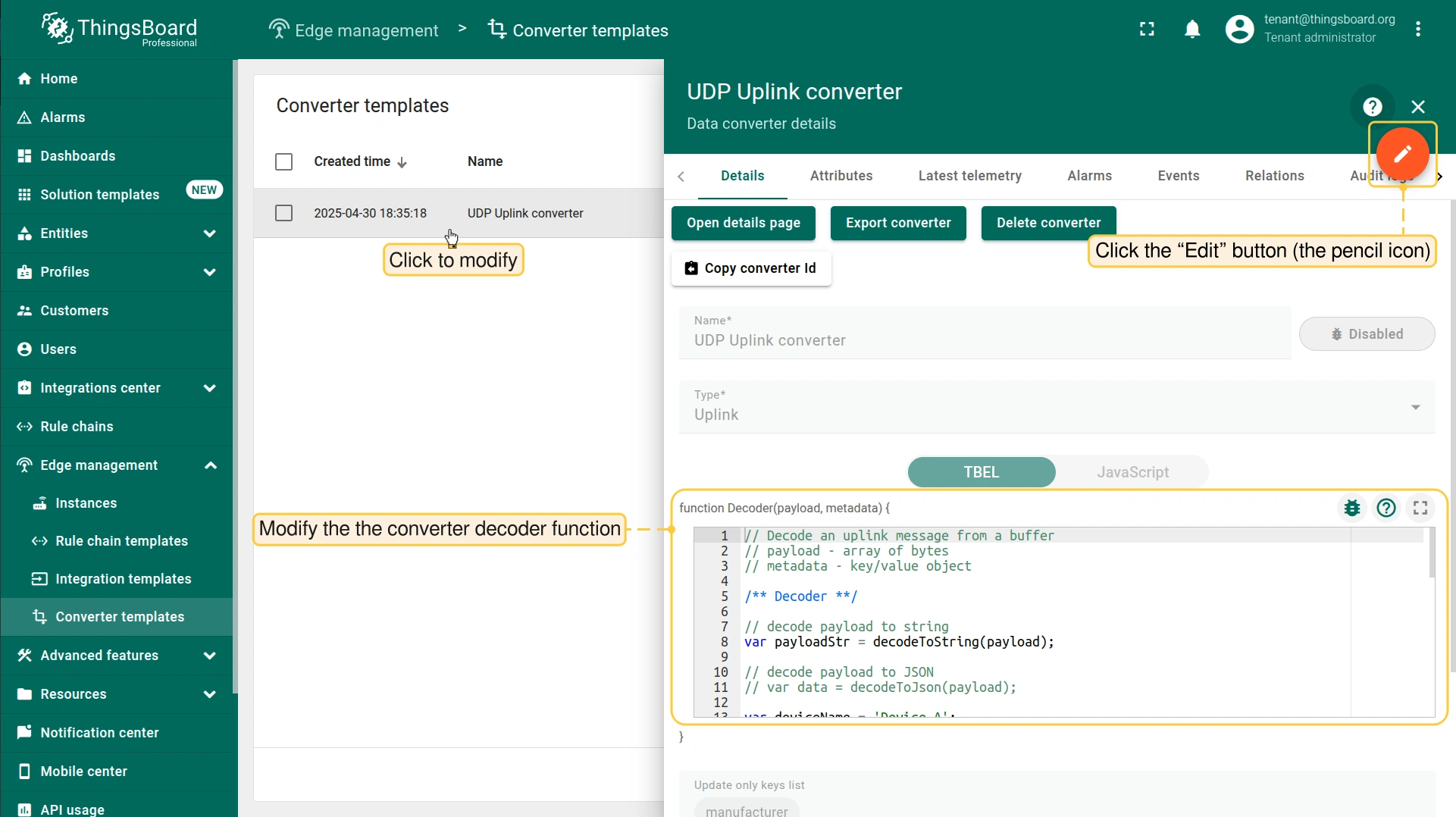

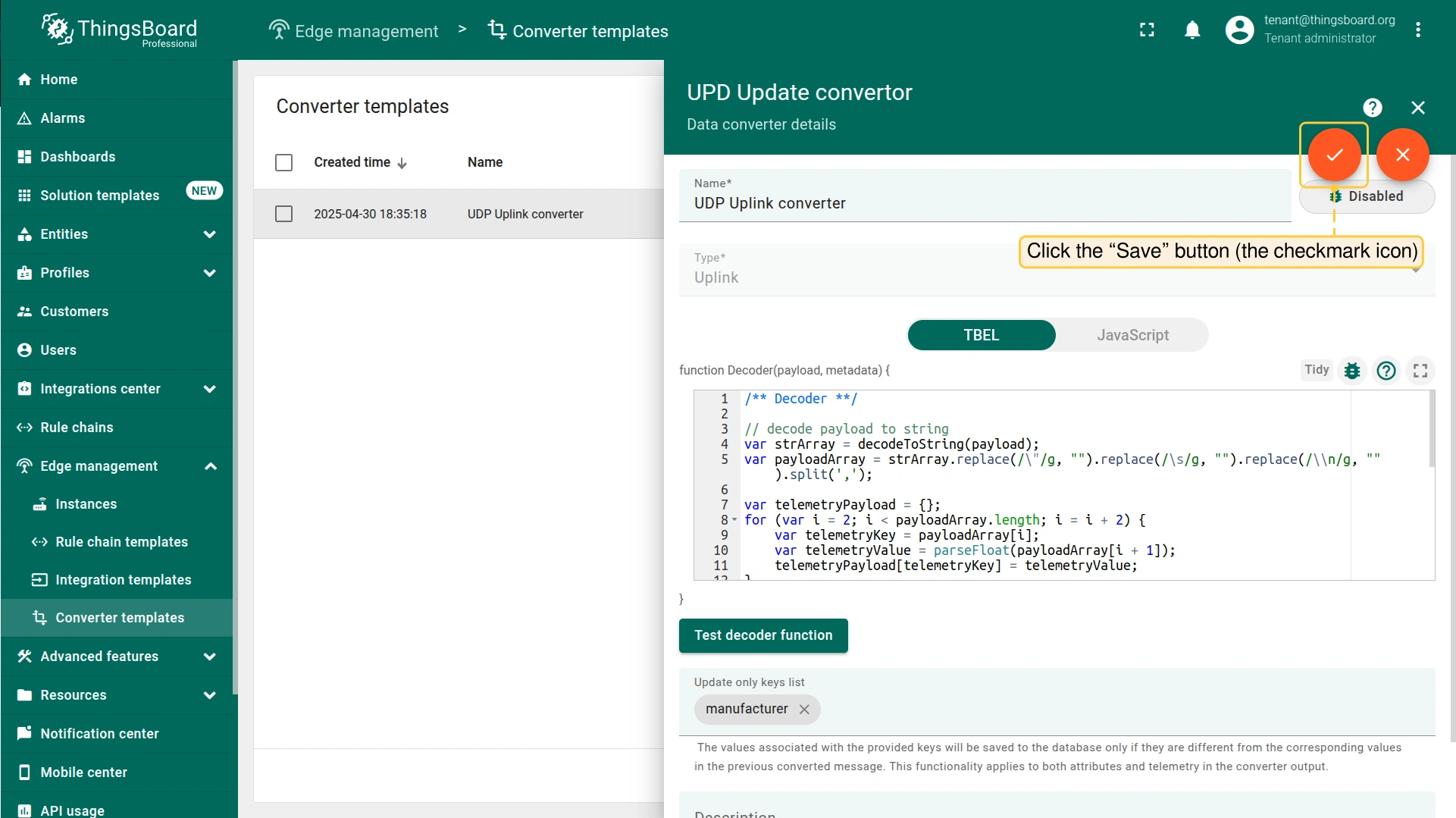

You can change the function Decoder while creating the converter or after creating it:

• If the converter has already been created, click it to open the “Data converter details” window.
• Click the “Edit” buton (the ‘pencil’ icon) to edit the data converter.
• Copy the configuration example or create your own converter configuration and paste it into the “function Decoder” field.
• To save the changes, click the “Save” button (the ‘checkmark’ icon).

Downlink Converter template

Also create the Downlink Converter Template in the Converter Templates section:

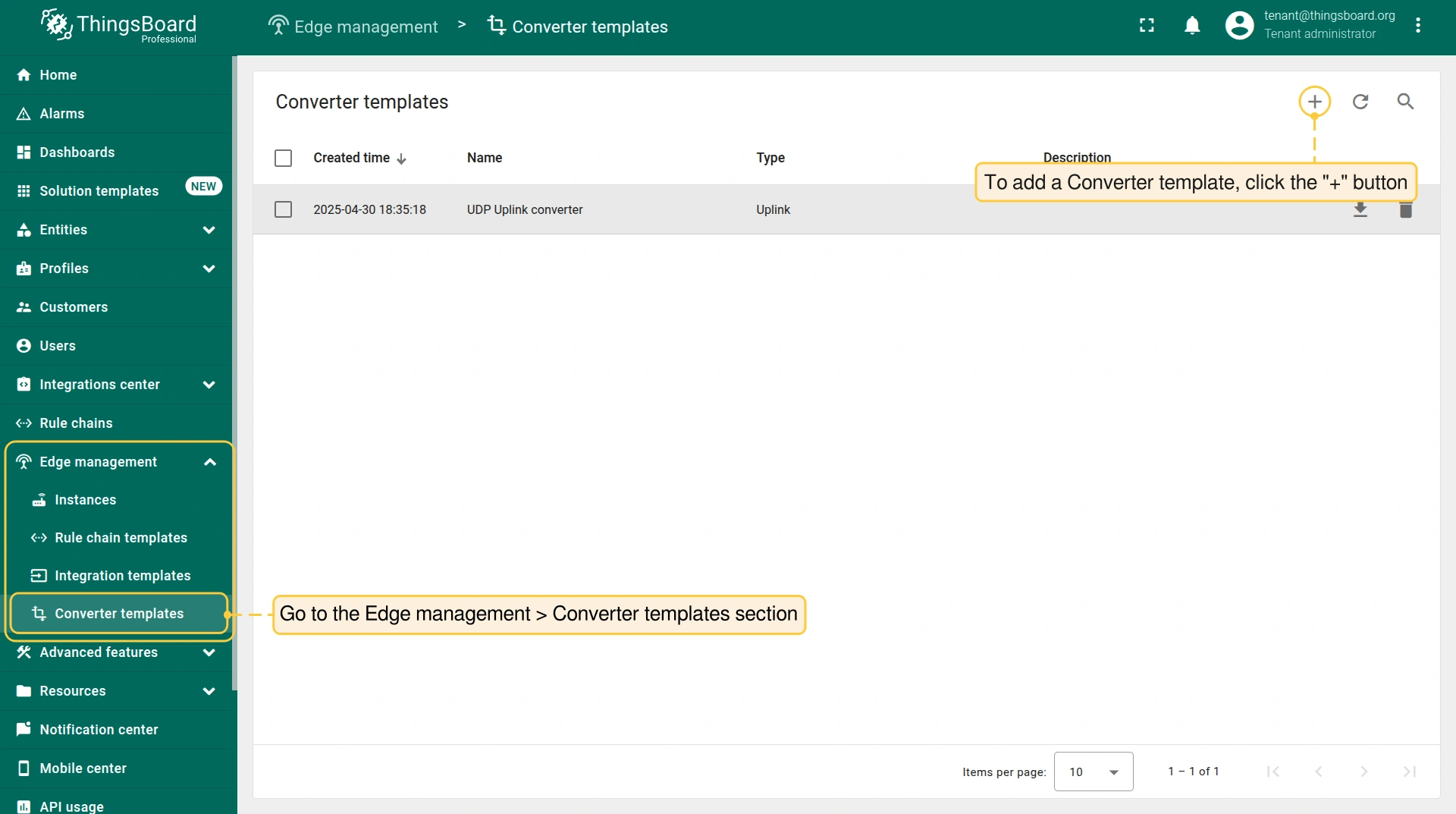

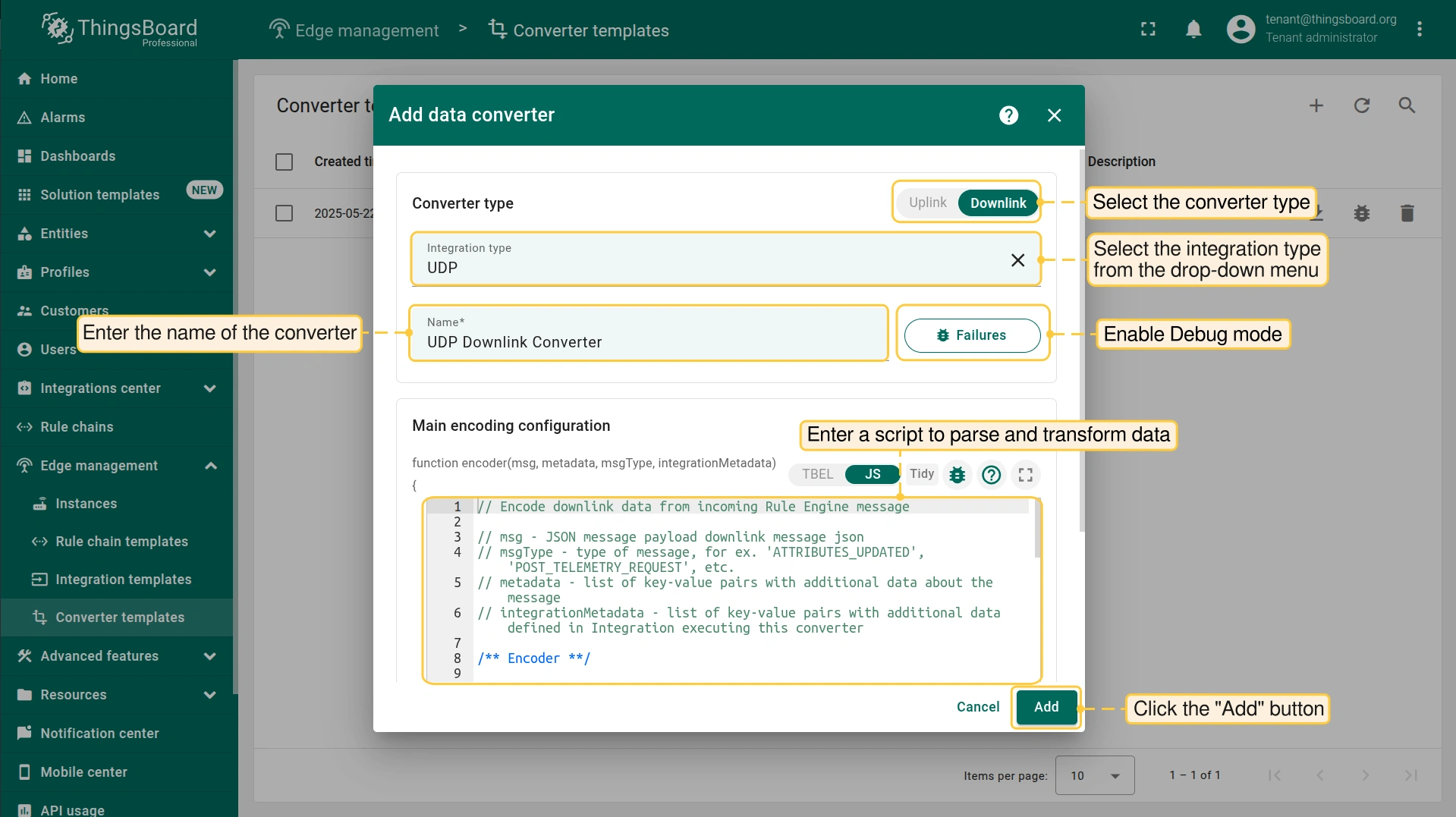

• On the Edge management > Converter templates section page, click the “Add data converter” button (the + icon) to create another Converter template, and select the “Create new converter” option.
• In the “Add data converter” pop-up window:
  • Name: Enter the name of the data converter.
  • Type: Select the “Downlink” converter type from the drop-down menu.
  • To view the events, enable Debug mode.
  • function Decoder: Enter a script to parse and transform data.
  • Click the “Add” button.

You can customize a downlink according to your configuration. Let’s consider an example where we send an attribute update message. An example of a downlink converter:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
// Encode downlink data from incoming Rule Engine message

// msg - JSON message payload downlink message json
// msgType - type of message, for ex. 'ATTRIBUTES_UPDATED', 'POST_TELEMETRY_REQUEST', etc.
// metadata - list of key-value pairs with additional data about the message
// integrationMetadata - list of key-value pairs with additional data defined in Integration executing this converter

var result = {

    // downlink data content type: JSON, TEXT or BINARY (base64 format)
    contentType: "JSON",

    // downlink data
    data: JSON.stringify(msg),

    // Optional metadata object presented in key/value format
    metadata: {
    }
};

return result;

Create Integration template

Now that the Uplink and Downlink converter templates have been created, it is possible to create the Integration:

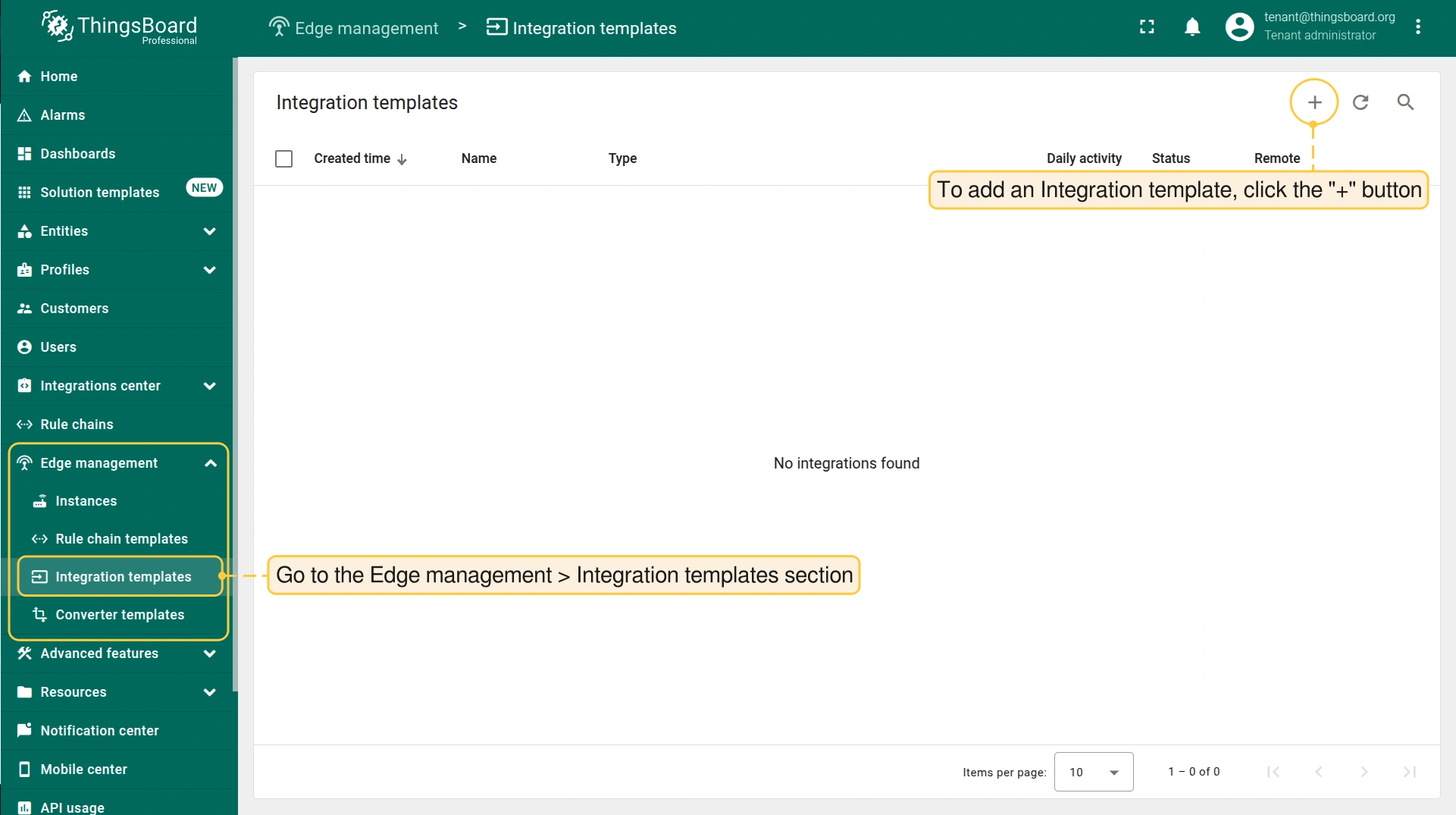

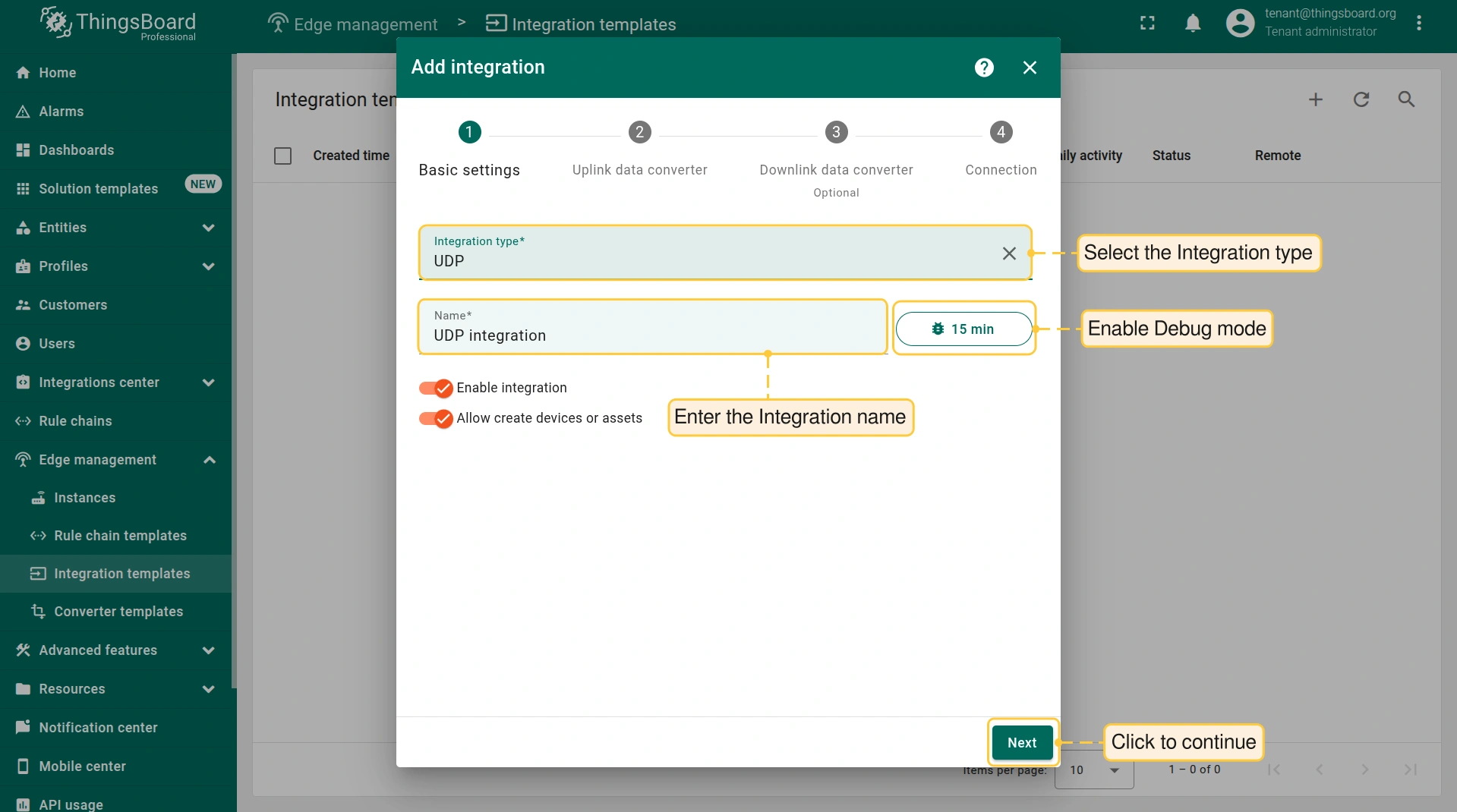

• Go to the Edge management > Integration templates section, click the “Add new integration” button (the + icon) and select the “Create new integration” option.
• In the “Add integration” pop-up window and fill out the “Basic settings” block:
  • Integration type: Select the “UDP” integration type from the drop-down menu.
  • Name: Enter the name of the integration.

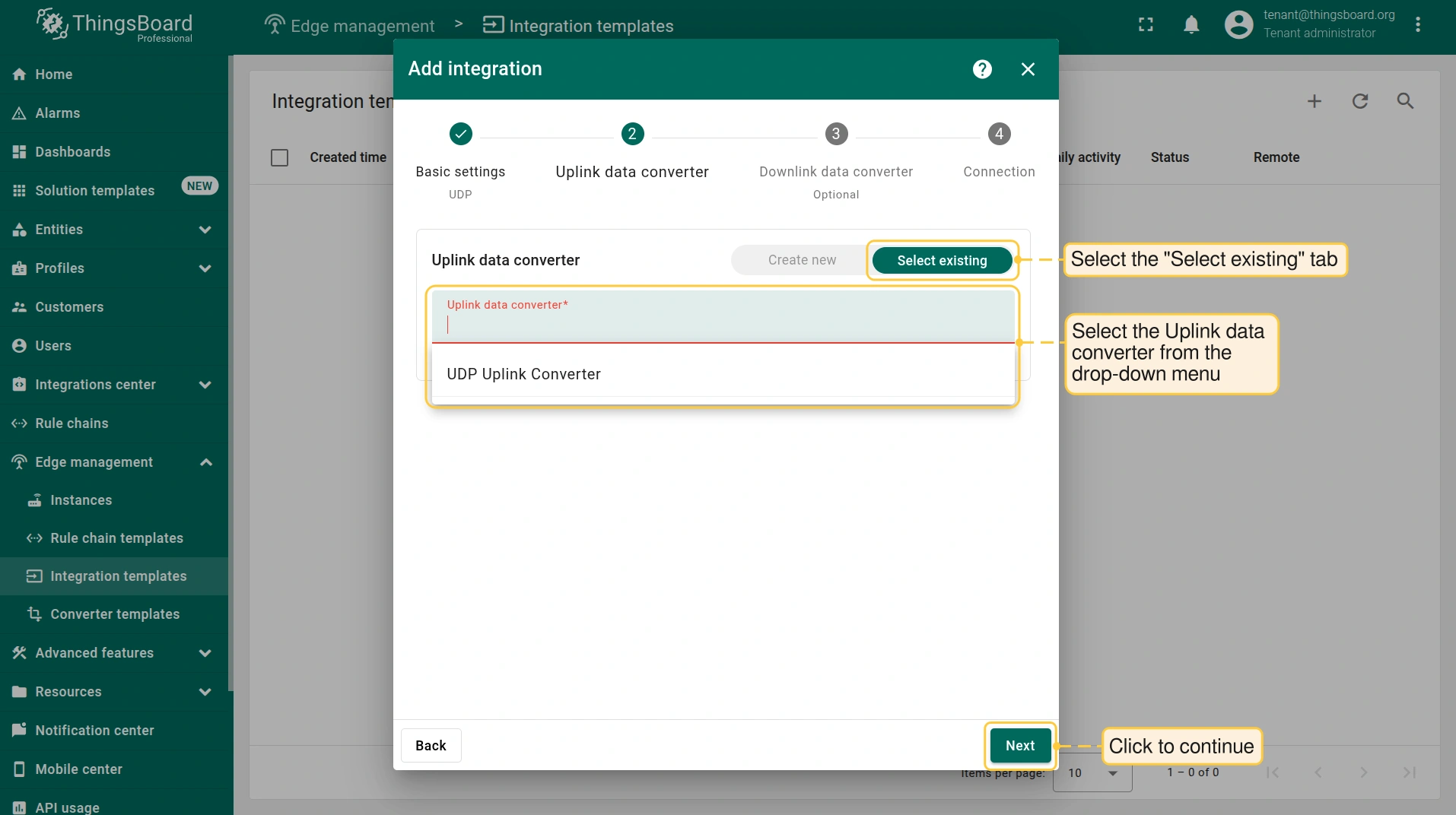

• In the “Uplink data converter” block:
  • Select the “Select existing” tab.
  • Uplink data converter: Select the uplink data converter from the drop-down menu.

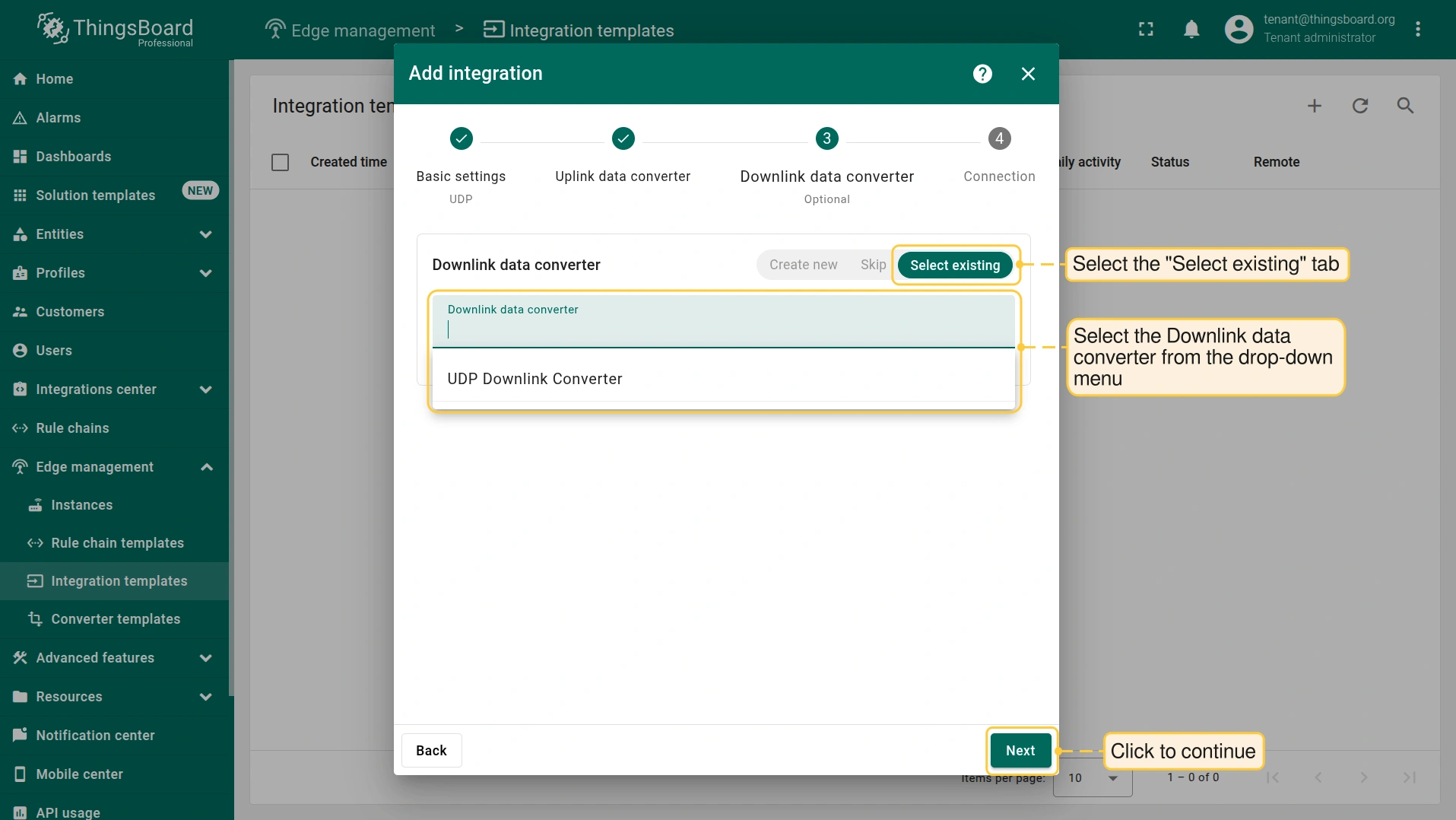

• In the “Downlink data converter” block:
  • Select the “Select existing” tab.
  • Downlink data converter: Select the uplink data converter from the drop-down menu.
• In the “Connection” block:
  • Enter the Port and Size of the buffer for inbound socket (in KB) in the corresponding fields. By default, the UDP Integration will use the port 11560, but can be changed to any available port.
  • Enter the Cache Size and Cache time to live in minutes in the corresponding fields.
  • Enable broadcast - integration will accept broadcast address packets: Flag to indicate that integration accepts UDP packets sent to broadcast address.
  • Integration key and Integration secret: Copy the values to use later in the configuration.

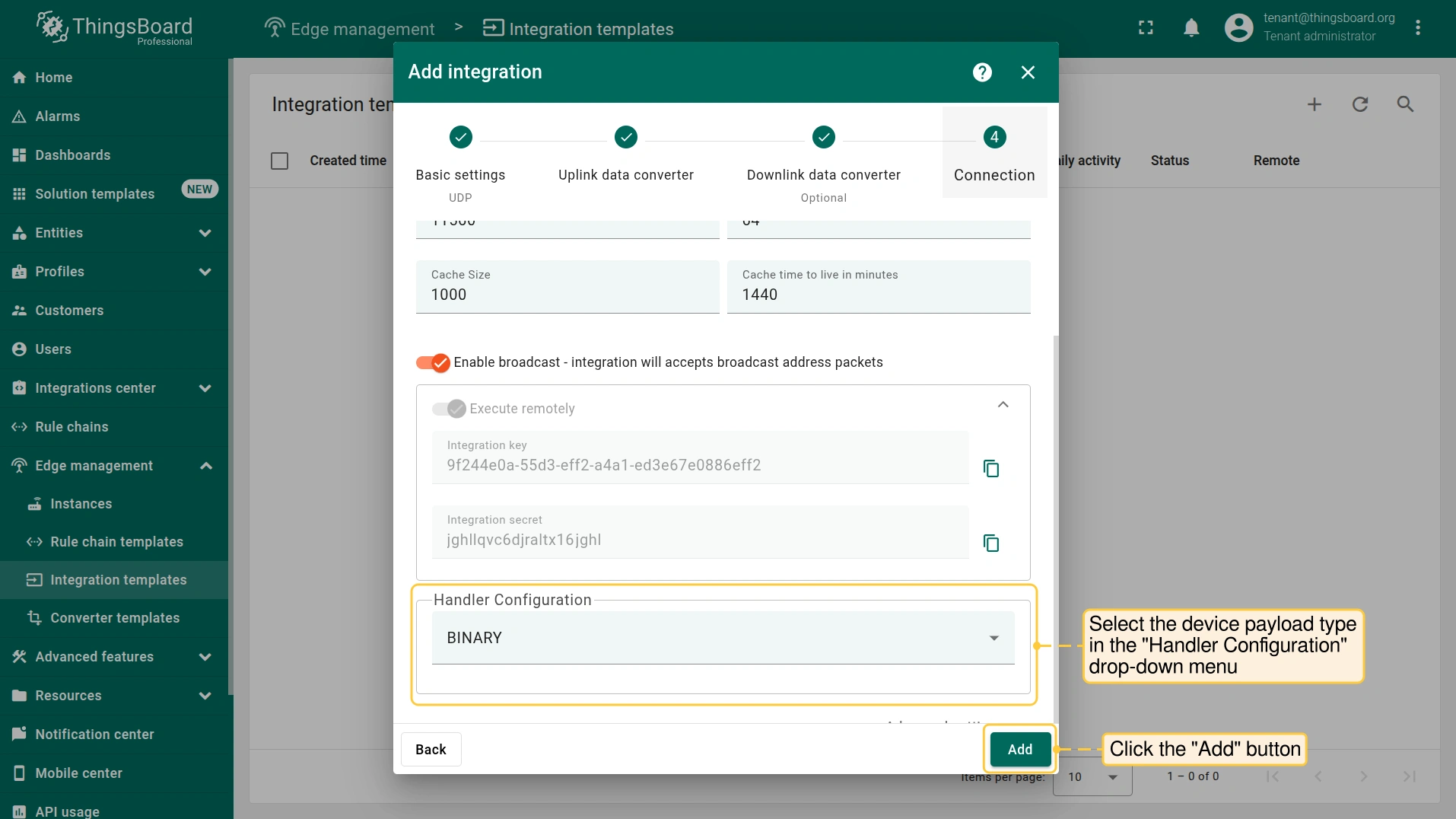

  • Handler Configuration: Select the device payload type from the drop-down menu.

The Execute remotely option is selected by default and cannot be changed, the UDP Integration can only be the remote type.

Select the device payload type for Handler Configuration:

To save the Integration, click the Add button.

Modify the Edge Root Rule chain for Downlinks

We can send a downlink message to the device from the Rule chain using the rule node. To send downlink via integration, modify the Edge Root Rule chain.

Please note!
If you use earlier versions of Edge, you cannot create or edit a Rule Chain on the Edge itself. It must be configured as a template in the Cloud (Server), and then assigned to the Edge instance.

Starting with Edge version 4.0, you can create and edit a Rule Chain on the Edge.

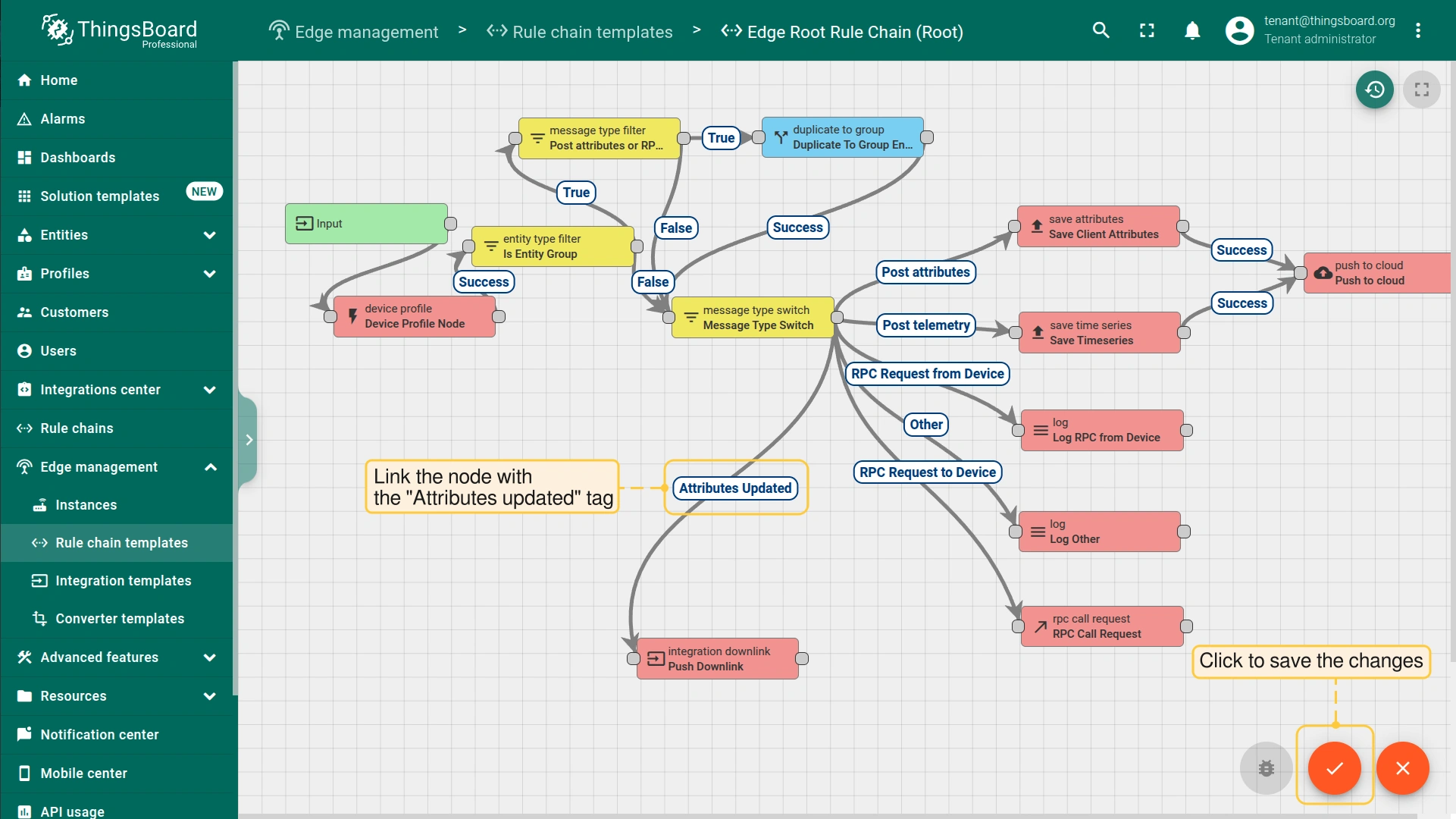

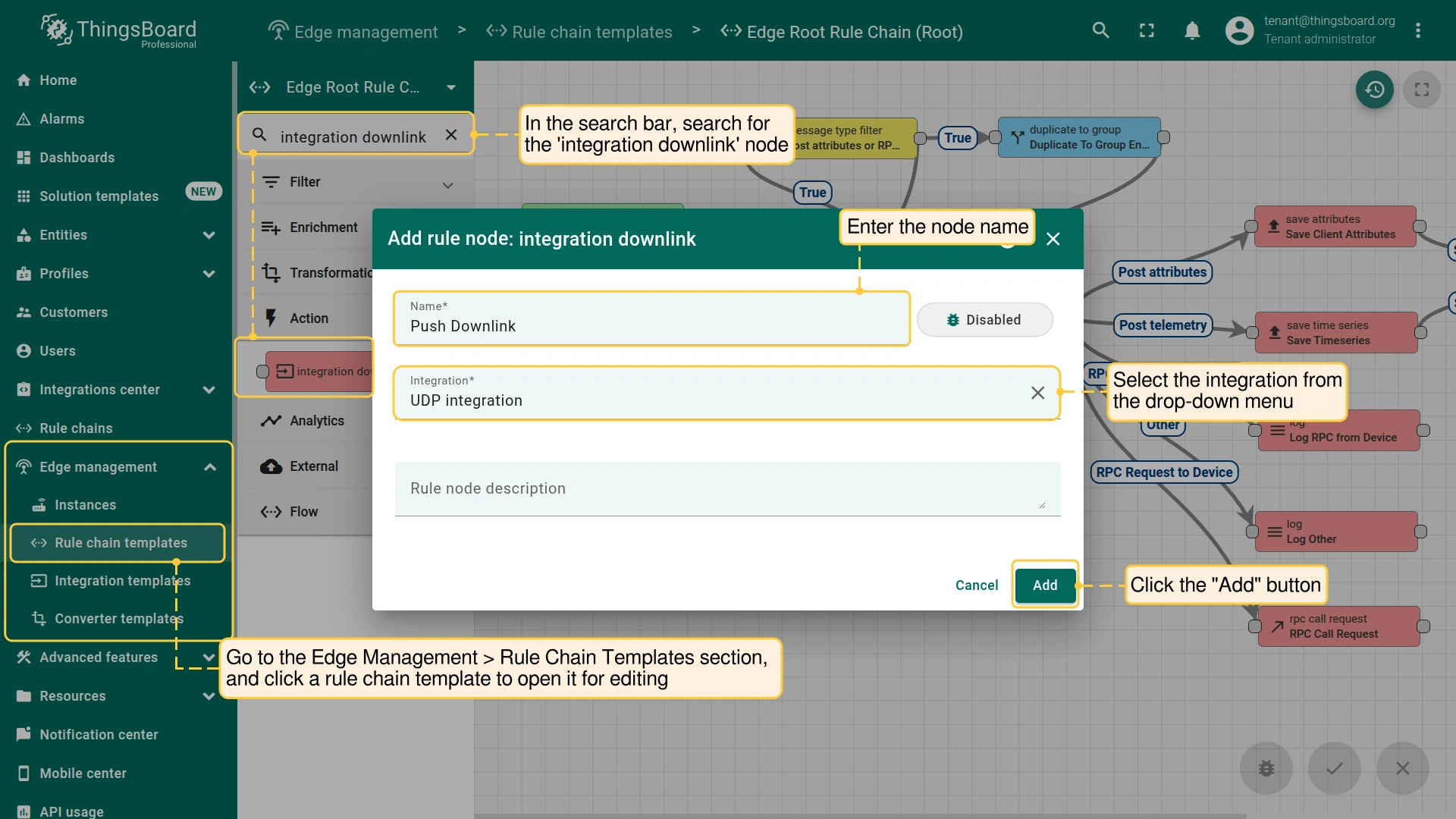

For example, you can add an integration downlink node and set the ‘Attributes Updated’ link to it. When the device attribute changes, the downlink message is sent to the integration.

Assign Integration to Edge

Once the converter and integration templates are created, we can assign the integration template to Edge.

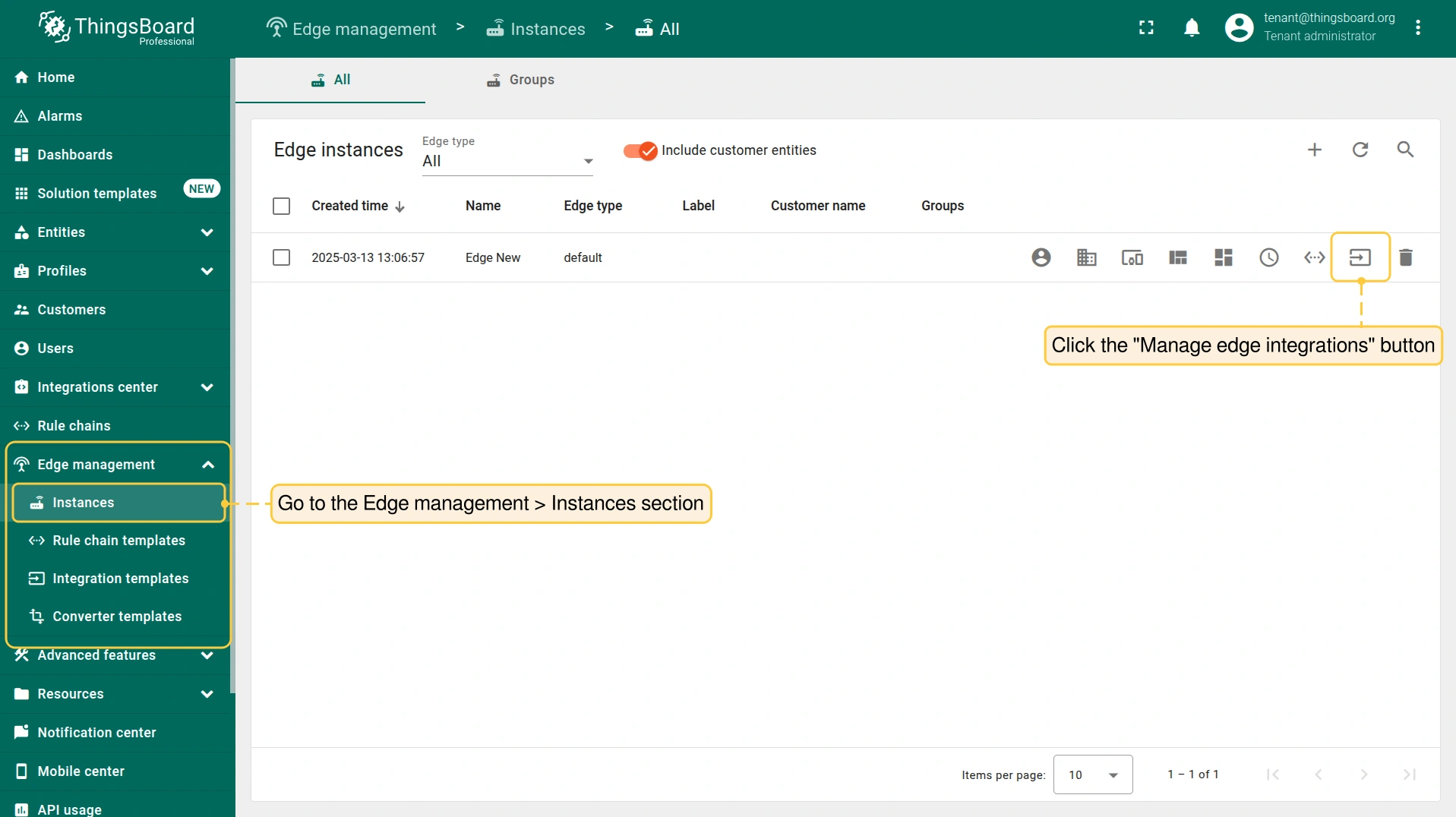

• Go to the Edge management > Instances section and click the Manage edge integrations button.

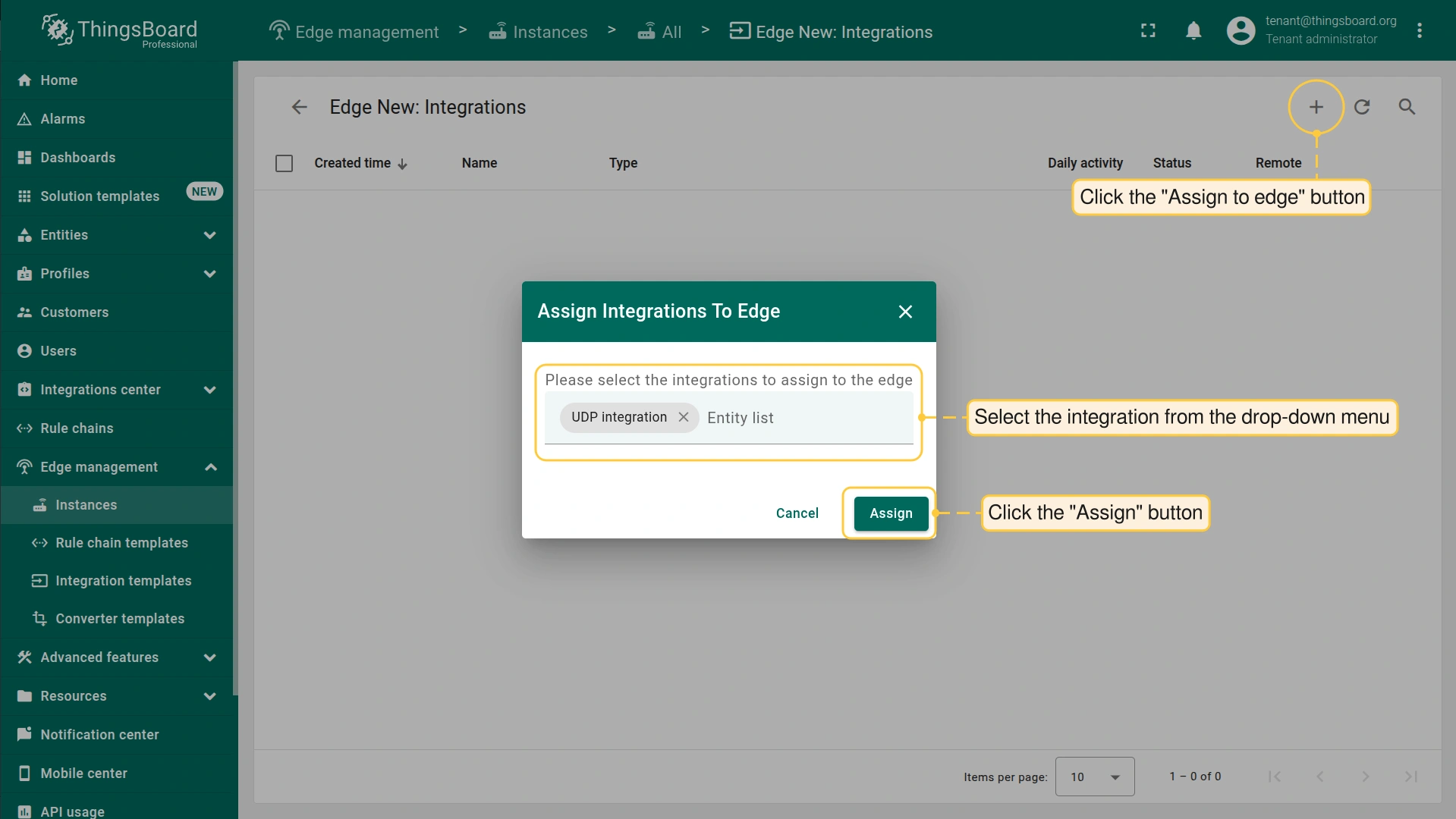

• On the Integration page, click the "Assign to edge" button. In the "Assign the Integration to the Edge" pop-up window, select the integration from the drop-down menu and click the "Assign" button.

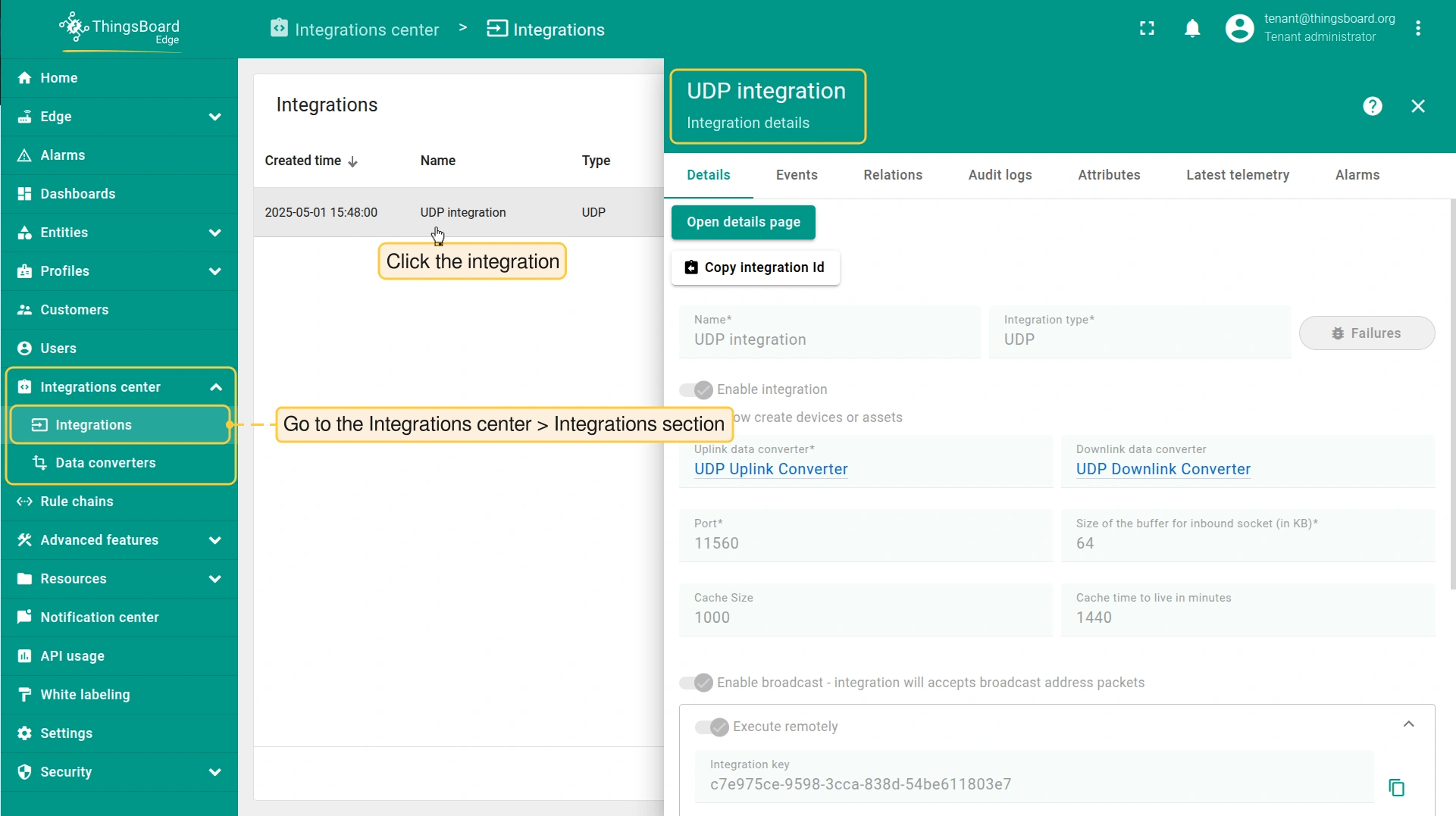

• Login to your ThingsBoard Edge instance and go to the Integrations center > Integrations section. Confirm the UDP integration on the Edge.

Installing and running external UDP Integration

To install the remote UDP Integration service on a local or separate machine, select the corresponding platform.

Use the Integration key and Integration secret to complete the UDP Integration configuration.

1
docker pull thingsboard/tb-pe-tcp-udp-integration:4.0.1PE

1
mkdir -p ~/.tb-pe-tcp-udp-integration-logs && sudo chown -R 799:799 ~/.tb-pe-tcp-udp-integration-logs

1
2
3
4
docker run -it -p 11560:11560/udp -v ~/.tb-pe-tcp-udp-integration-logs:/var/log/tb-tcp-udp-integration  \-e "RPC_HOST=mytbedge" -e "RPC_PORT=9090" \
-e "INTEGRATION_ROUTING_KEY=YOUR_ROUTING_KEY"  -e "INTEGRATION_SECRET=YOUR_SECRET" \
--name my-tb-pe-tcp-udp-integration --network NETWORK_NAME \
--restart always thingsboard/tb-pe-tcp-udp-integration:4.0.1PE

1
docker attach my-tb-pe-tcp-udp-integration

1
docker stop my-tb-pe-tcp-udp-integration

1
docker start my-tb-pe-tcp-udp-integration

1
127.0.1.1:53: cannot unmarshal DNS message

1
docker volume create tb-pe-tcp-udp-integration-logs

1
2
3
4
docker run -it -p 11560:11560/udp -v tb-pe-tcp-udp-integration-logs:/var/log/tb-tcp-udp-integration `-e "RPC_HOST=mytbedge" -e "RPC_PORT=9090" `
-e "INTEGRATION_ROUTING_KEY=YOUR_ROUTING_KEY"  -e "INTEGRATION_SECRET=YOUR_SECRET" `
--name my-tb-pe-tcp-udp-integration --network edge_docker_default `
--restart always thingsboard/tb-pe-tcp-udp-integration:4.0.1PE

1
docker attach my-tb-pe-tcp-udp-integration

1
docker stop my-tb-pe-tcp-udp-integration

1
docker start my-tb-pe-tcp-udp-integration

1
127.0.1.1:53: cannot unmarshal DNS message

1
sudo apt update && sudo apt install openjdk-17-jdk-headless

1
sudo update-alternatives --config java

1
java -version

1
2
3
openjdk version "17.x.xx"
OpenJDK Runtime Environment (...)
OpenJDK 64-Bit Server VM (...)

1
wget https://dist.thingsboard.io/tb-tcp-udp-integration-4.0.1pe.deb

1
sudo dpkg -i tb-tcp-udp-integration-4.0.1pe.deb

1
sudo nano /etc/tb-tcp-udp-integration/conf/tb-tcp-udp-integration.conf

1
2
3
4
5
# UNCOMMENT NEXT LINES AND PUT YOUR CONNECTION PARAMETERS:
# export RPC_HOST=thingsboard.cloud
# export RPC_PORT=9090
# export INTEGRATION_ROUTING_KEY=YOUR_INTEGRATION_KEY
# export INTEGRATION_SECRET=YOUR_INTEGRATION_SECRET

1
2
3
4
5
# UNCOMMENT NEXT LINES AND PUT YOUR CONNECTION PARAMETERS:
export RPC_HOST=127.0.0.1 # THE IP ADDRESS OF YOUR EDGE INSTANCE
export RPC_PORT=9090
export INTEGRATION_ROUTING_KEY=b75**************************34d
export INTEGRATION_SECRET=vna**************mik

1
sudo service tb-tcp-udp-integration start

1
sudo nano /etc/tb-tcp-udp-integration/conf/tb-tcp-udp-integration.conf

1
sudo dnf install java-17-openjdk-headless

1
sudo update-alternatives --config java

1
java -version

1
2
3
openjdk version "17.x.xx"
OpenJDK Runtime Environment (...)
OpenJDK 64-Bit Server VM (build ...)

1
wget https://dist.thingsboard.io/tb-tcp-udp-integration-4.0.1pe.rpm

1
sudo rpm -Uvh tb-tcp-udp-integration-4.0.1pe.rpm

1
sudo nano /etc/tb-tcp-udp-integration/conf/tb-tcp-udp-integration.conf

1
2
3
4
5
# UNCOMMENT NEXT LINES AND PUT YOUR CONNECTION PARAMETERS:
# export RPC_HOST=thingsboard.cloud
# export RPC_PORT=9090
# export INTEGRATION_ROUTING_KEY=YOUR_INTEGRATION_KEY
# export INTEGRATION_SECRET=YOUR_INTEGRATION_SECRET

1
2
3
4
5
# UNCOMMENT NEXT LINES AND PUT YOUR CONNECTION PARAMETERS:
export RPC_HOST=127.0.0.1 # THE IP ADDRESS OF YOUR EDGE INSTANCE
export RPC_PORT=9090
export INTEGRATION_ROUTING_KEY=b75**************************34d
export INTEGRATION_SECRET=vna**************mik

1
sudo service tb-tcp-udp-integration start

1
sudo nano /etc/tb-tcp-udp-integration/conf/tb-tcp-udp-integration.conf

Send an uplink message

Once the ThingsBoard UDP Integration has been created, the UDP server starts, and then it waits for data from the devices.

Before you proceed, ensure that the Debug mode is enabled.

Select the device payload type to send the uplink message:

1
echo -e 'SN-001,default,temperature,25.7,humidity,69' | nc -w5 -u 127.0.0.1 11560

1
echo -e -n '{"deviceName": "SN-001", "deviceType": "default", "temperature": 25.7, "humidity": 69}' | nc -w60 -u 127.0.0.1 11560

1
echo -e -n '\x53\x4e\x2d\x30\x30\x31\x64\x65\x66\x61\x75\x6c\x74\x32\x35\x2e\x37\x36\x39' | nc -w5 -u 127.0.0.1 11560

1
echo -e -n '534e2d30303164656661756c7432352e373639' | xxd -r -p | nc -w5 -u 127.0.0.1 11560

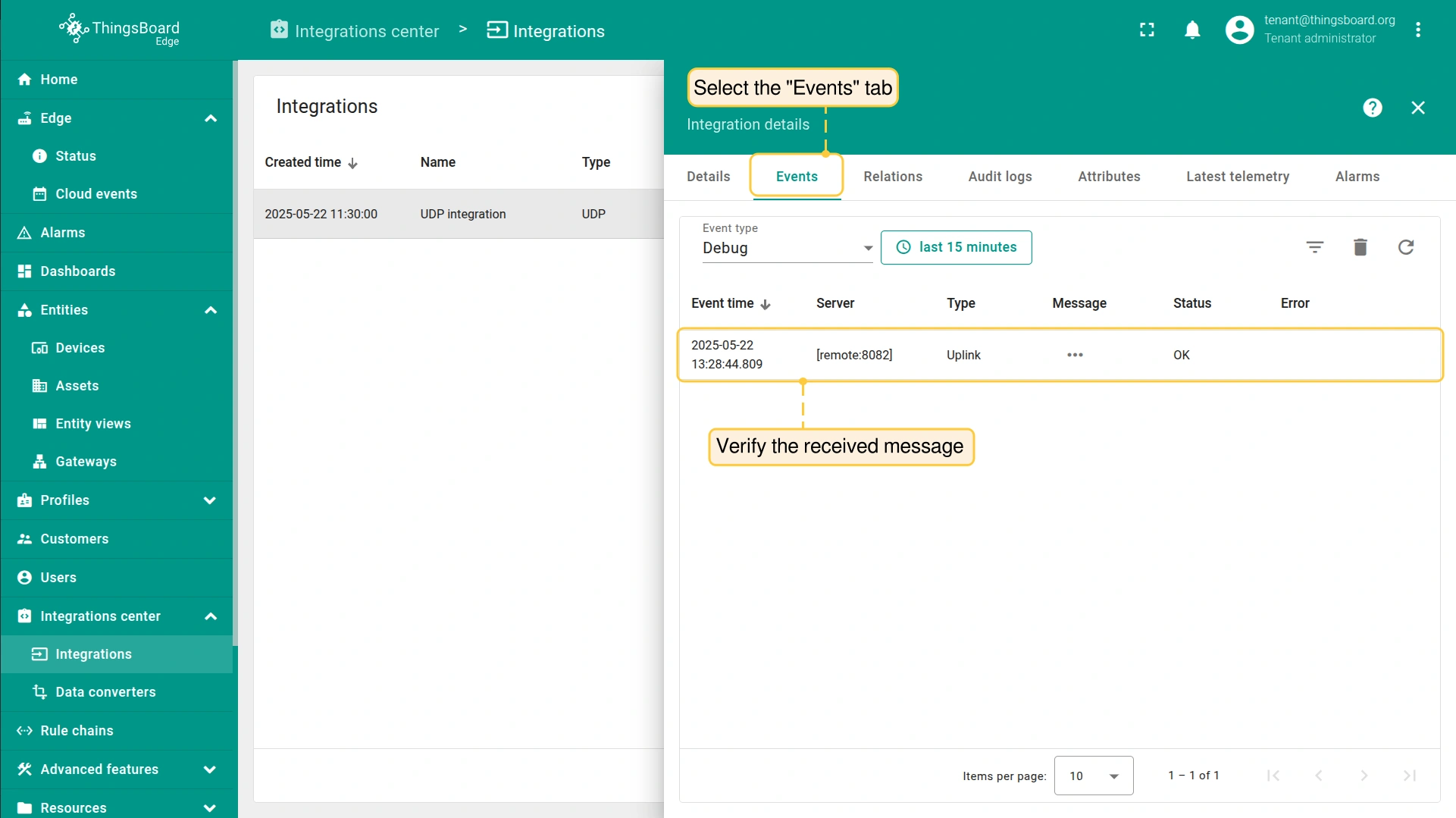

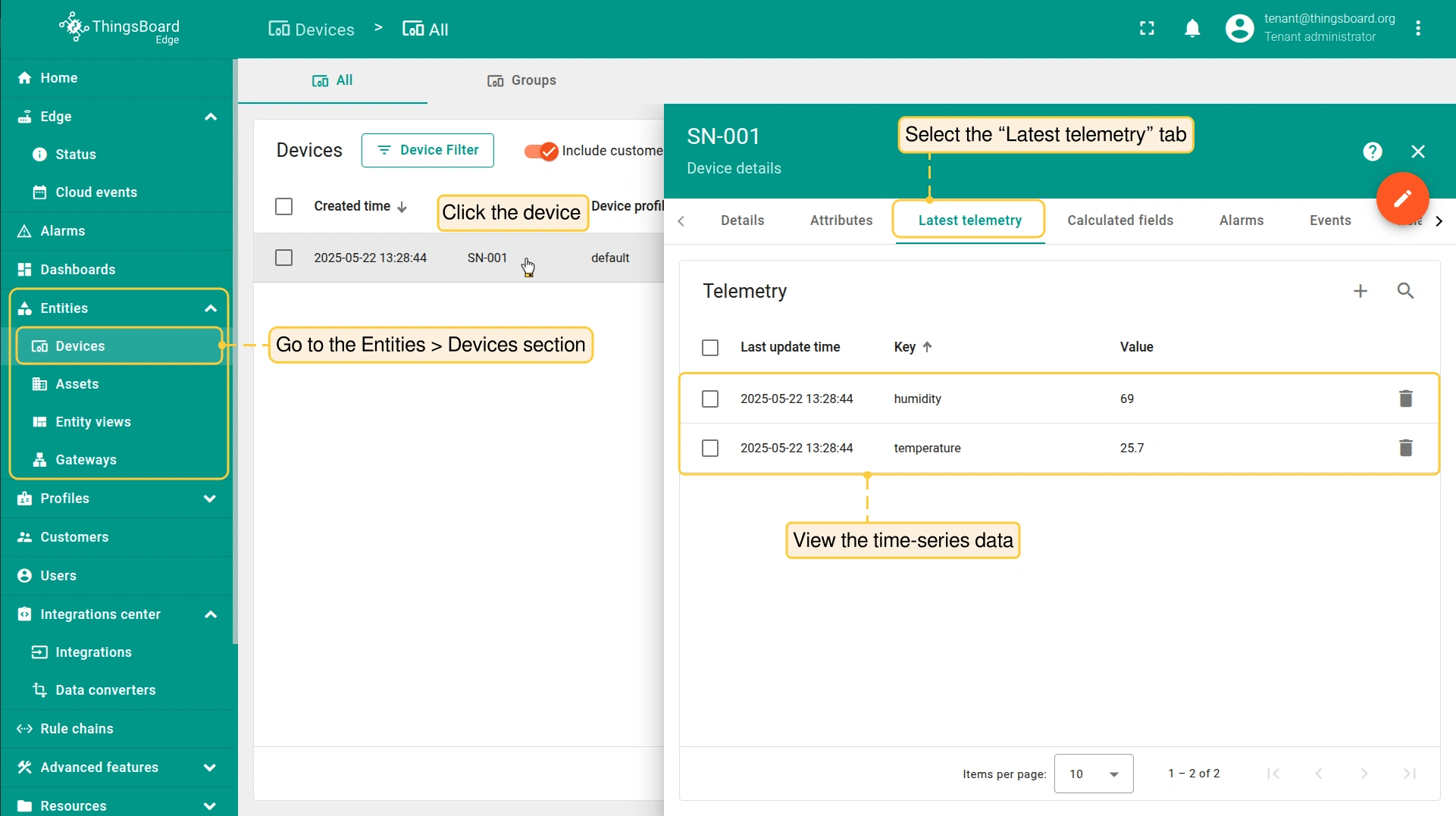

To view the received time-series data, go to the Entities > Devices section, click the device and select the “Latest telemetry” tab:

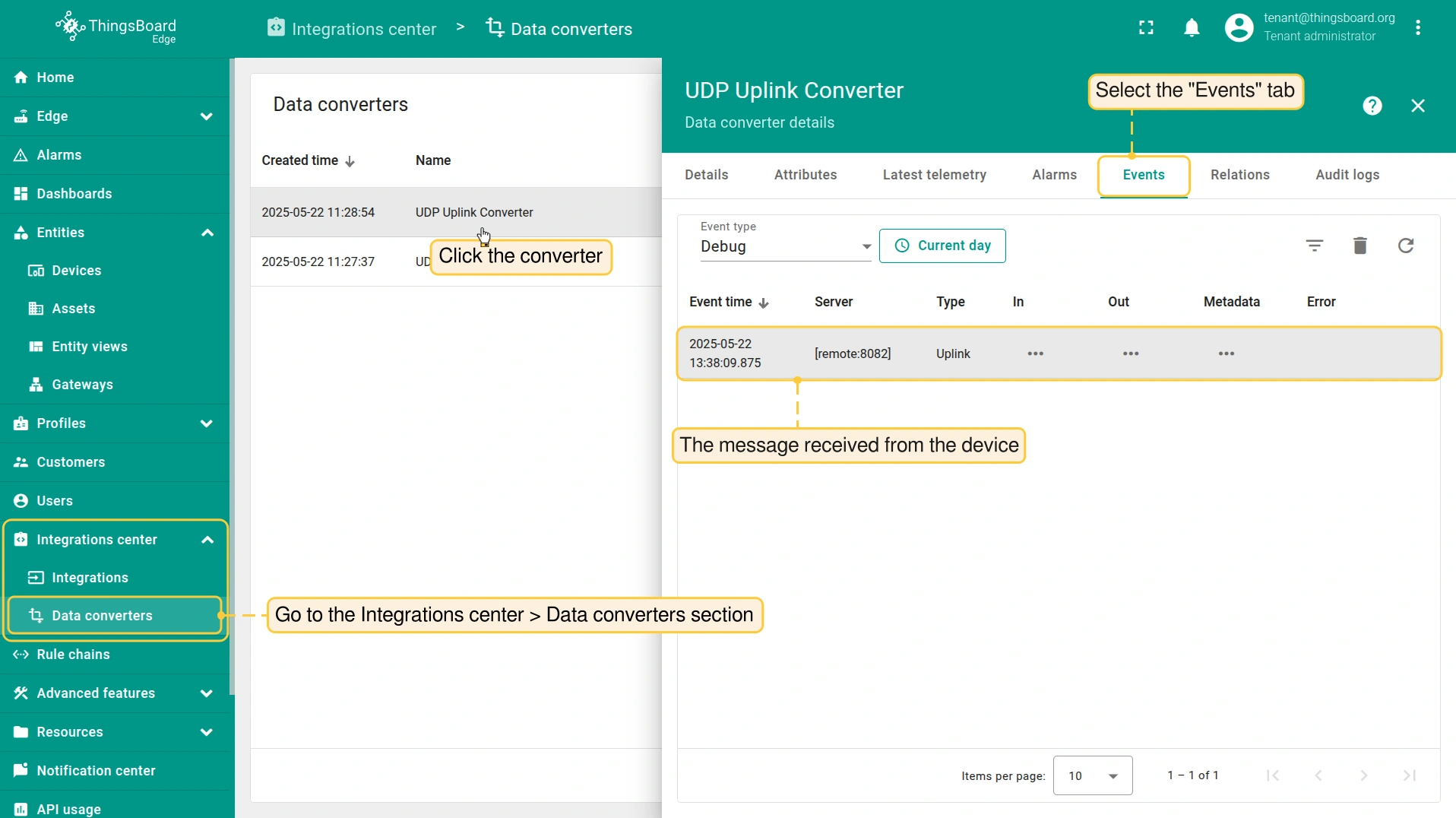

The received data can be viewed in the Uplink converter:

• Go to the Integrations center > Data converters section and click the Uplink converter.
• On the “Data converter details” page, select the “Events” tab.

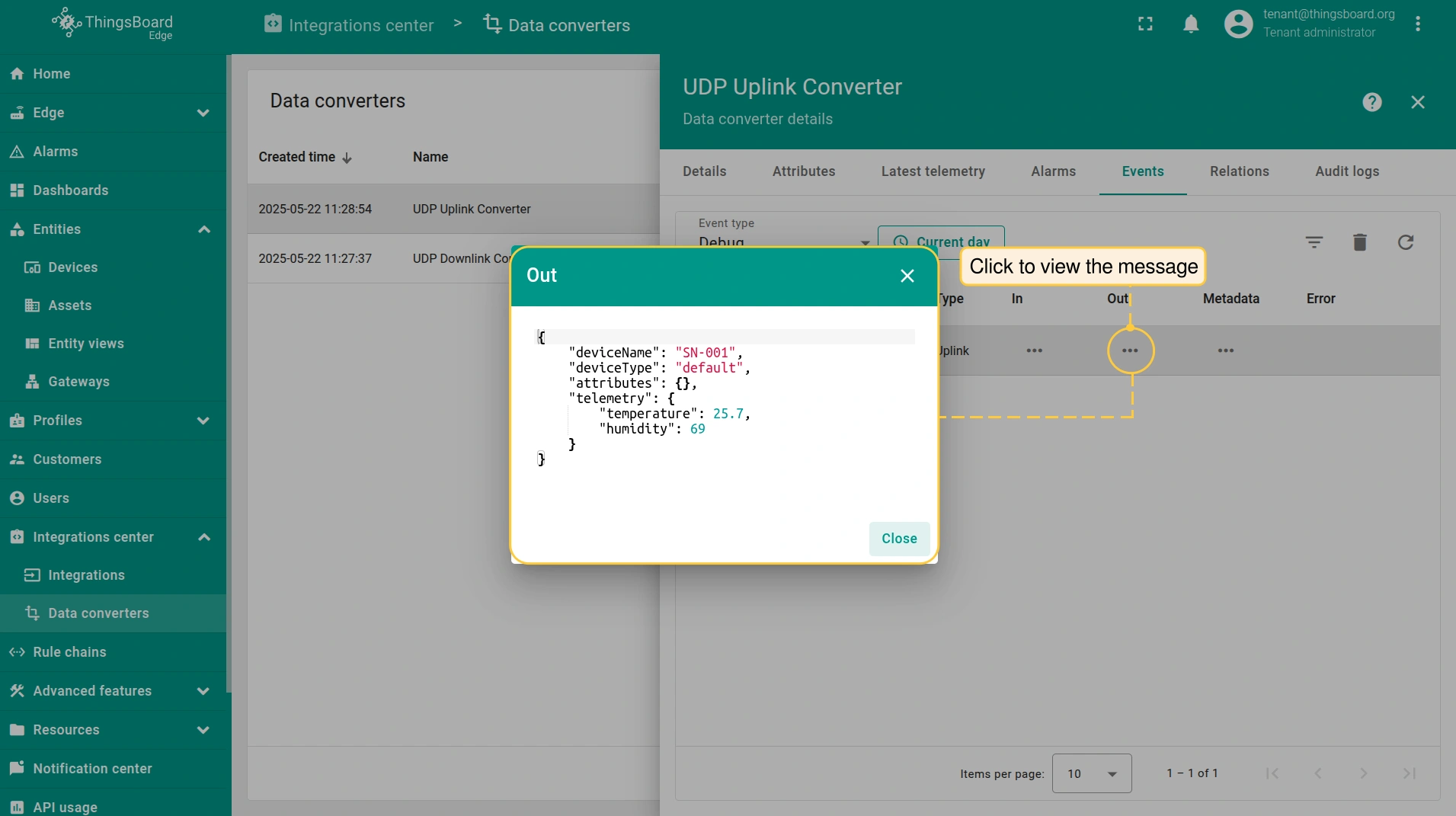

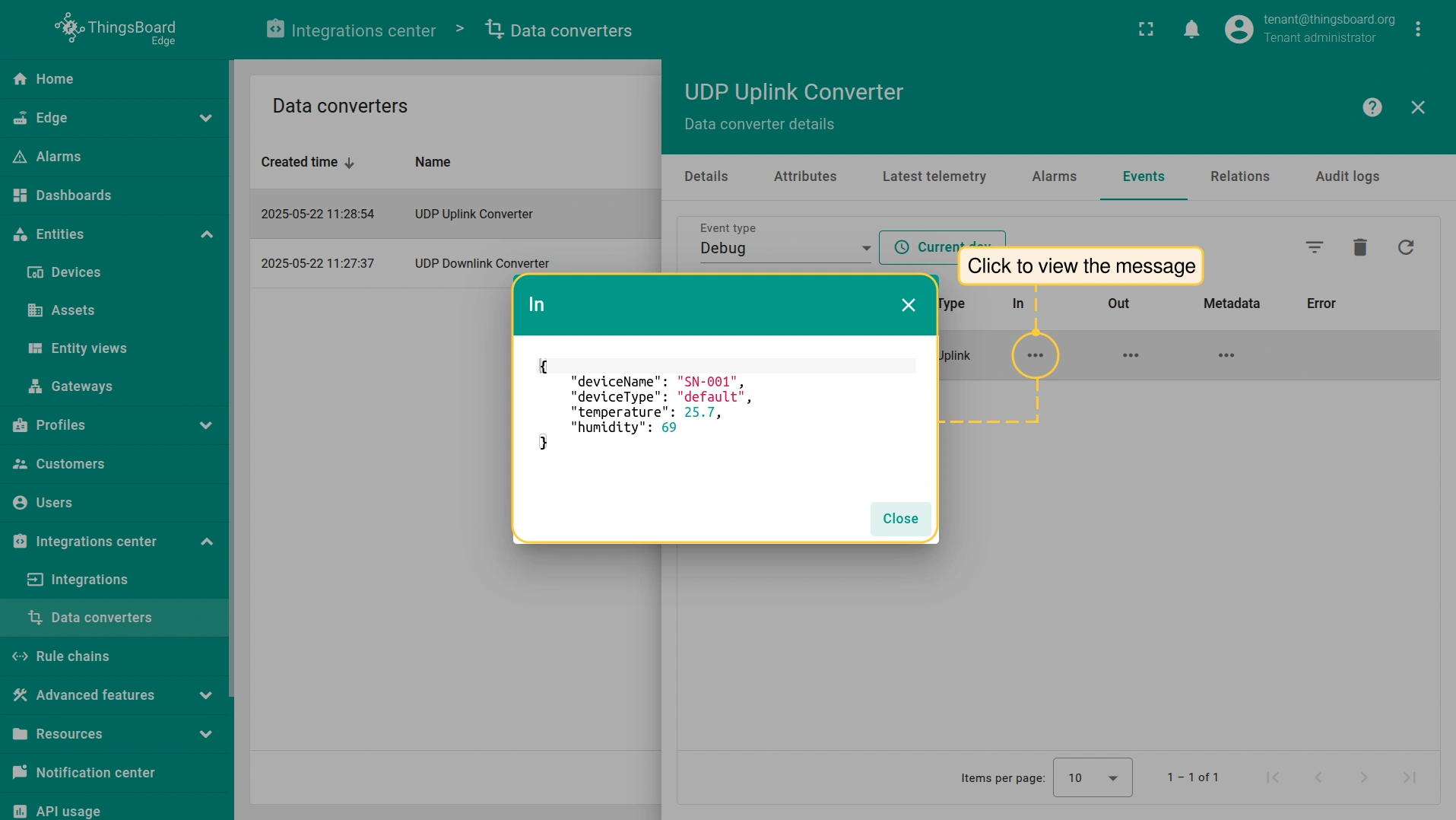

• View the message details in the “In” and “Out” columns.

Send the downlink message

To view the downlink response, send another message to the UDP integration. Use the uplink command, but replace the -w1 parameter with -q120. These changes will cause the nc utility to wait 120 seconds for the downlink message.

1
echo -e 'SN-001,default,temperature,25.7,humidity,69' | nc -q120 -u 127.0.0.1 11560

1
echo -e -n '{"deviceName": "SN-001", "deviceType": "default", "temperature": 25.7, "humidity": 69}' | nc -q120 -u 127.0.0.1 11560

1
echo -e -n '\x53\x4e\x2d\x30\x30\x31\x64\x65\x66\x61\x75\x6c\x74\x32\x35\x2e\x37\x36\x39' | nc -q120 -u 127.0.0.1 11560

1
echo -e -n '534e2d30303164656661756c7432352e373639' | xxd -r -p | nc -q120 -u 127.0.0.1 11560

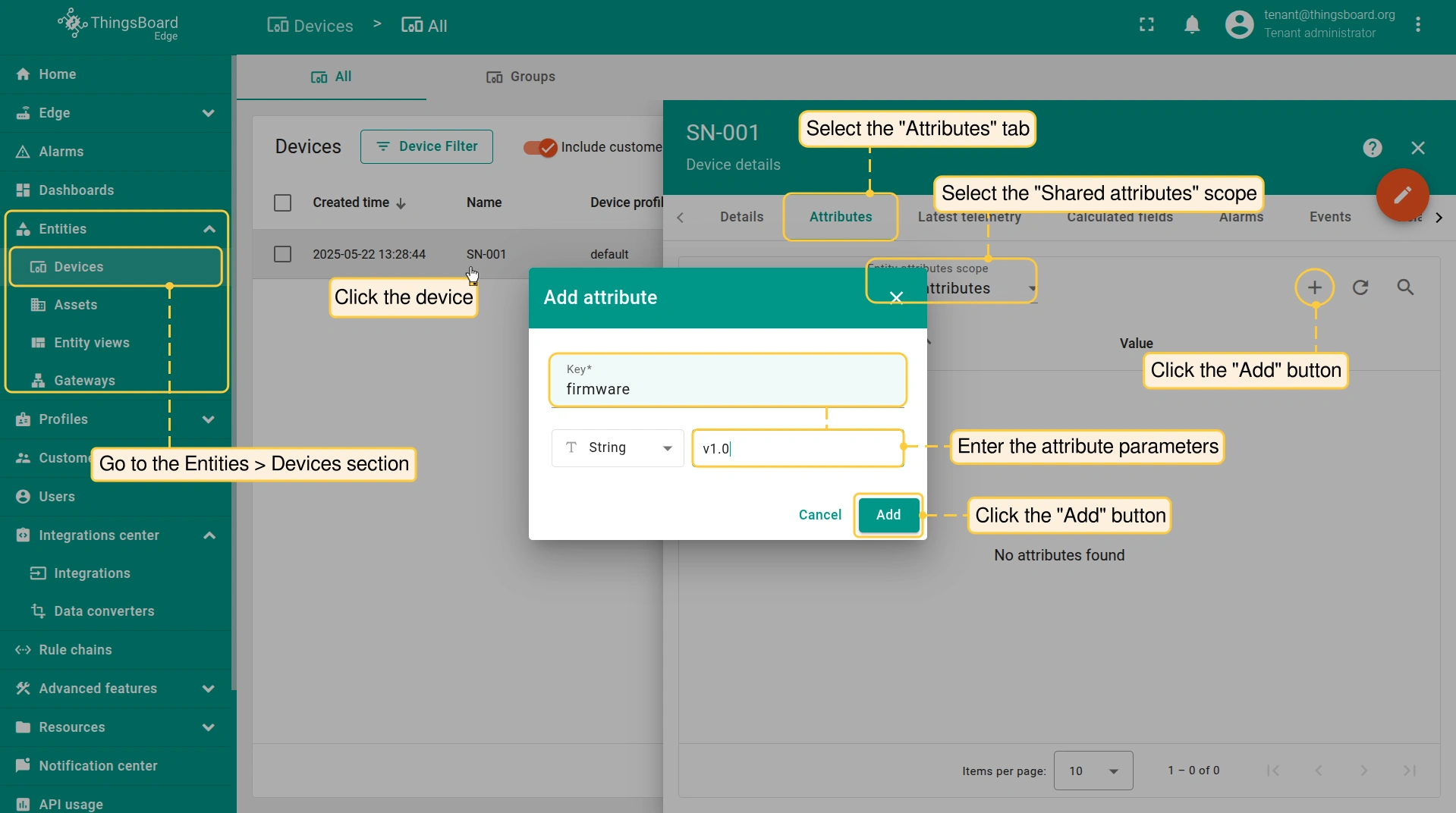

After sending the uplink command, you have 120 seconds to add a shared firmware attribute:

• Go to the Entities > Devices section, click the device to open the “Device details” page.
• Select the “Attributes” tab and the “Shared attributes” scope.
• To add the firmware attribute, click the “Add” button and enter the configuration parameters.

To confirm the downlink message sent to the device, go to the Integrations center > Integrations section, click the UDP integration and select the “Events” tab:

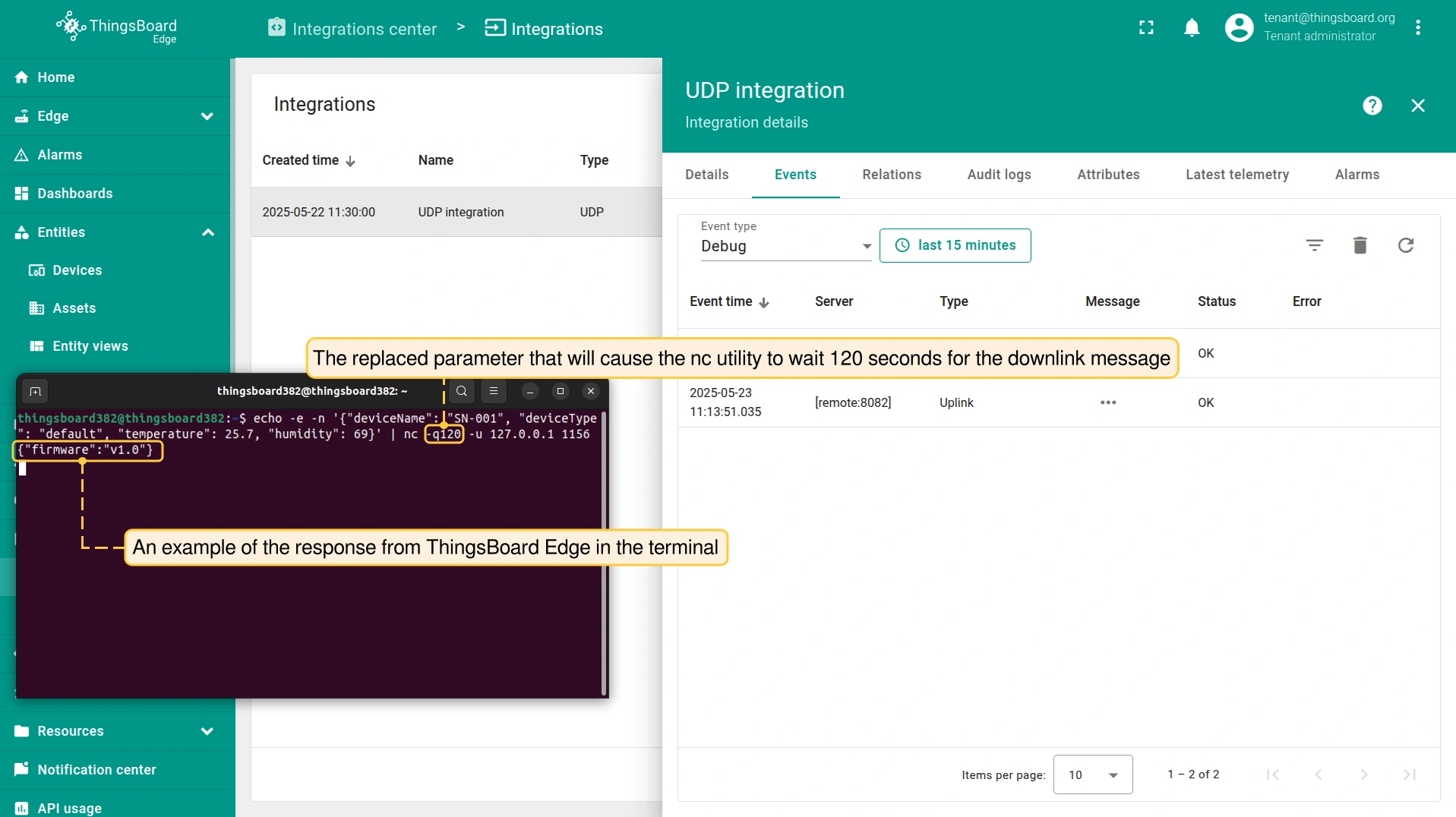

The example of the message sent to the device and the response from ThingsBoard Edge in the terminal:

Next steps

• Getting started guide - Provide quick overview of main ThingsBoard Edge features. Designed to be completed in 15-30 minutes:

• Installation guides - Learn how to setup ThingsBoard Edge on various available operating systems and connect to ThingsBoard Server.

• Edge Rule Engine:

  • Rule Chain Templates - Learn how to use ThingsBoard Edge Rule Chain Templates.

  • Provision Rule Chains from cloud to edge - Learn how to provision edge rule chains from cloud to edge.

• Security:
  • gRPC over SSL/TLS - Learn how to configure gRPC over SSL/TLS for communication between edge and cloud.

• Features:

  • Edge Status - Learn about Edge Status page on ThingsBoard Edge.

  • Cloud Events - Learn about Cloud Events page on ThingsBoard Edge.

• Use cases:

  • Manage alarms and RPC requests on edge devices - This guide will show how to generate local alarms on the edge and send RPC requests to devices connected to edge:

  • Data filtering and traffic reduce - This guide will show how to send to cloud from edge only filterd amount of device data:

• Roadmap - ThingsBoard Edge roadmap.
