Remote Integrations

Introduction

It is possible to execute any ThingsBoard Integration remotely from main ThingsBoard Edge instance. This guide contains step-by-step instructions how to launch ThingsBoard integration remotely. For example, we will launch HTTP integration and push data over remote HTTP integration to ThingsBoard Edge.

See deployment options for more general information.

Prerequisites

We assume you already have a ThingsBoard Edge instance up and running, and connected to the Server.

ThingsBoard Server configuration steps

Converter and Integration templates are created on the Server, so please log in as Tenant administrator to the Server instance.

Before creating the Integration template, you need to create an Uplink converter template in Converters templates page. Uplink is necessary in order to convert the incoming data from the device into the required format for displaying them in ThingsBoard Edge. Click on the ‘plus’ and on ‘Create new converter’. To view the events, enable Debug. In the function decoder field, specify a script to parse and transform data.

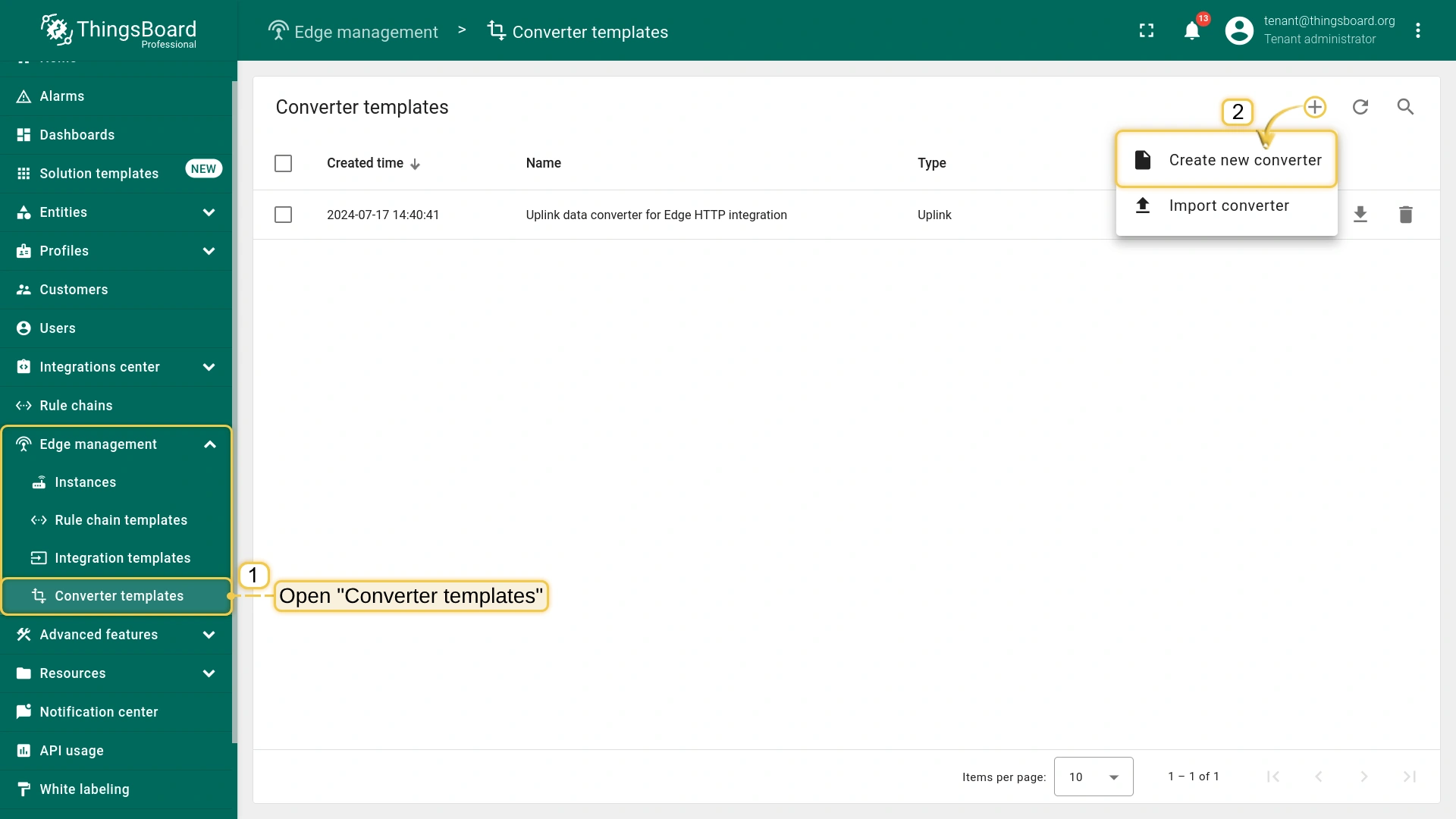

1. Open <b>Converter templates</b> menu page. 2. Click <b>("+")</b> icon and select <b>Create new converter</b>.
1. Open Converter templates menu page. 2. Click ("+") icon and select Create new converter.

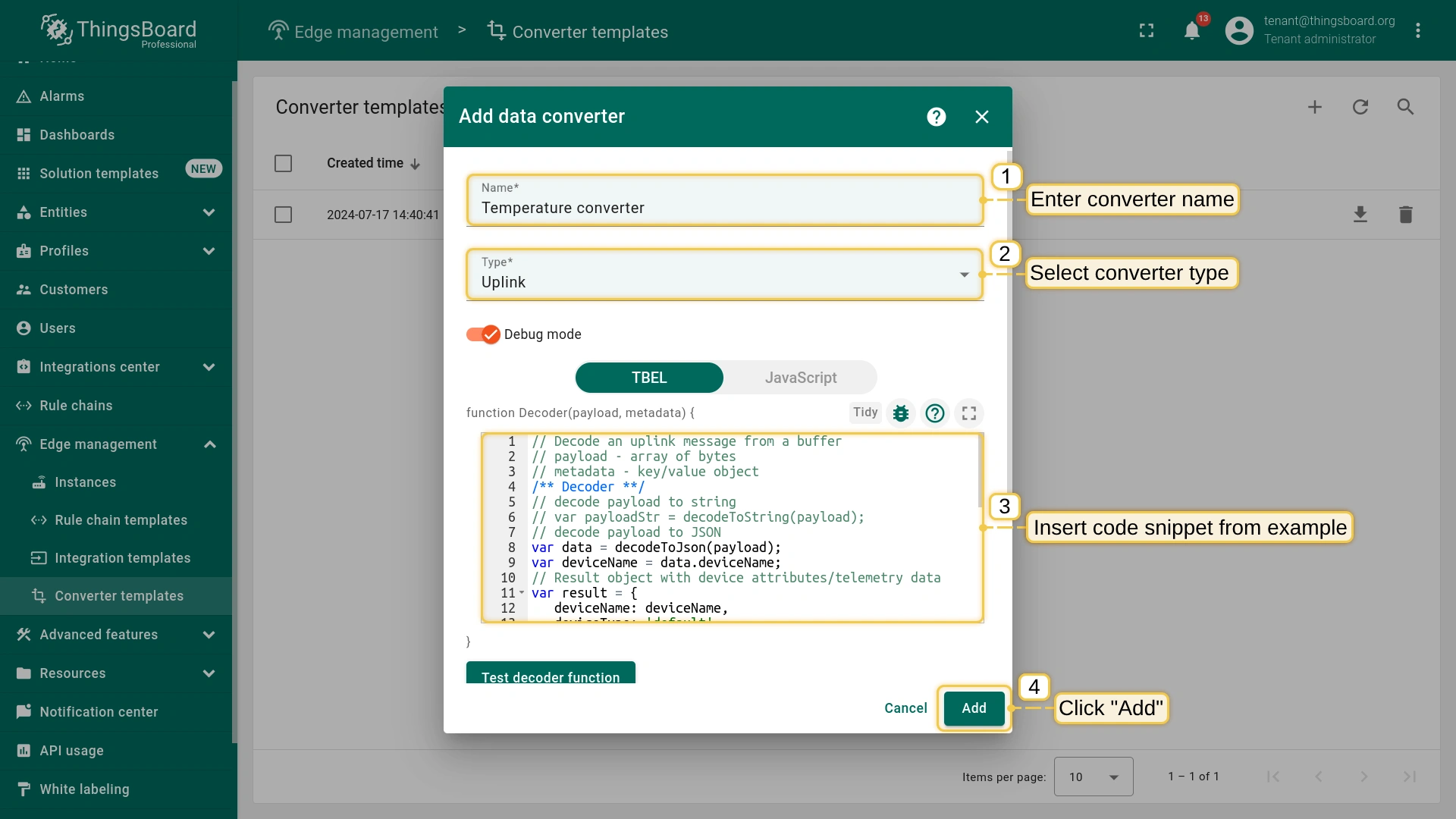

1. Enter the converter name, e.g., <b>Temperature converter</b>. 2. Select the converter type: <b>Uplink</b>. 3. Insert the code snippet from the example. 4. Click the <b>Add</b> button.
1. Enter the converter name, e.g., Temperature converter. 2. Select the converter type: Uplink. 3. Insert the code snippet from the example. 4. Click the Add button.
Doc info icon

While Debug mode is very useful for development and troubleshooting, leaving it enabled in production mode can significantly increase the disk space used by the database since all the debug data is stored there. It is highly recommended turning the Debug mode off after debugging is complete.

Example for the Uplink converter:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32

// Decode an uplink message from a buffer
// payload - array of bytes
// metadata - key/value object
/** Decoder **/
// decode payload to string
// var payloadStr = decodeToString(payload);
// decode payload to JSON
var data = decodeToJson(payload);
var deviceName = data.deviceName;
// Result object with device attributes/telemetry data
var result = {
   deviceName: deviceName,
   deviceType: 'default',
   attributes: {
       model: data.model,
   },
   telemetry: {
       temperature: data.temperature
   }
};
/** Helper functions **/
function decodeToString(payload) {
   return String.fromCharCode.apply(String, payload);
}
function decodeToJson(payload) {
   // covert payload to string.
   var str = decodeToString(payload);
   // parse string to JSON
   var data = JSON.parse(str);
   return data;
}
return result;

Step 2. Create Remote Integration

Now that the Uplink converter template has been created, it is possible to create an integration.

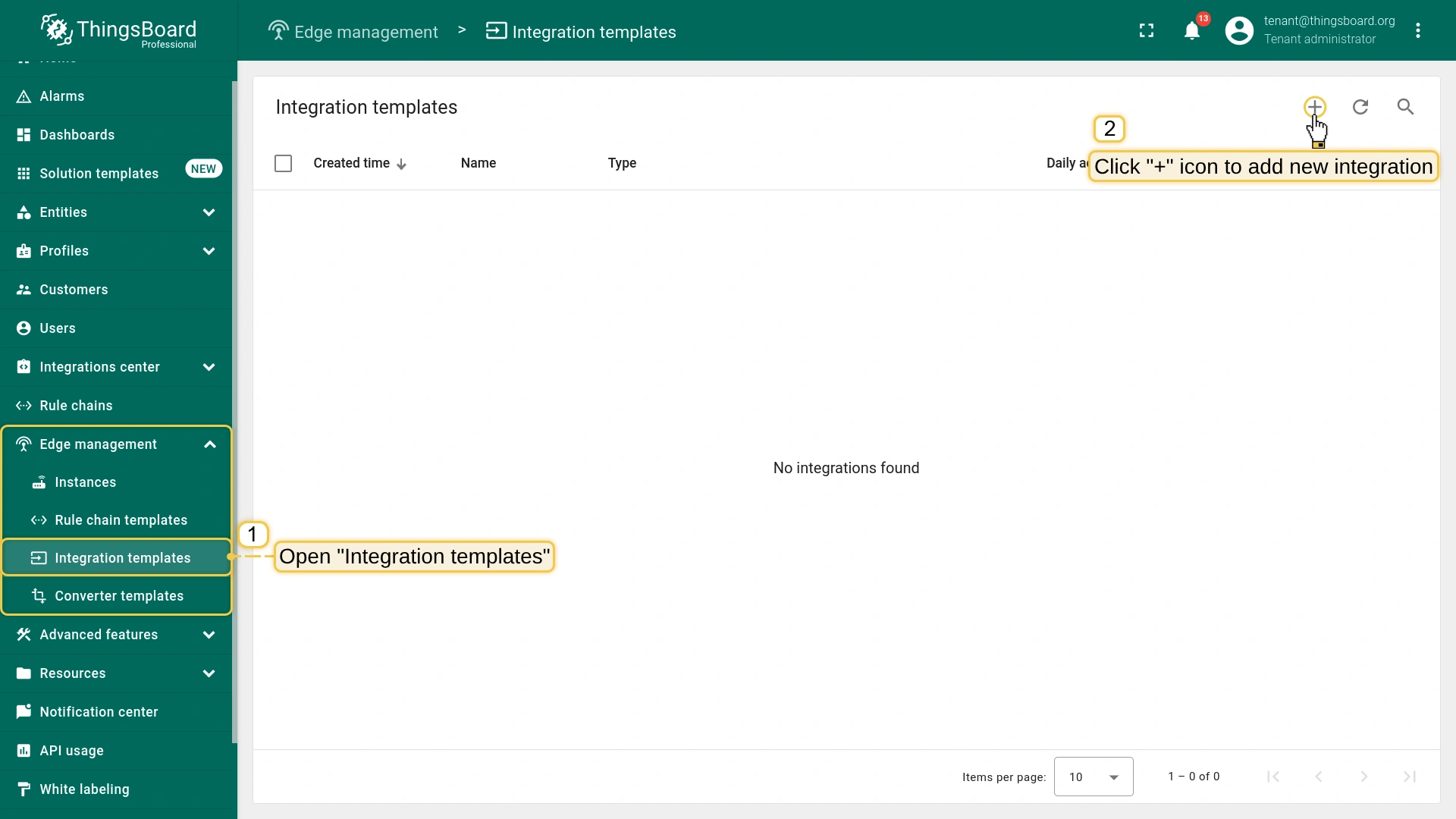

1. Open <b>Integration templates</b> menu page. 2. Click the <b>("+")</b> icon to add a new integration.
1. Open Integration templates menu page. 2. Click the ("+") icon to add a new integration.

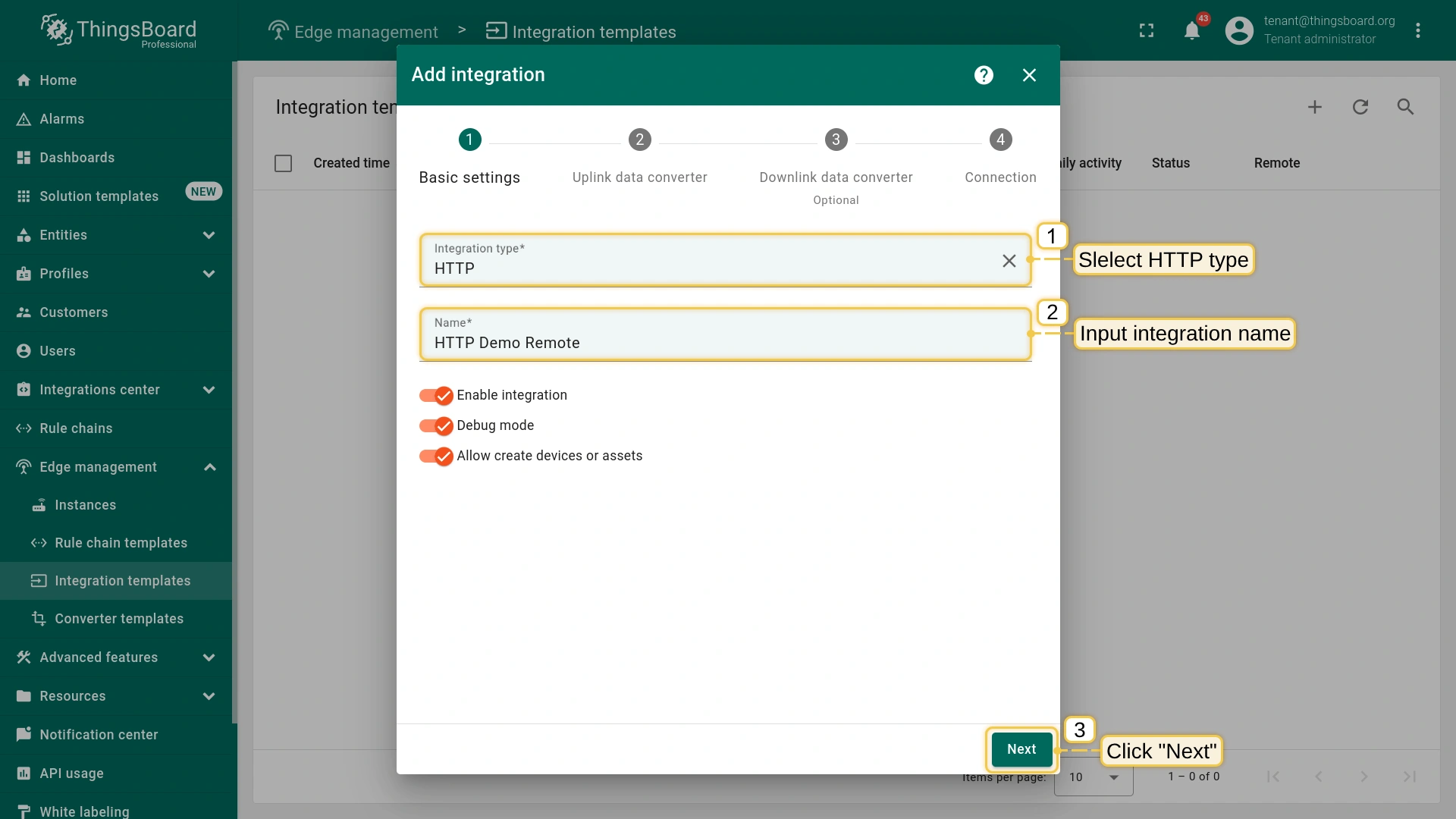

1. Select integration type: <b>HTTP</b>. 2. Input integration name, e.g., <b>HTTP Demo Remote</b>. 3. Click <b>Next</b> button.
1. Select integration type: HTTP. 2. Input integration name, e.g., HTTP Demo Remote. 3. Click Next button.

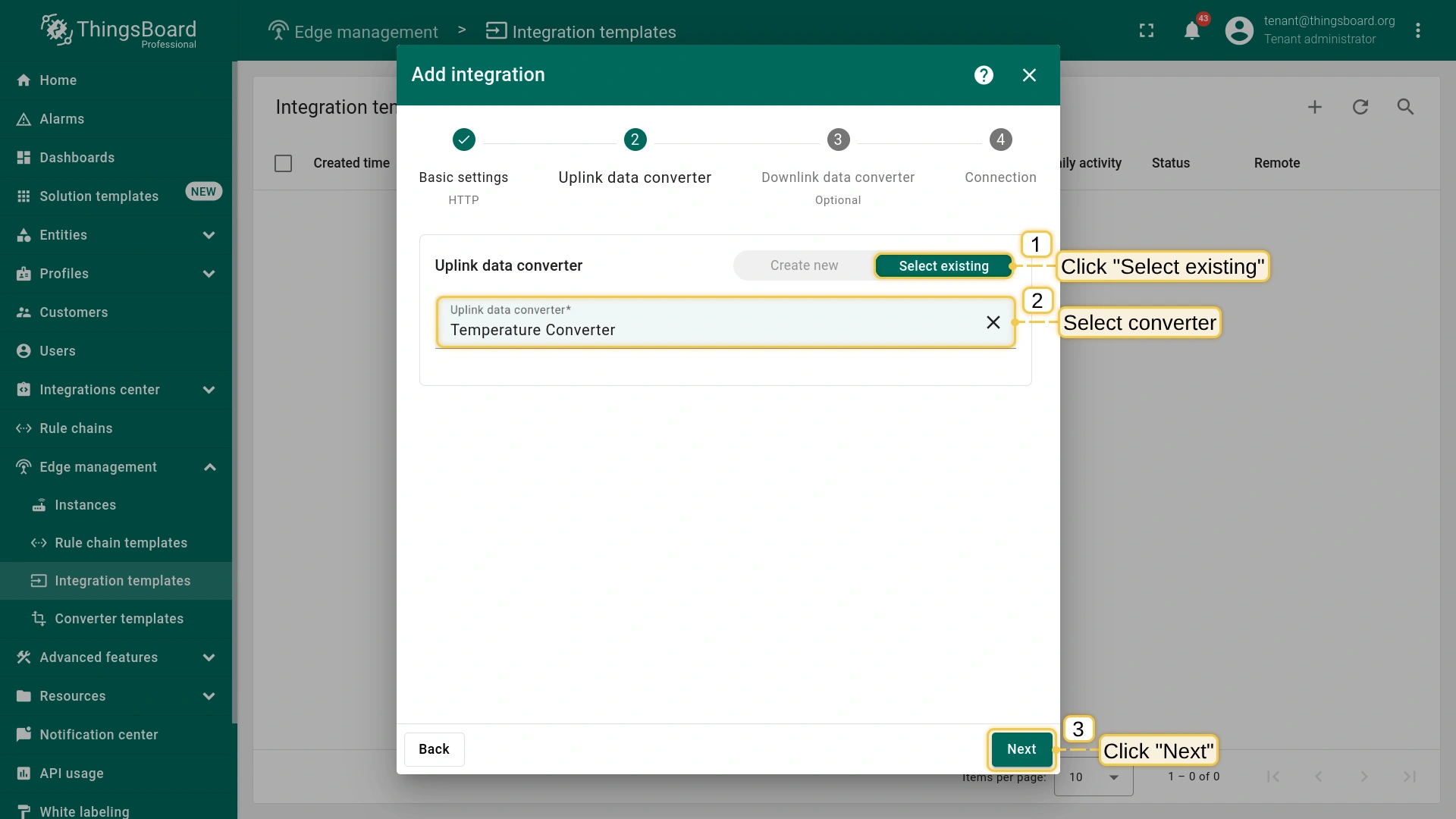

1. Click <b>Select existing</b> button. 2. Select uplink data converter: <b>Temperature Converter</b>. 3. Click <b>Next</b> button.
1. Click Select existing button. 2. Select uplink data converter: Temperature Converter. 3. Click Next button.
Enter the converter name, e.g., <b>Temperature converter</b>. 2. Select converter type: <b>Uplink</b>. 3. Insert the code snippet from the example. 4. Click the <b>Add</b> button.
Enter the converter name, e.g., Temperature converter. 2. Select converter type: Uplink. 3. Insert the code snippet from the example. 4. Click the Add button.

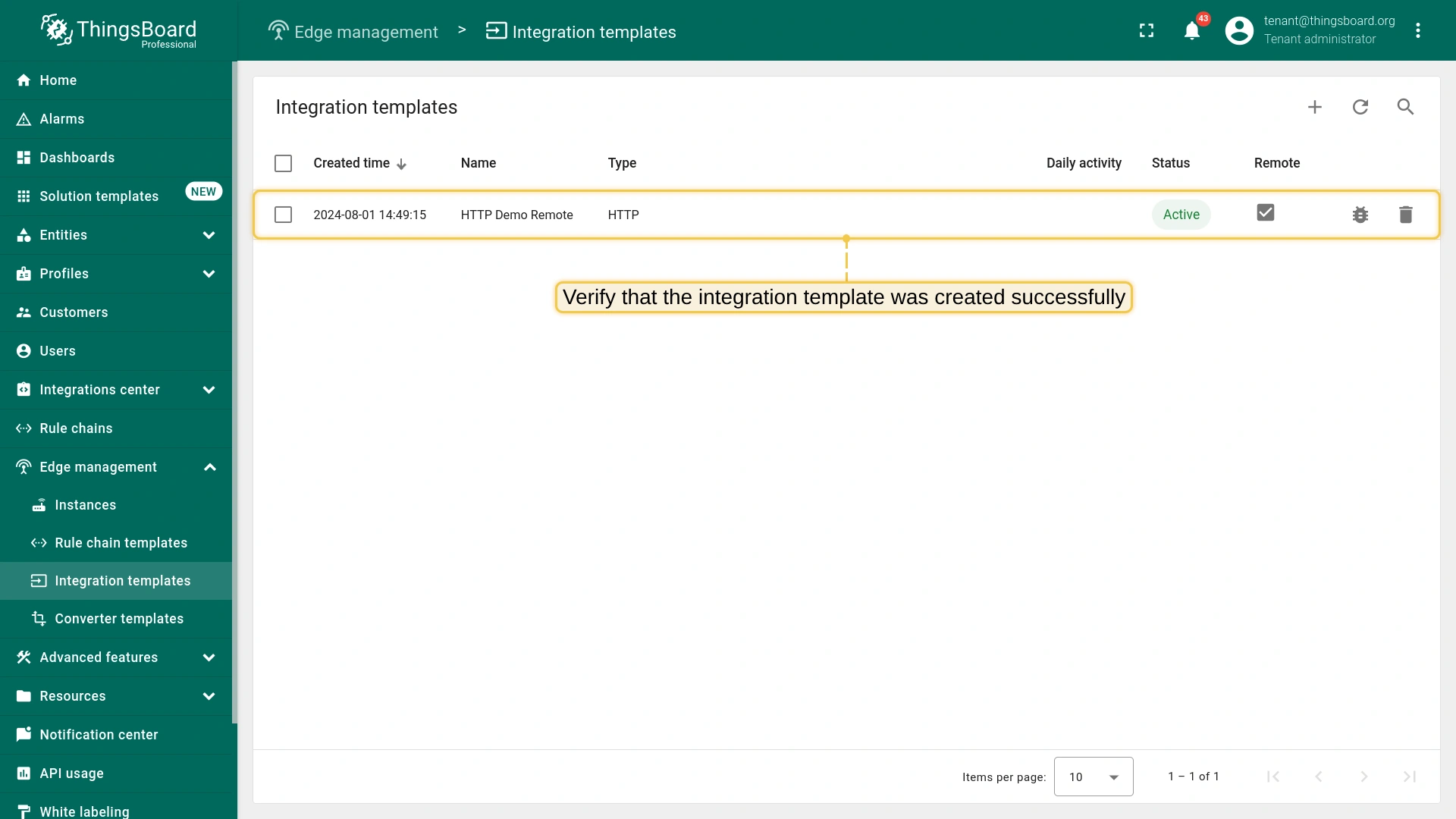

Verify that our <b>HTTP Demo Remote</b> integration template was created successfully.
Verify that our HTTP Demo Remote integration template was created successfully.

Step 3. Save Remote Integration credentials.

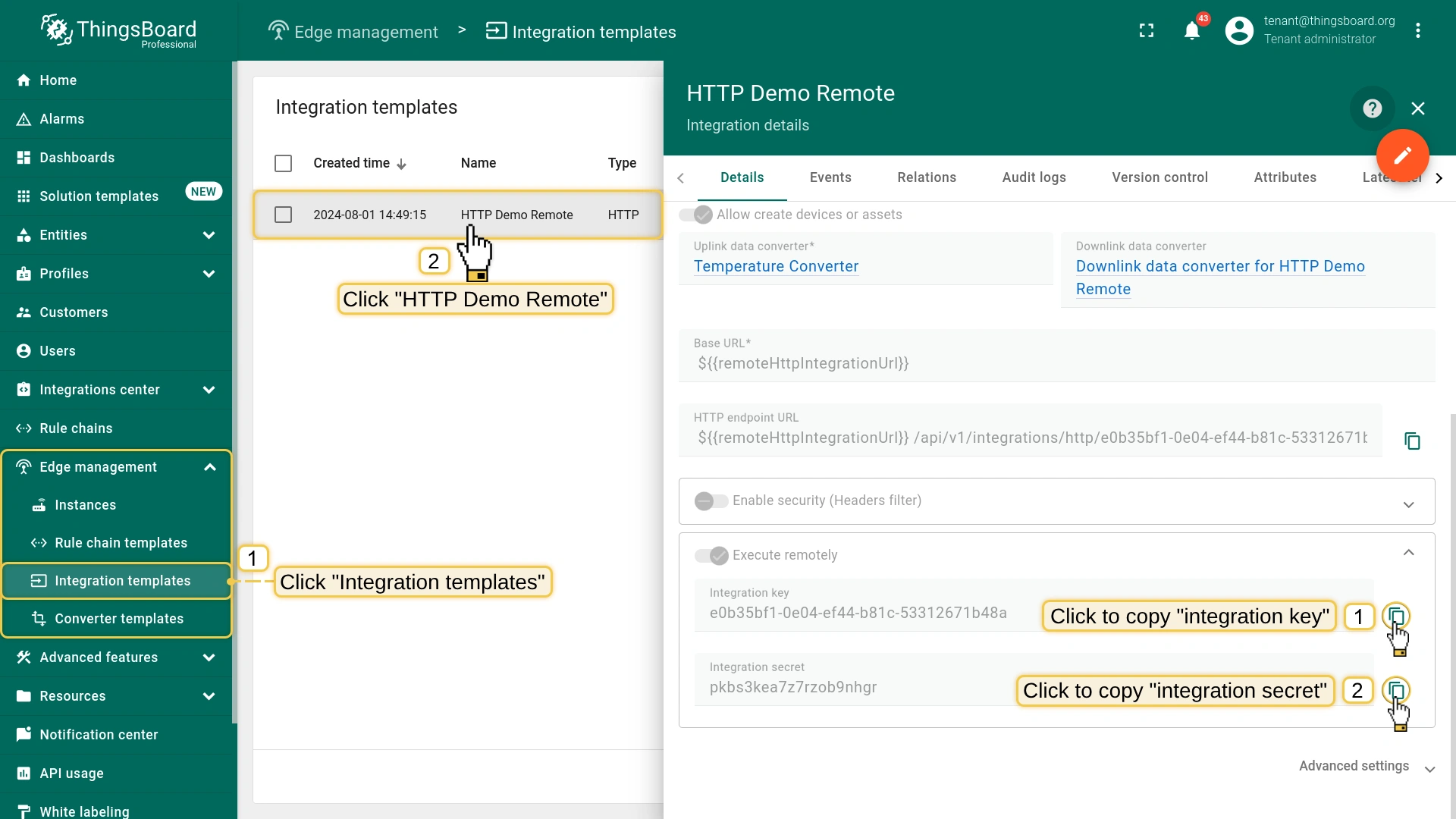

Let’s copy-paste the integration key and secret from the integration details, we’ll use them later during Remote integration installation steps.

1. Open the <b>Integration templates</b> menu page. 2. Click the integration template row. 3. Click to copy <b>Integration key</b>. 4. Click to copy <b>integration secret</b>.
1. Open the Integration templates menu page. 2. Click the integration template row. 3. Click to copy Integration key. 4. Click to copy integration secret.

Step 4. Assign Integration to Edge.

Once converter and integration templates are created, we can assign Integration template to Edge. Because we are using placeholder ${{remoteHttpIntegrationUrl}} in the integration configuration, we need to add attribute remoteHttpIntegrationUrl to edge first. You need to provide IP address and port of your HTTP remote integration as remoteHttpIntegrationUrl attribute. By default, remote HTTP integration uses 8082 port. We are going to use the same port in the demo, and IP address is going to be set as IP of the machine where remote integration service is going to be started. Once attribute added, we are ready to assign integration and verify that it’s added.

  • 1. Open Instances menu page. 2. Click on My New Edge.
  • 1. Click Attributes tab. 2. Click ("+") icon to add new attribute.
  • 1. Enter remoteHttpIntegrationUrl attribute. 2. Set the remote value for your HTTP integration http://IP:port. 3. Click Add button.
  • Open Instances menu page.
  • Click Manage edge integrations.
  • Click ("+") icon.
  • 1. Select the target integration. 2. Click Assign button.
  • Open Edge instance. 1. Open the Integrations menu page 2. Click on HTTP Demo Remote. 3. Check that placeholder is substituted with the value of the attribute.
1. Open <b>Instances</b> menu page. 2. Click on <b>My New Edge</b>.
1. Open Instances menu page. 2. Click on My New Edge.

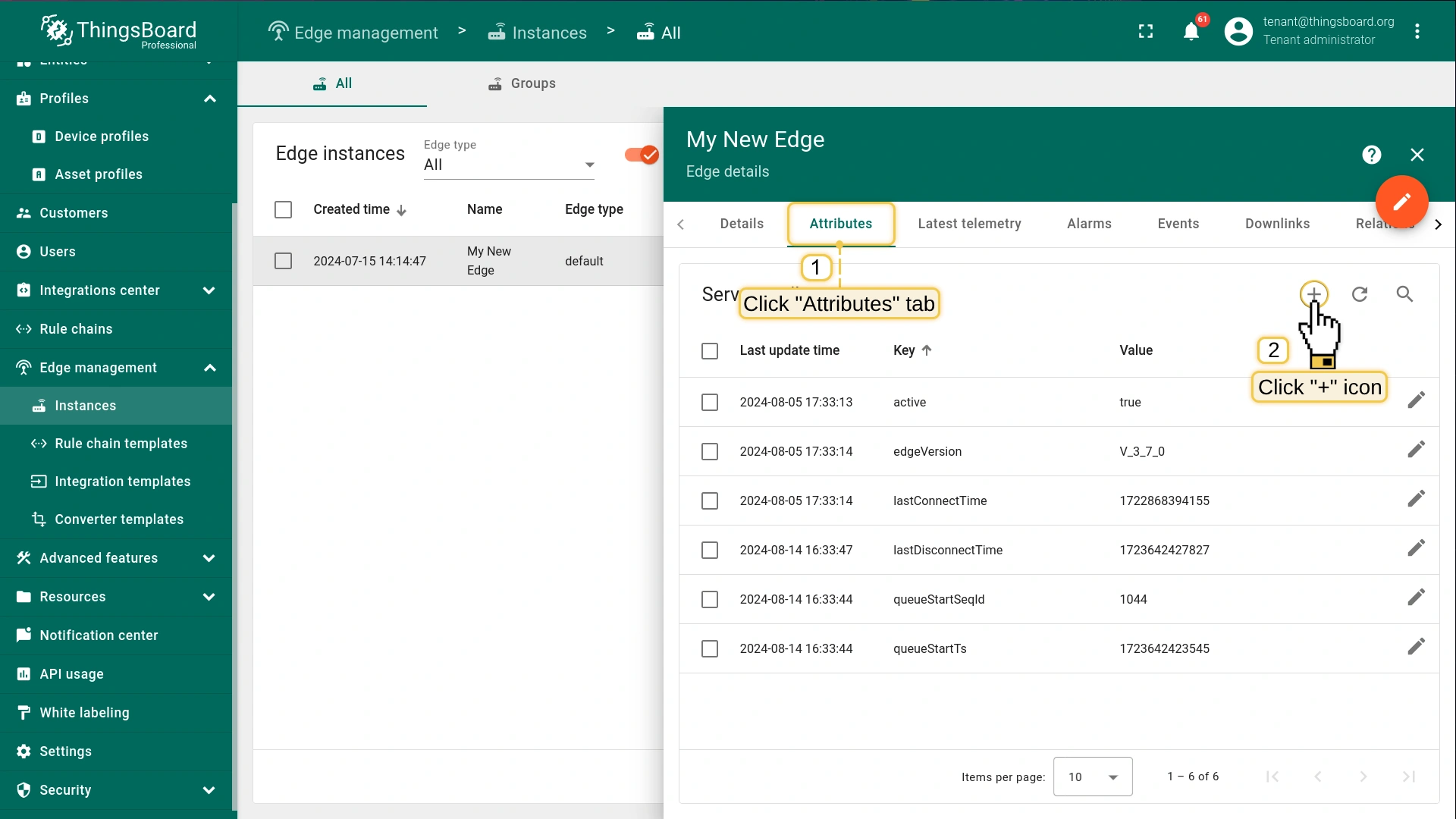

1. Click <b>Attributes</b> tab. 2. Click <b>("+")</b> icon to add new attribute.
1. Click Attributes tab. 2. Click ("+") icon to add new attribute.

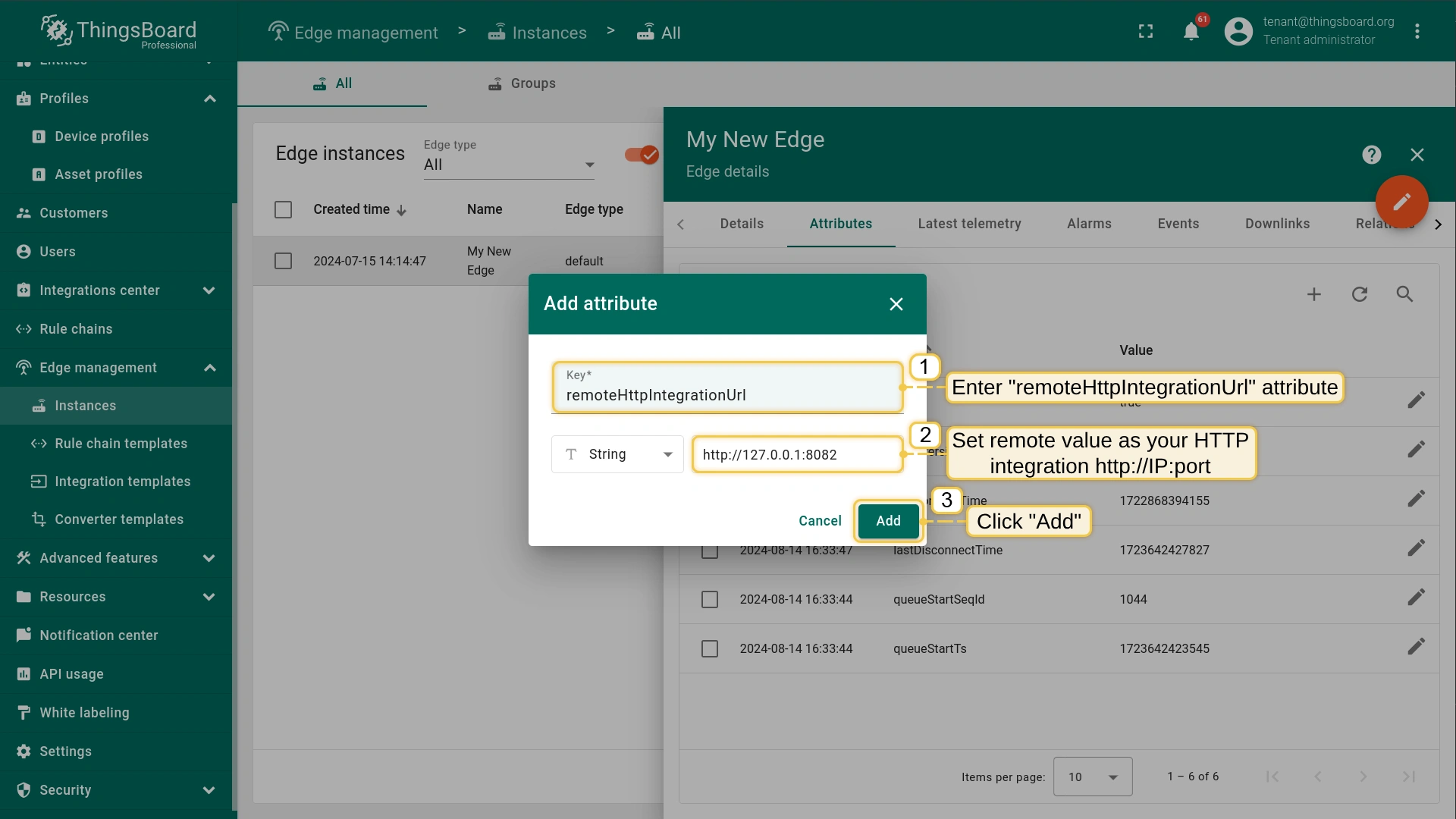

1. Enter <b>remoteHttpIntegrationUrl</b> attribute. 2. Set the remote value for your HTTP integration <b>http://IP:port</b>. 3. Click <b>Add</b> button.
1. Enter remoteHttpIntegrationUrl attribute. 2. Set the remote value for your HTTP integration http://IP:port. 3. Click Add button.

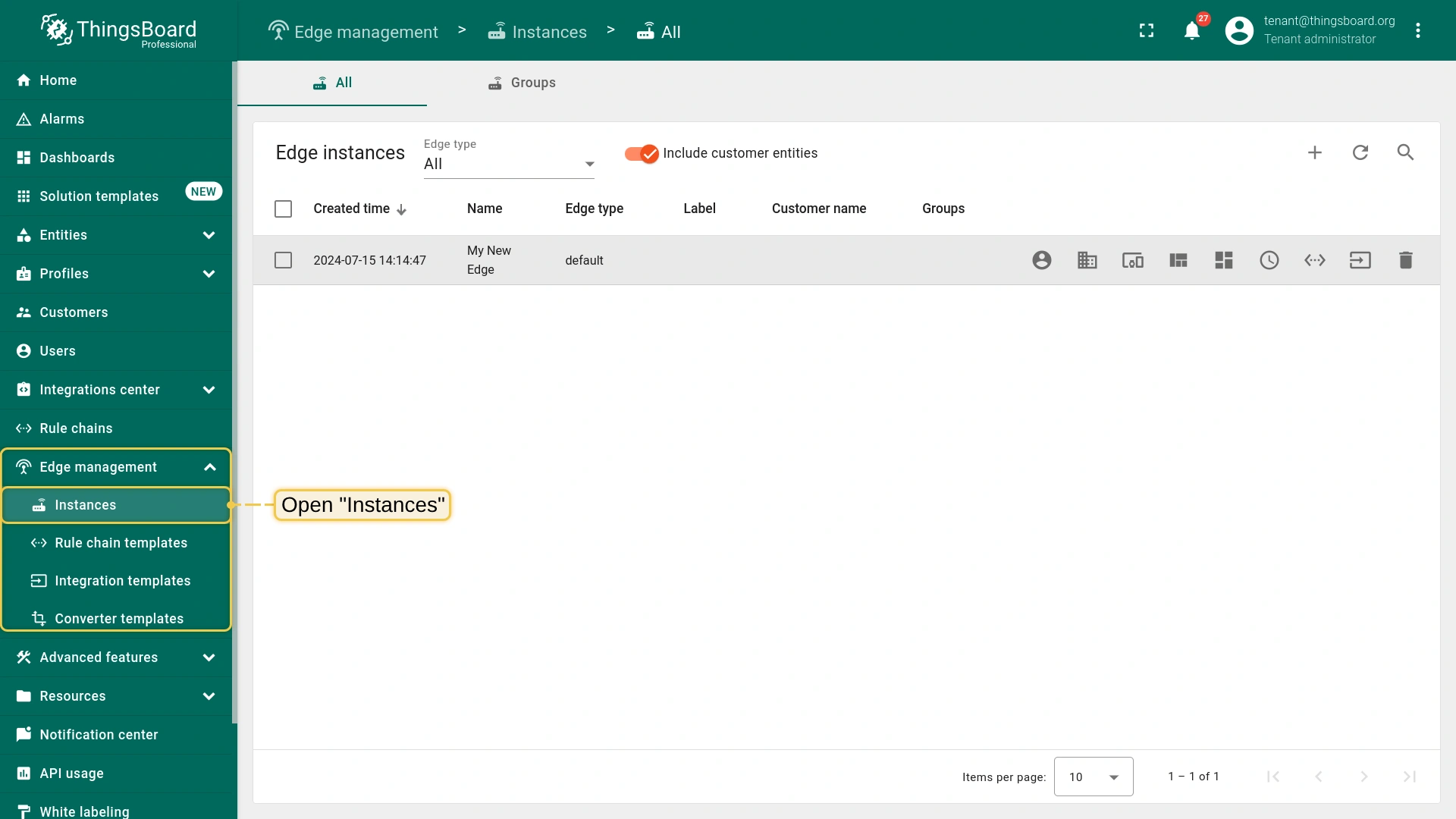

Open <b>Instances</b> menu page.
Open Instances menu page.

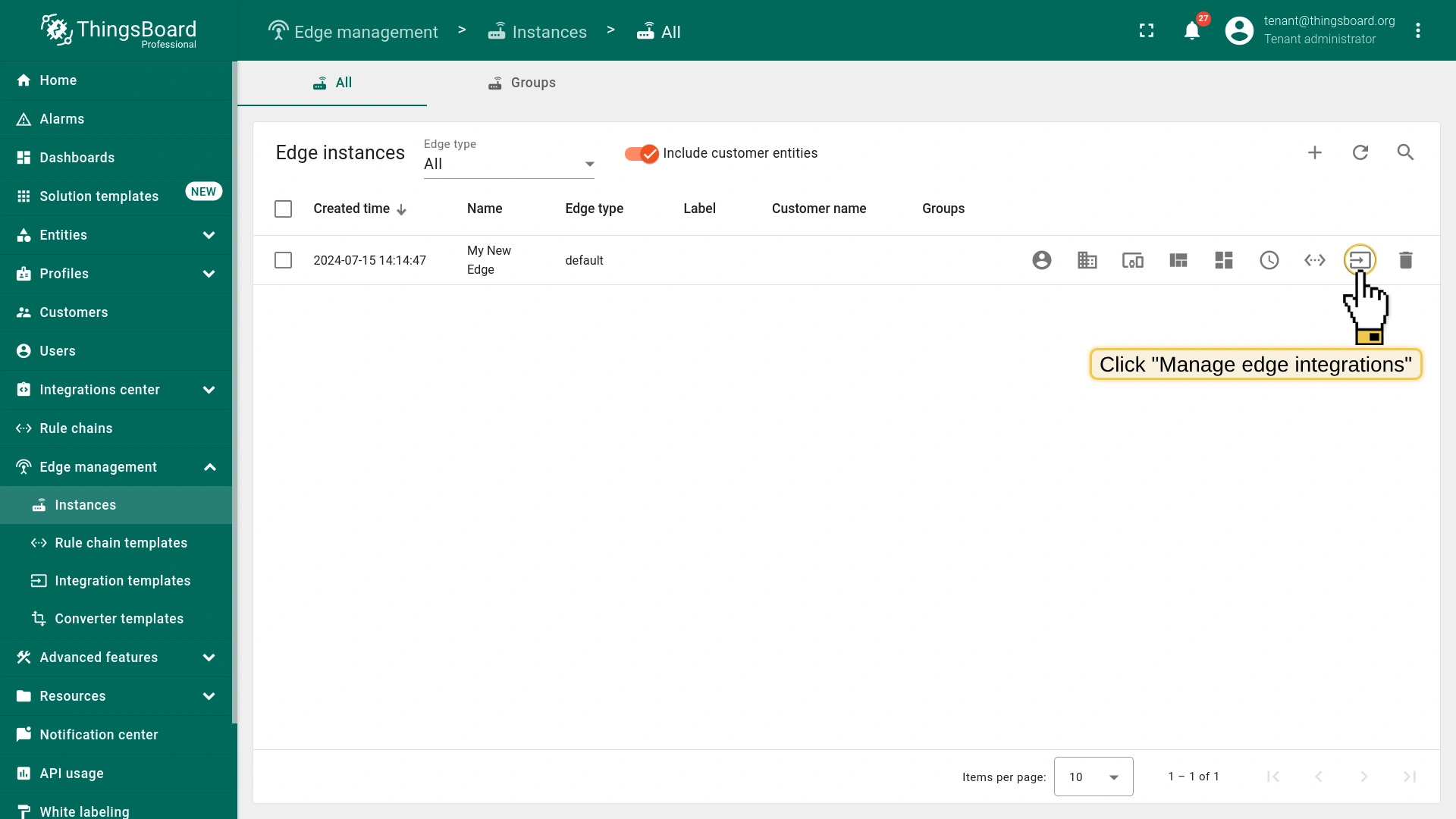

Click <b>Manage edge integrations</b>.
Click Manage edge integrations.

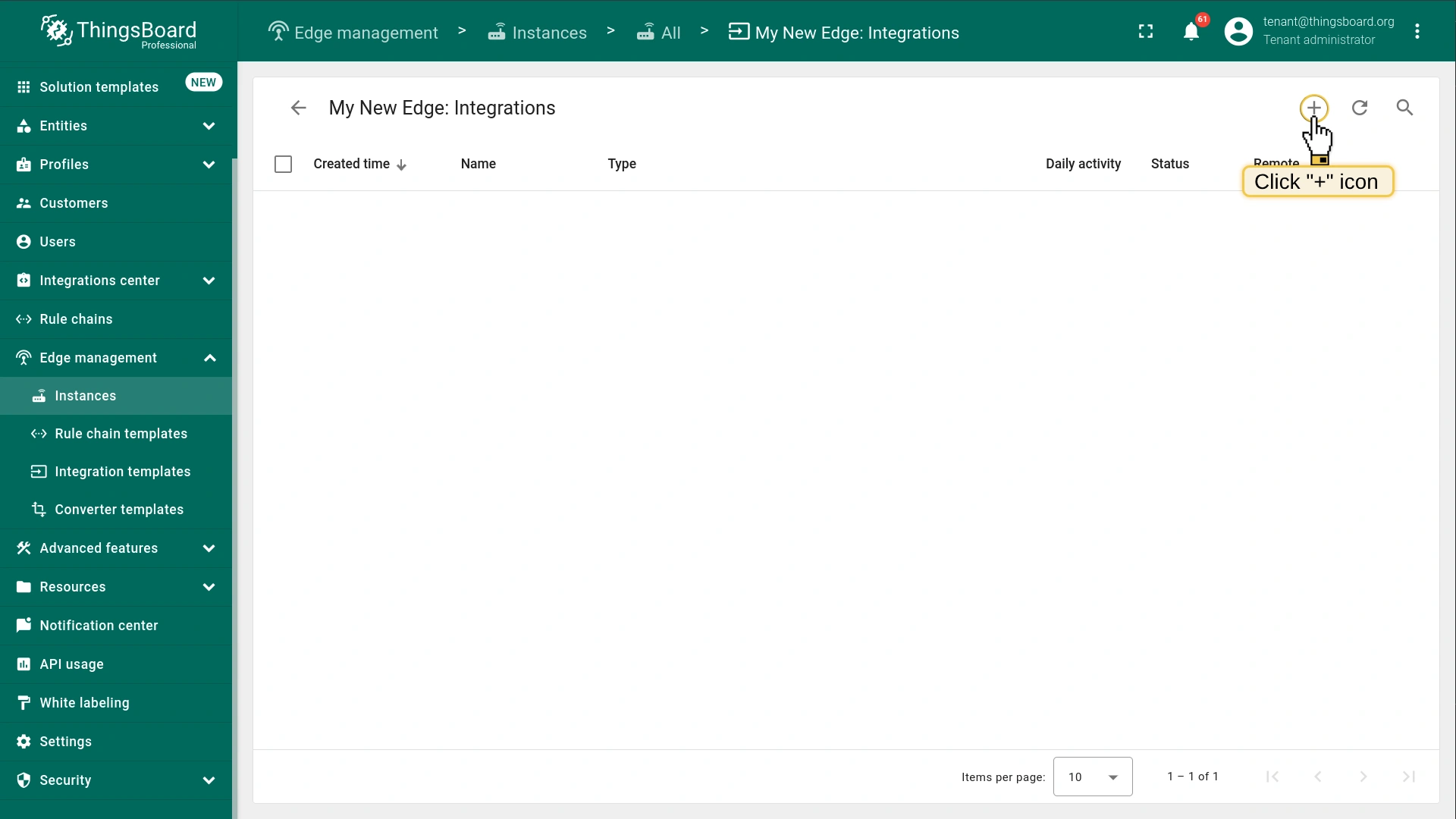

Click <b>("+")</b> icon.
Click ("+") icon.

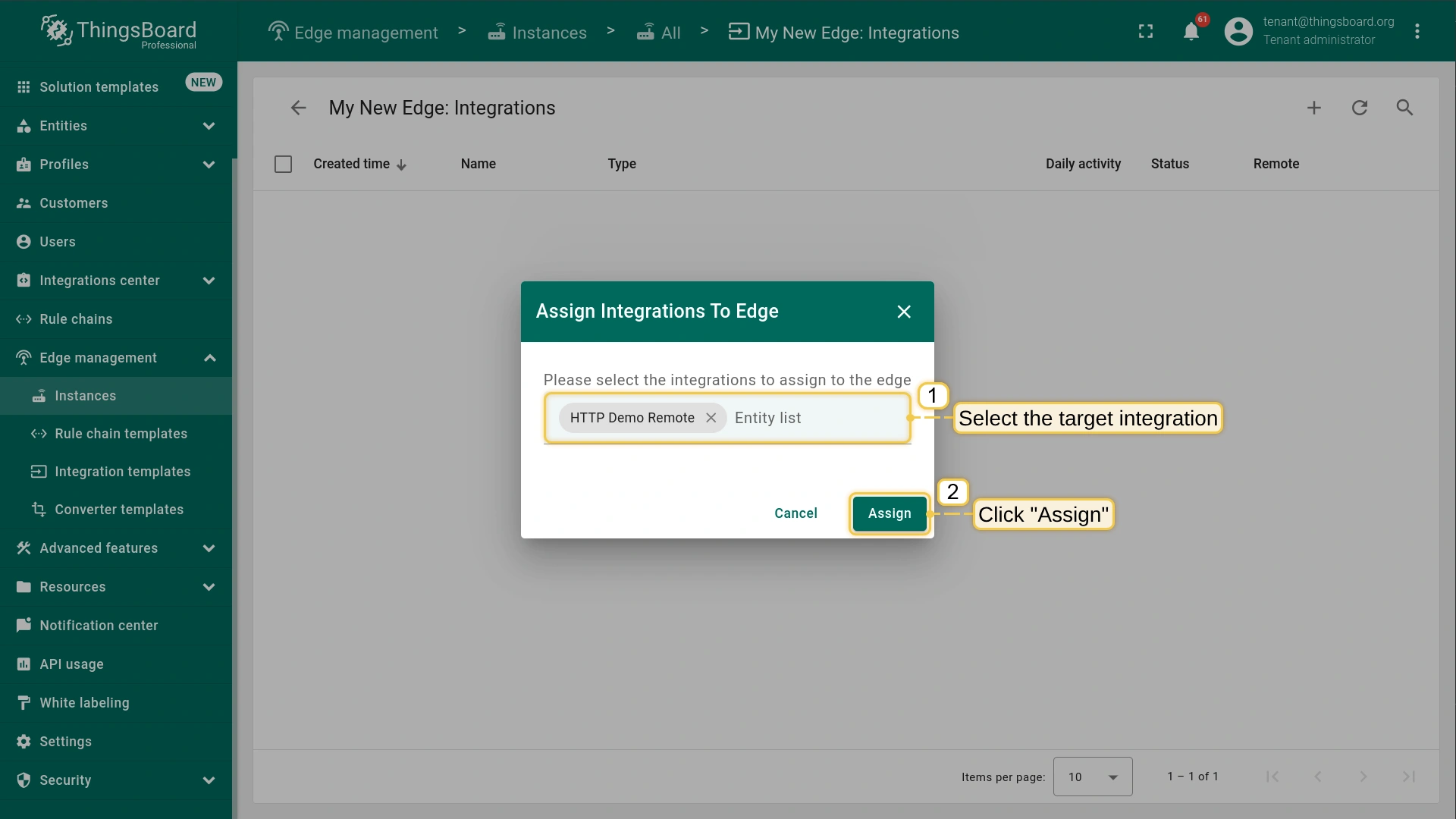

1. Select the target integration. 2. Click <b>Assign</b> button.
1. Select the target integration. 2. Click Assign button.

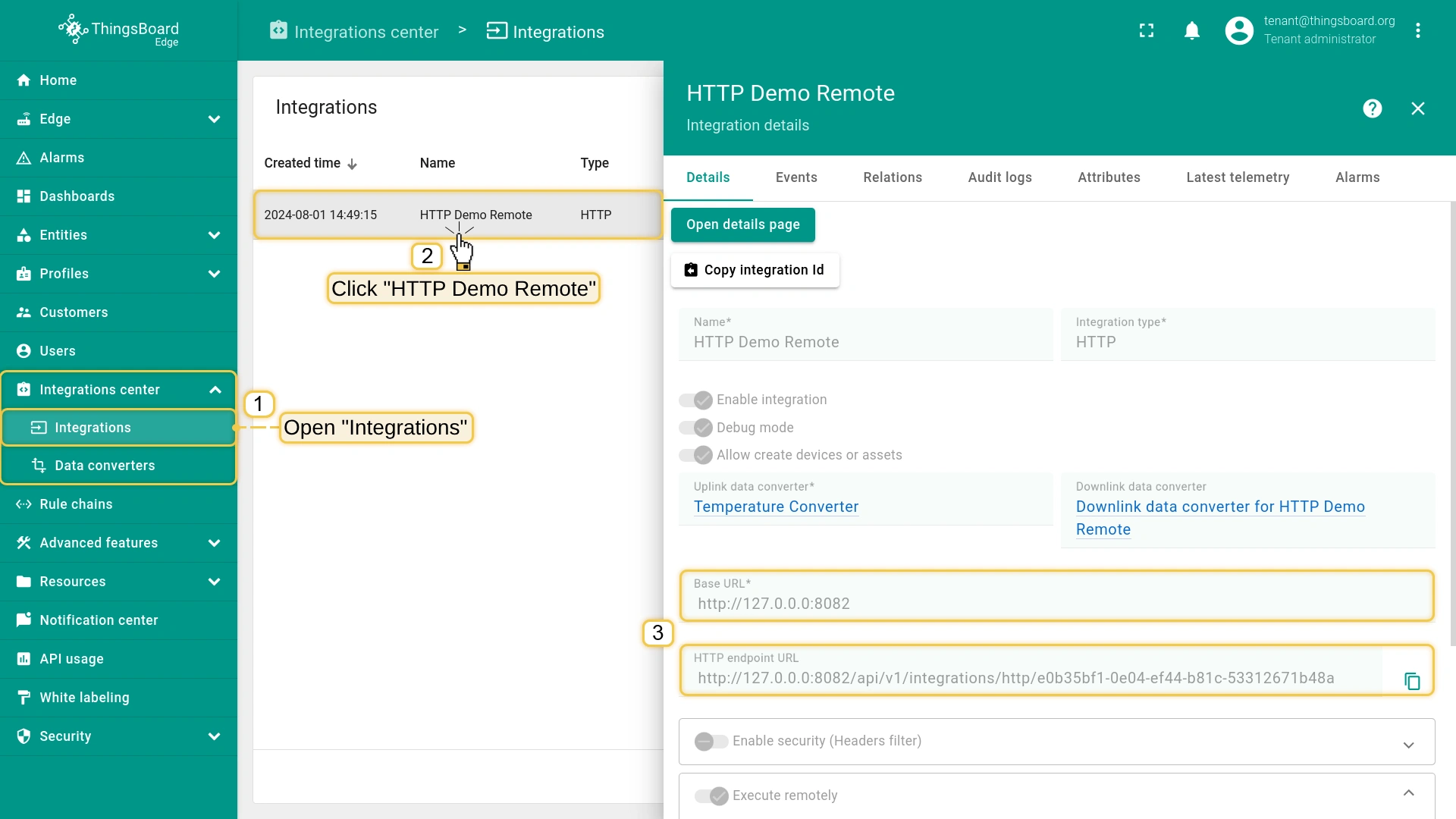

Open <b>Edge</b> instance. 1. Open the <b>Integrations</b> menu page 2. Click on <b>HTTP Demo Remote</b>. 3. Check that placeholder is substituted with the value of the attribute.
Open Edge instance. 1. Open the Integrations menu page 2. Click on HTTP Demo Remote. 3. Check that placeholder is substituted with the value of the attribute.

Remote integration installation steps

Choose your platform and install

One can install ThingsBoard Integration via Docker, Debian or RPM packages. Please use one of the next steps.

Docker on Linux/Mac

HTTP Integrations
(HTTP, Sigfox, ThingPark, OceanConnect and
T-Mobile IoT CDP)
MQTT Integrations
(MQTT, AWS IoT, IBM Watson, The Things Network)
OPC UA
Integration
TCP/UDP
Integration
CoAP
Integration

Execute the following command to pull the image:

1

docker pull thingsboard/tb-pe-http-integration:3.8.1PE

Execute the following command to create volume for the integration logs (799 is the user id of ThingsBoard non-root docker user):

1

mkdir -p ~/.tb-pe-http-integration-logs && sudo chown -R 799:799 ~/.tb-pe-http-integration-logs

Execute the following command to run the integration:

1
2
3
4

docker run -it -v ~/.tb-pe-http-integration-logs:/var/log/tb-http-integration \
-e "RPC_HOST=EDGE_IP_OR_HOST_ADDRESS" -e "RPC_PORT=9090" \
-e "INTEGRATION_ROUTING_KEY=YOUR_ROUTING_KEY"  -e "INTEGRATION_SECRET=YOUR_SECRET" \
--name my-tb-pe-http-integration --restart always thingsboard/tb-pe-http-integration:3.8.1PE

Where:

  • EDGE_IP_OR_HOST_ADDRESS - is the host name or IP address of your ThingsBoard Edge;
  • 9090 - is the integrations port of your ThingsBoard Edge. It is configured in tb-edge.yml using INTEGRATIONS_RPC_PORT env variable;
  • YOUR_ROUTING_KEY - placeholder for your integration routing key obtained on Step 3;
  • YOUR_SECRET - placeholder for your integration secret obtained on Step 3;
  • docker run - run this container;
  • -it - attach a terminal session with current ThingsBoard remote integration process output;
  • -v ~/.tb-pe-http-integration-logs:/var/log/tb-http-integration - mounts the host’s dir ~/.tb-pe-http-integration-logs to ThingsBoard remote integration logs directory;
  • --name tb-pe-http-integration - friendly local name of this machine;
  • --restart always - automatically start ThingsBoard Integration in case of system reboot and restart in case of failure.;
  • thingsboard/tb-pe-http-integration:3.8.1PE - docker image.

After executing this command you can open logs which are located here ~/.tb-pe-http-integration-logs. You should see some INFO log messages with your latest Integration configuration that arrived from the server.


You can detach from session terminal with Ctrl-p+Ctrl-q - the container will keep running in the background.


  • Reattaching, stop and start commands

To reattach to the terminal (to see ThingsBoard remote integration logs) run:

1

docker attach tb-pe-http-integration

To stop the container:

1

docker stop tb-pe-http-integration

To start the container:

1

docker start tb-pe-http-integration

Execute the following command to pull the image:

1

docker pull thingsboard/tb-pe-mqtt-integration:3.8.1PE

Execute the following command to create volume for the integration logs (799 is the user id of ThingsBoard non-root docker user):

1

mkdir -p ~/.tb-pe-mqtt-integration-logs && sudo chown -R 799:799 ~/.tb-pe-mqtt-integration-logs

Execute the following command to run the integration:

1
2
3
4

docker run -it -v ~/.tb-pe-mqtt-integration-logs:/var/log/tb-mqtt-integration \
-e "RPC_HOST=EDGE_IP_OR_HOST_ADDRESS" -e "RPC_PORT=9090" \
-e "INTEGRATION_ROUTING_KEY=YOUR_ROUTING_KEY"  -e "INTEGRATION_SECRET=YOUR_SECRET" \
--name my-tb-pe-mqtt-integration --restart always thingsboard/tb-pe-mqtt-integration:3.8.1PE

Where:

  • EDGE_IP_OR_HOST_ADDRESS - is the host name or IP address of your ThingsBoard Edge;
  • 9090 - is the integrations port of your ThingsBoard Edge. It is configured in tb-edge.yml using INTEGRATIONS_RPC_PORT env variable;
  • YOUR_ROUTING_KEY - placeholder for your integration routing key obtained on Step 3;
  • YOUR_SECRET - placeholder for your integration secret obtained on Step 3;
  • docker run - run this container;
  • -it - attach a terminal session with current ThingsBoard remote integration process output;
  • -v ~/.tb-pe-mqtt-integration-logs:/var/log/tb-mqtt-integration - mounts the host’s dir ~/.tb-pe-mqtt-integration-logs to ThingsBoard remote integration logs directory;
  • --name tb-pe-mqtt-integration - friendly local name of this machine;
  • --restart always - automatically start ThingsBoard Integration in case of system reboot and restart in case of failure.;
  • thingsboard/tb-pe-mqtt-integration:3.8.1PE - docker image.

After executing this command you can open logs which are located here ~/.tb-pe-mqtt-integration-logs. You should see some INFO log messages with your latest Integration configuration that arrived from the server.


You can detach from session terminal with Ctrl-p+Ctrl-q - the container will keep running in the background.


  • Reattaching, stop and start commands

To reattach to the terminal (to see ThingsBoard remote integration logs) run:

1

docker attach tb-pe-mqtt-integration

To stop the container:

1

docker stop tb-pe-mqtt-integration

To start the container:

1

docker start tb-pe-mqtt-integration

Execute the following command to pull the image:

1

docker pull thingsboard/tb-pe-opc-ua-integration:3.8.1PE

Execute the following command to create volume for the integration logs (799 is the user id of ThingsBoard non-root docker user):

1

mkdir -p ~/.tb-pe-opc-ua-integration-logs && sudo chown -R 799:799 ~/.tb-pe-opc-ua-integration-logs

Execute the following command to run the integration:

1
2
3
4

docker run -it -v ~/.tb-pe-opc-ua-integration-logs:/var/log/tb-opc-ua-integration \
-e "RPC_HOST=EDGE_IP_OR_HOST_ADDRESS" -e "RPC_PORT=9090" \
-e "INTEGRATION_ROUTING_KEY=YOUR_ROUTING_KEY"  -e "INTEGRATION_SECRET=YOUR_SECRET" \
--name my-tb-pe-opc-ua-integration --restart always thingsboard/tb-pe-opc-ua-integration:3.8.1PE

Where:

  • EDGE_IP_OR_HOST_ADDRESS - is the host name or IP address of your ThingsBoard Edge;
  • 9090 - is the integrations port of your ThingsBoard Edge. It is configured in tb-edge.yml using INTEGRATIONS_RPC_PORT env variable;
  • YOUR_ROUTING_KEY - placeholder for your integration routing key obtained on Step 3;
  • YOUR_SECRET - placeholder for your integration secret obtained on Step 3;
  • docker run - run this container;
  • -it - attach a terminal session with current ThingsBoard remote integration process output;
  • -v ~/.tb-pe-opc-ua-integration-logs:/var/log/tb-opc-ua-integration - mounts the host’s dir ~/.tb-pe-opc-ua-integration-logs to ThingsBoard remote integration logs directory;
  • --name tb-pe-opc-ua-integration - friendly local name of this machine;
  • --restart always - automatically start ThingsBoard Integration in case of system reboot and restart in case of failure.;
  • thingsboard/tb-pe-opc-ua-integration:3.8.1PE - docker image.

After executing this command you can open logs which are located here ~/.tb-pe-opc-ua-integration-logs. You should see some INFO log messages with your latest Integration configuration that arrived from the server.


You can detach from session terminal with Ctrl-p+Ctrl-q - the container will keep running in the background.


  • Reattaching, stop and start commands

To reattach to the terminal (to see ThingsBoard remote integration logs) run:

1

docker attach tb-pe-opc-ua-integration

To stop the container:

1

docker stop tb-pe-opc-ua-integration

To start the container:

1

docker start tb-pe-opc-ua-integration

Execute the following command to pull the image:

1

docker pull thingsboard/tb-pe-tcp-udp-integration:3.8.1PE

Execute the following command to create volume for the integration logs (799 is the user id of ThingsBoard non-root docker user):

1

mkdir -p ~/.tb-pe-tcp-udp-integration-logs && sudo chown -R 799:799 ~/.tb-pe-tcp-udp-integration-logs

Execute the following command to run the integration:

1
2
3
4

docker run -it -p 10560:10560 -v ~/.tb-pe-tcp-udp-integration-logs:/var/log/tb-tcp-udp-integration  \
-e "RPC_HOST=EDGE_IP_OR_HOST_ADDRESS" -e "RPC_PORT=9090" \
-e "INTEGRATION_ROUTING_KEY=YOUR_ROUTING_KEY"  -e "INTEGRATION_SECRET=YOUR_SECRET" \
--name my-tb-pe-tcp-udp-integration --restart always thingsboard/tb-pe-tcp-udp-integration:3.8.1PE

Where:

  • EDGE_IP_OR_HOST_ADDRESS - is the host name or IP address of your ThingsBoard Edge;
  • 9090 - is the integrations port of your ThingsBoard Edge. It is configured in tb-edge.yml using INTEGRATIONS_RPC_PORT env variable;
  • YOUR_ROUTING_KEY - placeholder for your integration routing key obtained on Step 3;
  • YOUR_SECRET - placeholder for your integration secret obtained on Step 3;
  • docker run - run this container;
  • -it - attach a terminal session with current ThingsBoard remote integration process output;
  • -p 10560:10560 - connect local port 10560 to exposed internal 10560 port for the integration. If the exposed port is UDP, add /udp at the end, e.g. -p 11560:11560/udp
  • -v ~/.tb-pe-tcp-udp-integration-logs:/var/log/tb-tcp-udp-integration - mounts the host’s dir ~/.tb-pe-tcp-udp-integration-logs to ThingsBoard remote integration logs directory;
  • --name tb-pe-tcp-udp-integration - friendly local name of this machine;
  • --restart always - automatically start ThingsBoard Integration in case of system reboot and restart in case of failure.;
  • thingsboard/tb-pe-tcp-udp-integration:3.8.1PE - docker image.

After executing this command you can open logs which are located here ~/.tb-pe-tcp-udp-integration-logs. You should see some INFO log messages with your latest Integration configuration that arrived from the server.


You can detach from session terminal with Ctrl-p+Ctrl-q - the container will keep running in the background.


  • Reattaching, stop and start commands

To reattach to the terminal (to see ThingsBoard remote integration logs) run:

1

docker attach tb-pe-tcp-udp-integration

To stop the container:

1

docker stop tb-pe-tcp-udp-integration

To start the container:

1

docker start tb-pe-tcp-udp-integration

Execute the following command to pull the image:

1

docker pull thingsboard/tb-pe-coap-integration:3.8.1PE

Execute the following command to create volume for the integration logs (799 is the user id of ThingsBoard non-root docker user):

1

mkdir -p ~/.tb-pe-coap-integration-logs && sudo chown -R 799:799 ~/.tb-pe-coap-integration-logs

Execute the following command to run the integration:

1
2
3
4

docker run -it -p 5683:5683/udp -v ~/.tb-pe-coap-integration-logs:/var/log/tb-coap-integration  \
-e "RPC_HOST=EDGE_IP_OR_HOST_ADDRESS" -e "RPC_PORT=9090" \
-e "INTEGRATION_ROUTING_KEY=YOUR_ROUTING_KEY"  -e "INTEGRATION_SECRET=YOUR_SECRET" \
--name my-tb-pe-coap-integration --restart always thingsboard/tb-pe-coap-integration:3.8.1PE

Where:

  • EDGE_IP_OR_HOST_ADDRESS - is the host name or IP address of your ThingsBoard Edge;
  • 9090 - is the integrations port of your ThingsBoard Edge. It is configured in tb-edge.yml using INTEGRATIONS_RPC_PORT env variable;
  • YOUR_ROUTING_KEY - placeholder for your integration routing key obtained on Step 3;
  • YOUR_SECRET - placeholder for your integration secret obtained on Step 3;
  • docker run - run this container;
  • -it - attach a terminal session with current ThingsBoard remote integration process output;
  • -p 5683:5683/udp - connect local udp port 5683 to exposed internal 5683 udp port for the integration.
  • -v ~/.tb-pe-coap-integration-logs:/var/log/tb-coap-integration - mounts the host’s dir ~/.tb-pe-coap-integration-logs to ThingsBoard remote integration logs directory;
  • --name tb-pe-coap-integration - friendly local name of this machine;
  • --restart always - automatically start ThingsBoard Integration in case of system reboot and restart in case of failure.;
  • thingsboard/tb-pe-coap-integration:3.8.1PE - docker image.

After executing this command you can open logs which are located here ~/.tb-pe-coap-integration-logs. You should see some INFO log messages with your latest Integration configuration that arrived from the server.


You can detach from session terminal with Ctrl-p+Ctrl-q - the container will keep running in the background.


  • Reattaching, stop and start commands

To reattach to the terminal (to see ThingsBoard remote integration logs) run:

1

docker attach tb-pe-coap-integration

To stop the container:

1

docker stop tb-pe-coap-integration

To start the container:

1

docker start tb-pe-coap-integration
  • Advanced configuration

See configuration yml file below for a list of possible configuration parameters, corresponding environment variables and their default values. For example, default client id of the integration, that is used in integration debug messages is “remote” and can be altered by setting “RPC_CLIENT_ID” environment variable.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67

server:
  # Server bind address
  address: "${HTTP_BIND_ADDRESS:0.0.0.0}"
  # Server bind port
  port: "${HTTP_BIND_PORT:8082}"

integration:
  routingKey: "${INTEGRATION_ROUTING_KEY:PUT_YOUR_ROUTING_KEY_HERE}"
  secret: "${INTEGRATION_SECRET:PUT_YOUR_SECRET_HERE}"
  # Allows connection to the localhost resources. For example, local MQTT broker, etc.
  allow_local_network_hosts: "${INTEGRATION_ALLOW_LOCAL_NETWORK_HOSTS:true}"
  statistics:
    # Enable/disable integration statistics
    enabled: "${INTEGRATION_STATISTICS_ENABLED:true}"
    # Send statistics interval. Dfault value is once per hour
    persist_frequency: "${INTEGRATION_STATISTICS_PERSIST_FREQUENCY:3600000}"

storage:
  # Location of the folder to store data files
  data_folder_path: "${INTEGRATION_STORAGE_DATA_FOLDER_PATH:./}"
  # Max amount of data files to maintain
  max_file_count: "${INTEGRATION_STORAGE_MAX_FILE_COUNT:100}"
  # Max records per data file
  max_records_per_file: "${INTEGRATION_STORAGE_MAX_RECORDS_PER_FILE:30}"
  # Max records between persistence of data file
  max_records_between_fsync: "${INTEGRATION_STORAGE_MAX_RECORDS_BETWEEN_FSYNC:100}"
  # Size of the upload chunk
  max_read_records_count: "${INTEGRATION_STORAGE_MAX_READ_RECORDS_COUNT:50}"
  # Sleep interval while no new records
  no_read_records_sleep: "${INTEGRATION_STORAGE_NO_READ_RECORDS_SLEEP:1000}"

executors:
  # Size of the thread pool to handle incoming messages and tasks
  thread_pool_size: "${EXECUTORS_SIZE:1}"
  # Timeout to reconnect to ThingsBoard
  reconnect_timeout: "${EXECUTORS_RECONNECT_TIMEOUT:3000}" # in milliseconds

rpc:
  # Host of the ThingsBoard server
  host: "${RPC_HOST:thingsboard.cloud}"
  # Port of the ThingsBoard server
  port: "${RPC_PORT:9090}"
  # No reply timeout
  timeout: "${RPC_TIMEOUT:5}" # Timeout in seconds for channel termination
  # ID of the RPC client
  client_id: "${RPC_CLIENT_ID:remote}"
  ssl:
    # SSL enabled/disabled
    enabled: "${RPC_SSL_ENABLED:false}"
    # SSL certificate
    cert: "${RPC_SSL_CERT:roots.pem}"

js:
  evaluator: "${JS_EVALUATOR:local}"
  # Built-in JVM JavaScript environment properties
  local:
    # Use Sandboxed (secured) JVM JavaScript environment
    use_js_sandbox: "${USE_LOCAL_JS_SANDBOX:true}"
    # Specify thread pool size for JavaScript sandbox resource monitor
    monitor_thread_pool_size: "${LOCAL_JS_SANDBOX_MONITOR_THREAD_POOL_SIZE:4}"
    # Maximum CPU time in milliseconds allowed for script execution
    max_cpu_time: "${LOCAL_JS_SANDBOX_MAX_CPU_TIME:5000}"
    # Maximum allowed JavaScript execution errors before JavaScript will be blacklisted
    max_errors: "${LOCAL_JS_SANDBOX_MAX_ERRORS:3}"

service:
  type: "${TB_SERVICE_TYPE:tb-integration}"
  • Troubleshooting

NOTE If you observe errors related to DNS issues, for example

1

127.0.1.1:53: cannot unmarshal DNS message

You may configure your system to use Google public DNS servers. See corresponding Linux and Mac OS instructions.

Docker on Windows

HTTP Integrations
(HTTP, Sigfox, ThingPark, OceanConnect and
T-Mobile IoT CDP)
MQTT Integrations
(MQTT, AWS IoT, IBM Watson, The Things Network)
OPC UA
Integration
TCP/UDP
Integration
CoAP
Integration

Windows users should use docker managed volume for remote integration logs. Create docker volume (for ex. tb-http-integration-logs) before executing docker run command: Open “Docker Quickstart Terminal”. Execute the following command to create docker volume:

1

docker volume create tb-pe-http-integration-logs

Execute the following command to run this docker directly:

1
2
3
4

docker run -it -v tb-pe-http-integration-logs:/var/log/tb-http-integration `
-e "RPC_HOST=EDGE_IP_OR_HOST_ADDRESS" -e "RPC_PORT=9090" `
-e "INTEGRATION_ROUTING_KEY=YOUR_ROUTING_KEY"  -e "INTEGRATION_SECRET=YOUR_SECRET" `
--name my-tb-pe-http-integration --restart always thingsboard/tb-pe-http-integration:3.8.1PE

Where:

  • EDGE_IP_OR_HOST_ADDRESS - is the host name or IP address of your ThingsBoard Edge;
  • 9090 - is the integrations port of your ThingsBoard Edge. It is configured in tb-edge.yml using INTEGRATIONS_RPC_PORT env variable;
  • YOUR_ROUTING_KEY - placeholder for your integration routing key obtained on Step 3;
  • YOUR_SECRET - placeholder for your integration secret obtained on Step 3;
  • docker run - run this container;
  • -it - attach a terminal session with current ThingsBoard remote integration process output;
  • -v tb-pe-http-integration-logs:/var/log/tb-http-integration - mounts the host’s dir ~/.tb-pe-http-integration-logs to ThingsBoard remote integration logs directory;
  • --name tb-pe-http-integration - friendly local name of this machine;
  • --restart always - automatically start ThingsBoard Integration in case of system reboot and restart in case of failure.;
  • thingsboard/tb-pe-http-integration:3.8.1PE - docker image.

After executing this command you can open logs which are located here ~/.tb-pe-http-integration-logs. You should see some INFO log messages with your latest Integration configuration that arrived from the server.


You can detach from session terminal with Ctrl-p+Ctrl-q - the container will keep running in the background.


  • Reattaching, stop and start commands

To reattach to the terminal (to see ThingsBoard remote integration logs) run:

1

docker attach tb-pe-http-integration

To stop the container:

1

docker stop tb-pe-http-integration

To start the container:

1

docker start tb-pe-http-integration

Windows users should use docker managed volume for remote integration logs. Create docker volume (for ex. tb-mqtt-integration-logs) before executing docker run command: Open “Docker Quickstart Terminal”. Execute the following command to create docker volume:

1

docker volume create tb-pe-mqtt-integration-logs

Execute the following command to run this docker directly:

1
2
3
4

docker run -it -v tb-pe-mqtt-integration-logs:/var/log/tb-mqtt-integration `
-e "RPC_HOST=EDGE_IP_OR_HOST_ADDRESS" -e "RPC_PORT=9090" `
-e "INTEGRATION_ROUTING_KEY=YOUR_ROUTING_KEY"  -e "INTEGRATION_SECRET=YOUR_SECRET" `
--name my-tb-pe-mqtt-integration --restart always thingsboard/tb-pe-mqtt-integration:3.8.1PE

Where:

  • EDGE_IP_OR_HOST_ADDRESS - is the host name or IP address of your ThingsBoard Edge;
  • 9090 - is the integrations port of your ThingsBoard Edge. It is configured in tb-edge.yml using INTEGRATIONS_RPC_PORT env variable;
  • YOUR_ROUTING_KEY - placeholder for your integration routing key obtained on Step 3;
  • YOUR_SECRET - placeholder for your integration secret obtained on Step 3;
  • docker run - run this container;
  • -it - attach a terminal session with current ThingsBoard remote integration process output;
  • -v tb-pe-mqtt-integration-logs:/var/log/tb-mqtt-integration - mounts the host’s dir ~/.tb-pe-mqtt-integration-logs to ThingsBoard remote integration logs directory;
  • --name tb-pe-mqtt-integration - friendly local name of this machine;
  • --restart always - automatically start ThingsBoard Integration in case of system reboot and restart in case of failure.;
  • thingsboard/tb-pe-mqtt-integration:3.8.1PE - docker image.

After executing this command you can open logs which are located here ~/.tb-pe-mqtt-integration-logs. You should see some INFO log messages with your latest Integration configuration that arrived from the server.


You can detach from session terminal with Ctrl-p+Ctrl-q - the container will keep running in the background.


  • Reattaching, stop and start commands

To reattach to the terminal (to see ThingsBoard remote integration logs) run:

1

docker attach tb-pe-mqtt-integration

To stop the container:

1

docker stop tb-pe-mqtt-integration

To start the container:

1

docker start tb-pe-mqtt-integration

Windows users should use docker managed volume for remote integration logs. Create docker volume (for ex. tb-opc-ua-integration-logs) before executing docker run command: Open “Docker Quickstart Terminal”. Execute the following command to create docker volume:

1

docker volume create tb-pe-opc-ua-integration-logs

Execute the following command to run this docker directly:

1
2
3
4

docker run -it -v tb-pe-opc-ua-integration-logs:/var/log/tb-opc-ua-integration `
-e "RPC_HOST=EDGE_IP_OR_HOST_ADDRESS" -e "RPC_PORT=9090" `
-e "INTEGRATION_ROUTING_KEY=YOUR_ROUTING_KEY"  -e "INTEGRATION_SECRET=YOUR_SECRET" `
--name my-tb-pe-opc-ua-integration --restart always thingsboard/tb-pe-opc-ua-integration:3.8.1PE

Where:

  • EDGE_IP_OR_HOST_ADDRESS - is the host name or IP address of your ThingsBoard Edge;
  • 9090 - is the integrations port of your ThingsBoard Edge. It is configured in tb-edge.yml using INTEGRATIONS_RPC_PORT env variable;
  • YOUR_ROUTING_KEY - placeholder for your integration routing key obtained on Step 3;
  • YOUR_SECRET - placeholder for your integration secret obtained on Step 3;
  • docker run - run this container;
  • -it - attach a terminal session with current ThingsBoard remote integration process output;
  • -v tb-pe-opc-ua-integration-logs:/var/log/tb-opc-ua-integration - mounts the host’s dir ~/.tb-pe-opc-ua-integration-logs to ThingsBoard remote integration logs directory;
  • --name tb-pe-opc-ua-integration - friendly local name of this machine;
  • --restart always - automatically start ThingsBoard Integration in case of system reboot and restart in case of failure.;
  • thingsboard/tb-pe-opc-ua-integration:3.8.1PE - docker image.

After executing this command you can open logs which are located here ~/.tb-pe-opc-ua-integration-logs. You should see some INFO log messages with your latest Integration configuration that arrived from the server.


You can detach from session terminal with Ctrl-p+Ctrl-q - the container will keep running in the background.


  • Reattaching, stop and start commands

To reattach to the terminal (to see ThingsBoard remote integration logs) run:

1

docker attach tb-pe-opc-ua-integration

To stop the container:

1

docker stop tb-pe-opc-ua-integration

To start the container:

1

docker start tb-pe-opc-ua-integration

Windows users should use docker managed volume for remote integration logs. Create docker volume (for ex. tb-tcp-udp-integration-logs) before executing docker run command: Open “Docker Quickstart Terminal”. Execute the following command to create docker volume:

1

docker volume create tb-pe-tcp-udp-integration-logs

Execute the following command to run this docker directly:

1
2
3
4

docker run -it -p 10560:10560 -v tb-pe-tcp-udp-integration-logs:/var/log/tb-tcp-udp-integration `
-e "RPC_HOST=EDGE_IP_OR_HOST_ADDRESS" -e "RPC_PORT=9090" `
-e "INTEGRATION_ROUTING_KEY=YOUR_ROUTING_KEY"  -e "INTEGRATION_SECRET=YOUR_SECRET" `
--name my-tb-pe-tcp-udp-integration --restart always thingsboard/tb-pe-tcp-udp-integration:3.8.1PE

Where:

  • EDGE_IP_OR_HOST_ADDRESS - is the host name or IP address of your ThingsBoard Edge;
  • 9090 - is the integrations port of your ThingsBoard Edge. It is configured in tb-edge.yml using INTEGRATIONS_RPC_PORT env variable;
  • YOUR_ROUTING_KEY - placeholder for your integration routing key obtained on Step 3;
  • YOUR_SECRET - placeholder for your integration secret obtained on Step 3;
  • docker run - run this container;
  • -it - attach a terminal session with current ThingsBoard remote integration process output;
  • -p 10560:10560 - connect local port 10560 to exposed internal 10560 port for the integration
  • -v tb-pe-tcp-udp-integration-logs:/var/log/tb-tcp-udp-integration - mounts the host’s dir ~/.tb-pe-tcp-udp-integration-logs to ThingsBoard remote integration logs directory;
  • --name tb-pe-tcp-udp-integration - friendly local name of this machine;
  • --restart always - automatically start ThingsBoard Integration in case of system reboot and restart in case of failure.;
  • thingsboard/tb-pe-tcp-udp-integration:3.8.1PE - docker image.

After executing this command you can open logs which are located here ~/.tb-pe-tcp-udp-integration-logs. You should see some INFO log messages with your latest Integration configuration that arrived from the server.


You can detach from session terminal with Ctrl-p+Ctrl-q - the container will keep running in the background.


  • Reattaching, stop and start commands

To reattach to the terminal (to see ThingsBoard remote integration logs) run:

1

docker attach tb-pe-tcp-udp-integration

To stop the container:

1

docker stop tb-pe-tcp-udp-integration

To start the container:

1

docker start tb-pe-tcp-udp-integration

Windows users should use docker managed volume for remote integration logs. Create docker volume (for ex. tb-coap-integration-logs) before executing docker run command: Open “Docker Quickstart Terminal”. Execute the following command to create docker volume:

1

docker volume create tb-pe-coap-integration-logs

Execute the following command to run this docker directly:

1
2
3
4

docker run -it -p 5683:5683/udp -v tb-pe-coap-integration-logs:/var/log/tb-coap-integration `
-e "RPC_HOST=EDGE_IP_OR_HOST_ADDRESS" -e "RPC_PORT=9090" `
-e "INTEGRATION_ROUTING_KEY=YOUR_ROUTING_KEY"  -e "INTEGRATION_SECRET=YOUR_SECRET" `
--name my-tb-pe-coap-integration --restart always thingsboard/tb-pe-coap-integration:3.8.1PE

Where:

  • EDGE_IP_OR_HOST_ADDRESS - is the host name or IP address of your ThingsBoard Edge;
  • 9090 - is the integrations port of your ThingsBoard Edge. It is configured in tb-edge.yml using INTEGRATIONS_RPC_PORT env variable;
  • YOUR_ROUTING_KEY - placeholder for your integration routing key obtained on Step 3;
  • YOUR_SECRET - placeholder for your integration secret obtained on Step 3;
  • docker run - run this container;
  • -it - attach a terminal session with current ThingsBoard remote integration process output;
  • -p 5683:5683/udp - connect local udp port 5683 to exposed internal 5683 udp port for the integration.
  • -v tb-pe-coap-integration-logs:/var/log/tb-coap-integration - mounts the host’s dir ~/.tb-pe-coap-integration-logs to ThingsBoard remote integration logs directory;
  • --name tb-pe-coap-integration - friendly local name of this machine;
  • --restart always - automatically start ThingsBoard Integration in case of system reboot and restart in case of failure.;
  • thingsboard/tb-pe-coap-integration:3.8.1PE - docker image.

After executing this command you can open logs which are located here ~/.tb-pe-coap-integration-logs. You should see some INFO log messages with your latest Integration configuration that arrived from the server.


You can detach from session terminal with Ctrl-p+Ctrl-q - the container will keep running in the background.


  • Reattaching, stop and start commands

To reattach to the terminal (to see ThingsBoard remote integration logs) run:

1

docker attach tb-pe-coap-integration

To stop the container:

1

docker stop tb-pe-coap-integration

To start the container:

1

docker start tb-pe-coap-integration
  • Advanced configuration

See configuration yml file below for a list of possible configuration parameters, corresponding environment variables and their default values. For example, default client id of the integration, that is used in integration debug messages is “remote” and can be altered by setting “RPC_CLIENT_ID” environment variable.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67

server:
  # Server bind address
  address: "${HTTP_BIND_ADDRESS:0.0.0.0}"
  # Server bind port
  port: "${HTTP_BIND_PORT:8082}"

integration:
  routingKey: "${INTEGRATION_ROUTING_KEY:PUT_YOUR_ROUTING_KEY_HERE}"
  secret: "${INTEGRATION_SECRET:PUT_YOUR_SECRET_HERE}"
  # Allows connection to the localhost resources. For example, local MQTT broker, etc.
  allow_local_network_hosts: "${INTEGRATION_ALLOW_LOCAL_NETWORK_HOSTS:true}"
  statistics:
    # Enable/disable integration statistics
    enabled: "${INTEGRATION_STATISTICS_ENABLED:true}"
    # Send statistics interval. Dfault value is once per hour
    persist_frequency: "${INTEGRATION_STATISTICS_PERSIST_FREQUENCY:3600000}"

storage:
  # Location of the folder to store data files
  data_folder_path: "${INTEGRATION_STORAGE_DATA_FOLDER_PATH:./}"
  # Max amount of data files to maintain
  max_file_count: "${INTEGRATION_STORAGE_MAX_FILE_COUNT:100}"
  # Max records per data file
  max_records_per_file: "${INTEGRATION_STORAGE_MAX_RECORDS_PER_FILE:30}"
  # Max records between persistence of data file
  max_records_between_fsync: "${INTEGRATION_STORAGE_MAX_RECORDS_BETWEEN_FSYNC:100}"
  # Size of the upload chunk
  max_read_records_count: "${INTEGRATION_STORAGE_MAX_READ_RECORDS_COUNT:50}"
  # Sleep interval while no new records
  no_read_records_sleep: "${INTEGRATION_STORAGE_NO_READ_RECORDS_SLEEP:1000}"

executors:
  # Size of the thread pool to handle incoming messages and tasks
  thread_pool_size: "${EXECUTORS_SIZE:1}"
  # Timeout to reconnect to ThingsBoard
  reconnect_timeout: "${EXECUTORS_RECONNECT_TIMEOUT:3000}" # in milliseconds

rpc:
  # Host of the ThingsBoard server
  host: "${RPC_HOST:thingsboard.cloud}"
  # Port of the ThingsBoard server
  port: "${RPC_PORT:9090}"
  # No reply timeout
  timeout: "${RPC_TIMEOUT:5}" # Timeout in seconds for channel termination
  # ID of the RPC client
  client_id: "${RPC_CLIENT_ID:remote}"
  ssl:
    # SSL enabled/disabled
    enabled: "${RPC_SSL_ENABLED:false}"
    # SSL certificate
    cert: "${RPC_SSL_CERT:roots.pem}"

js:
  evaluator: "${JS_EVALUATOR:local}"
  # Built-in JVM JavaScript environment properties
  local:
    # Use Sandboxed (secured) JVM JavaScript environment
    use_js_sandbox: "${USE_LOCAL_JS_SANDBOX:true}"
    # Specify thread pool size for JavaScript sandbox resource monitor
    monitor_thread_pool_size: "${LOCAL_JS_SANDBOX_MONITOR_THREAD_POOL_SIZE:4}"
    # Maximum CPU time in milliseconds allowed for script execution
    max_cpu_time: "${LOCAL_JS_SANDBOX_MAX_CPU_TIME:5000}"
    # Maximum allowed JavaScript execution errors before JavaScript will be blacklisted
    max_errors: "${LOCAL_JS_SANDBOX_MAX_ERRORS:3}"

service:
  type: "${TB_SERVICE_TYPE:tb-integration}"
  • Troubleshooting

NOTE If you observe errors related to DNS issues, for example

1

127.0.1.1:53: cannot unmarshal DNS message

You may configure your system to use Google public DNS servers

Ubuntu Server

  • Install Java 17 (OpenJDK)

ThingsBoard service is running on Java 17. Follow this instructions to install OpenJDK 17:

1
2

sudo apt update
sudo apt install openjdk-17-jdk

Please don’t forget to configure your operating system to use OpenJDK 17 by default. You can configure which version is the default using the following command:

1

sudo update-alternatives --config java

You can check the installation using the following command:

1

java -version

Expected command output is:

1
2
3

openjdk version "17.x.xx"
OpenJDK Runtime Environment (...)
OpenJDK 64-Bit Server VM (...)
  • Choose Integration package to install
HTTP Integrations
(HTTP, Sigfox, ThingPark, OceanConnect and
T-Mobile IoT CDP)
MQTT Integrations
(MQTT, AWS IoT, IBM Watson, The Things Network)
OPC UA
Integration
TCP/UDP
Integration
CoAP
Integration

Download installation package:

1

wget https://dist.thingsboard.io/tb-http-integration-3.8.1pe.deb

Install integration as a service:

1

sudo dpkg -i tb-http-integration-3.8.1pe.deb

Open the file for editing using the following command:

1

sudo nano /etc/tb-http-integration/conf/tb-http-integration.conf

Locate the following configuration block:

1
2
3
4
5

# UNCOMMENT NEXT LINES AND PUT YOUR CONNECTION PARAMETERS:
# export RPC_HOST=thingsboard.cloud
# export RPC_PORT=9090
# export INTEGRATION_ROUTING_KEY=YOUR_INTEGRATION_KEY
# export INTEGRATION_SECRET=YOUR_INTEGRATION_SECRET

and put your configuration parameters. Please don’t forget to uncomment the export statement. See example below:

1
2
3
4
5

# UNCOMMENT NEXT LINES AND PUT YOUR CONNECTION PARAMETERS:
export RPC_HOST=192.168.1.1 # YOUR EDGE INSTANCE IP ADDRESS
export RPC_PORT=9090
export INTEGRATION_ROUTING_KEY=b75**************************34d
export INTEGRATION_SECRET=vna**************mik

Execute the following command to start ThingsBoard integration:

1

sudo service tb-http-integration start
  • Advanced configuration

Once can lookup additional configuration parameters inside the yml configuration file.

Open the file for editing using the following command:

1

sudo nano /etc/tb-http-integration/conf/tb-http-integration.conf

After executing this command you can open logs which are located here /var/log/tb-http-integration/. You should see some INFO log messages with your latest Integration configuration that arrived from the server.

Download installation package:

1

wget https://dist.thingsboard.io/tb-mqtt-integration-3.8.1pe.deb

Install integration as a service:

1

sudo dpkg -i tb-mqtt-integration-3.8.1pe.deb

Open the file for editing using the following command:

1

sudo nano /etc/tb-mqtt-integration/conf/tb-mqtt-integration.conf

Locate the following configuration block:

1
2
3
4
5

# UNCOMMENT NEXT LINES AND PUT YOUR CONNECTION PARAMETERS:
# export RPC_HOST=thingsboard.cloud
# export RPC_PORT=9090
# export INTEGRATION_ROUTING_KEY=YOUR_INTEGRATION_KEY
# export INTEGRATION_SECRET=YOUR_INTEGRATION_SECRET

and put your configuration parameters. Please don’t forget to uncomment the export statement. See example below:

1
2
3
4
5

# UNCOMMENT NEXT LINES AND PUT YOUR CONNECTION PARAMETERS:
export RPC_HOST=192.168.1.1 # YOUR EDGE INSTANCE IP ADDRESS
export RPC_PORT=9090
export INTEGRATION_ROUTING_KEY=b75**************************34d
export INTEGRATION_SECRET=vna**************mik

Execute the following command to start ThingsBoard integration:

1

sudo service tb-mqtt-integration start
  • Advanced configuration

Once can lookup additional configuration parameters inside the yml configuration file.

Open the file for editing using the following command:

1

sudo nano /etc/tb-mqtt-integration/conf/tb-mqtt-integration.conf

After executing this command you can open logs which are located here /var/log/tb-mqtt-integration/. You should see some INFO log messages with your latest Integration configuration that arrived from the server.

Download installation package:

1

wget https://dist.thingsboard.io/tb-opc-ua-integration-3.8.1pe.deb

Install integration as a service:

1

sudo dpkg -i tb-opc-ua-integration-3.8.1pe.deb

Open the file for editing using the following command:

1

sudo nano /etc/tb-opc-ua-integration/conf/tb-opc-ua-integration.conf

Locate the following configuration block:

1
2
3
4
5

# UNCOMMENT NEXT LINES AND PUT YOUR CONNECTION PARAMETERS:
# export RPC_HOST=thingsboard.cloud
# export RPC_PORT=9090
# export INTEGRATION_ROUTING_KEY=YOUR_INTEGRATION_KEY
# export INTEGRATION_SECRET=YOUR_INTEGRATION_SECRET

and put your configuration parameters. Please don’t forget to uncomment the export statement. See example below:

1
2
3
4
5

# UNCOMMENT NEXT LINES AND PUT YOUR CONNECTION PARAMETERS:
export RPC_HOST=192.168.1.1 # YOUR EDGE INSTANCE IP ADDRESS
export RPC_PORT=9090
export INTEGRATION_ROUTING_KEY=b75**************************34d
export INTEGRATION_SECRET=vna**************mik

Execute the following command to start ThingsBoard integration:

1

sudo service tb-opc-ua-integration start
  • Advanced configuration

Once can lookup additional configuration parameters inside the yml configuration file.

Open the file for editing using the following command:

1

sudo nano /etc/tb-opc-ua-integration/conf/tb-opc-ua-integration.conf

After executing this command you can open logs which are located here /var/log/tb-opc-ua-integration/. You should see some INFO log messages with your latest Integration configuration that arrived from the server.

Download installation package:

1

wget https://dist.thingsboard.io/tb-tcp-udp-integration-3.8.1pe.deb

Install integration as a service:

1

sudo dpkg -i tb-tcp-udp-integration-3.8.1pe.deb

Open the file for editing using the following command:

1

sudo nano /etc/tb-tcp-udp-integration/conf/tb-tcp-udp-integration.conf

Locate the following configuration block:

1
2
3
4
5

# UNCOMMENT NEXT LINES AND PUT YOUR CONNECTION PARAMETERS:
# export RPC_HOST=thingsboard.cloud
# export RPC_PORT=9090
# export INTEGRATION_ROUTING_KEY=YOUR_INTEGRATION_KEY
# export INTEGRATION_SECRET=YOUR_INTEGRATION_SECRET

and put your configuration parameters. Please don’t forget to uncomment the export statement. See example below:

1
2
3
4
5

# UNCOMMENT NEXT LINES AND PUT YOUR CONNECTION PARAMETERS:
export RPC_HOST=192.168.1.1 # YOUR EDGE INSTANCE IP ADDRESS
export RPC_PORT=9090
export INTEGRATION_ROUTING_KEY=b75**************************34d
export INTEGRATION_SECRET=vna**************mik

Execute the following command to start ThingsBoard integration:

1

sudo service tb-tcp-udp-integration start
  • Advanced configuration

Once can lookup additional configuration parameters inside the yml configuration file.

Open the file for editing using the following command:

1

sudo nano /etc/tb-tcp-udp-integration/conf/tb-tcp-udp-integration.conf

After executing this command you can open logs which are located here /var/log/tb-tcp-udp-integration/. You should see some INFO log messages with your latest Integration configuration that arrived from the server.

Download installation package:

1

wget https://dist.thingsboard.io/tb-coap-integration-3.8.1pe.deb

Install integration as a service:

1

sudo dpkg -i tb-coap-integration-3.8.1pe.deb

Open the file for editing using the following command:

1

sudo nano /etc/tb-coap-integration/conf/tb-coap-integration.conf

Locate the following configuration block:

1
2
3
4
5

# UNCOMMENT NEXT LINES AND PUT YOUR CONNECTION PARAMETERS:
# export RPC_HOST=thingsboard.cloud
# export RPC_PORT=9090
# export INTEGRATION_ROUTING_KEY=YOUR_INTEGRATION_KEY
# export INTEGRATION_SECRET=YOUR_INTEGRATION_SECRET

and put your configuration parameters. Please don’t forget to uncomment the export statement. See example below:

1
2
3
4
5

# UNCOMMENT NEXT LINES AND PUT YOUR CONNECTION PARAMETERS:
export RPC_HOST=192.168.1.1 # YOUR EDGE INSTANCE IP ADDRESS
export RPC_PORT=9090
export INTEGRATION_ROUTING_KEY=b75**************************34d
export INTEGRATION_SECRET=vna**************mik

Execute the following command to start ThingsBoard integration:

1

sudo service tb-coap-integration start
  • Advanced configuration

Once can lookup additional configuration parameters inside the yml configuration file.

Open the file for editing using the following command:

1

sudo nano /etc/tb-coap-integration/conf/tb-coap-integration.conf

After executing this command you can open logs which are located here /var/log/tb-coap-integration/. You should see some INFO log messages with your latest Integration configuration that arrived from the server.

CentOS/RHEL Server

  • Install Java 17 (OpenJDK)

ThingsBoard service is running on Java 17. Follow this instructions to install OpenJDK 17:

1

sudo dnf install java-17-openjdk

Please don’t forget to configure your operating system to use OpenJDK 17 by default. You can configure which version is the default using the following command:

1

sudo update-alternatives --config java

You can check the installation using the following command:

1

java -version

Expected command output is:

1
2
3

openjdk version "17.x.xx"
OpenJDK Runtime Environment (...)
OpenJDK 64-Bit Server VM (build ...)
  • Choose Integration package to install
HTTP Integrations
(HTTP, Sigfox, ThingPark, OceanConnect and
T-Mobile IoT CDP)
MQTT Integrations
(MQTT, AWS IoT, IBM Watson, The Things Network)
OPC UA
Integration
TCP/UDP
Integration
CoAP
Integration

Download installation package:

1

wget https://dist.thingsboard.io/tb-http-integration-3.8.1pe.rpm

Install integration as a service:

1

sudo rpm -Uvh tb-http-integration-3.8.1pe.rpm

Open the file for editing using the following command:

1

sudo nano /etc/tb-http-integration/conf/tb-http-integration.conf

Locate the following configuration block:

1
2
3
4
5

# UNCOMMENT NEXT LINES AND PUT YOUR CONNECTION PARAMETERS:
# export RPC_HOST=thingsboard.cloud
# export RPC_PORT=9090
# export INTEGRATION_ROUTING_KEY=YOUR_INTEGRATION_KEY
# export INTEGRATION_SECRET=YOUR_INTEGRATION_SECRET

and put your configuration parameters. Please don’t forget to uncomment the export statement. See example below:

1
2
3
4
5

# UNCOMMENT NEXT LINES AND PUT YOUR CONNECTION PARAMETERS:
export RPC_HOST=192.168.1.1 # YOUR EDGE INSTANCE IP ADDRESS
export RPC_PORT=9090
export INTEGRATION_ROUTING_KEY=b75**************************34d
export INTEGRATION_SECRET=vna**************mik

Execute the following command to start ThingsBoard integration:

1

sudo service tb-http-integration start
  • Advanced configuration

Once can lookup additional configuration parameters inside the yml configuration file.

Open the file for editing using the following command:

1

sudo nano /etc/tb-http-integration/conf/tb-http-integration.conf

After executing this command you can open logs which are located here /var/log/tb-http-integration/. You should see some INFO log messages with your latest Integration configuration that arrived from the server.

Download installation package:

1

wget https://dist.thingsboard.io/tb-mqtt-integration-3.8.1pe.rpm

Install integration as a service:

1

sudo rpm -Uvh tb-mqtt-integration-3.8.1pe.rpm

Open the file for editing using the following command:

1

sudo nano /etc/tb-mqtt-integration/conf/tb-mqtt-integration.conf

Locate the following configuration block:

1
2
3
4
5

# UNCOMMENT NEXT LINES AND PUT YOUR CONNECTION PARAMETERS:
# export RPC_HOST=thingsboard.cloud
# export RPC_PORT=9090
# export INTEGRATION_ROUTING_KEY=YOUR_INTEGRATION_KEY
# export INTEGRATION_SECRET=YOUR_INTEGRATION_SECRET

and put your configuration parameters. Please don’t forget to uncomment the export statement. See example below:

1
2
3
4
5

# UNCOMMENT NEXT LINES AND PUT YOUR CONNECTION PARAMETERS:
export RPC_HOST=192.168.1.1 # YOUR EDGE INSTANCE IP ADDRESS
export RPC_PORT=9090
export INTEGRATION_ROUTING_KEY=b75**************************34d
export INTEGRATION_SECRET=vna**************mik

Execute the following command to start ThingsBoard integration:

1

sudo service tb-mqtt-integration start
  • Advanced configuration

Once can lookup additional configuration parameters inside the yml configuration file.

Open the file for editing using the following command:

1

sudo nano /etc/tb-mqtt-integration/conf/tb-mqtt-integration.conf

After executing this command you can open logs which are located here /var/log/tb-mqtt-integration/. You should see some INFO log messages with your latest Integration configuration that arrived from the server.

Download installation package:

1

wget https://dist.thingsboard.io/tb-opc-ua-integration-3.8.1pe.rpm

Install integration as a service:

1

sudo rpm -Uvh tb-opc-ua-integration-3.8.1pe.rpm

Open the file for editing using the following command:

1

sudo nano /etc/tb-opc-ua-integration/conf/tb-opc-ua-integration.conf

Locate the following configuration block:

1
2
3
4
5

# UNCOMMENT NEXT LINES AND PUT YOUR CONNECTION PARAMETERS:
# export RPC_HOST=thingsboard.cloud
# export RPC_PORT=9090
# export INTEGRATION_ROUTING_KEY=YOUR_INTEGRATION_KEY
# export INTEGRATION_SECRET=YOUR_INTEGRATION_SECRET

and put your configuration parameters. Please don’t forget to uncomment the export statement. See example below:

1
2
3
4
5

# UNCOMMENT NEXT LINES AND PUT YOUR CONNECTION PARAMETERS:
export RPC_HOST=192.168.1.1 # YOUR EDGE INSTANCE IP ADDRESS
export RPC_PORT=9090
export INTEGRATION_ROUTING_KEY=b75**************************34d
export INTEGRATION_SECRET=vna**************mik

Execute the following command to start ThingsBoard integration:

1

sudo service tb-opc-ua-integration start
  • Advanced configuration

Once can lookup additional configuration parameters inside the yml configuration file.

Open the file for editing using the following command:

1

sudo nano /etc/tb-opc-ua-integration/conf/tb-opc-ua-integration.conf

After executing this command you can open logs which are located here /var/log/tb-opc-ua-integration/. You should see some INFO log messages with your latest Integration configuration that arrived from the server.

Download installation package:

1

wget https://dist.thingsboard.io/tb-tcp-udp-integration-3.8.1pe.rpm

Install integration as a service:

1

sudo rpm -Uvh tb-tcp-udp-integration-3.8.1pe.rpm

Open the file for editing using the following command:

1

sudo nano /etc/tb-tcp-udp-integration/conf/tb-tcp-udp-integration.conf

Locate the following configuration block:

1
2
3
4
5

# UNCOMMENT NEXT LINES AND PUT YOUR CONNECTION PARAMETERS:
# export RPC_HOST=thingsboard.cloud
# export RPC_PORT=9090
# export INTEGRATION_ROUTING_KEY=YOUR_INTEGRATION_KEY
# export INTEGRATION_SECRET=YOUR_INTEGRATION_SECRET

and put your configuration parameters. Please don’t forget to uncomment the export statement. See example below:

1
2
3
4
5

# UNCOMMENT NEXT LINES AND PUT YOUR CONNECTION PARAMETERS:
export RPC_HOST=192.168.1.1 # YOUR EDGE INSTANCE IP ADDRESS
export RPC_PORT=9090
export INTEGRATION_ROUTING_KEY=b75**************************34d
export INTEGRATION_SECRET=vna**************mik

Execute the following command to start ThingsBoard integration:

1

sudo service tb-tcp-udp-integration start
  • Advanced configuration

Once can lookup additional configuration parameters inside the yml configuration file.

Open the file for editing using the following command:

1

sudo nano /etc/tb-tcp-udp-integration/conf/tb-tcp-udp-integration.conf

After executing this command you can open logs which are located here /var/log/tb-tcp-udp-integration/. You should see some INFO log messages with your latest Integration configuration that arrived from the server.

Download installation package:

1

wget https://dist.thingsboard.io/tb-coap-integration-3.8.1pe.rpm

Install integration as a service:

1

sudo rpm -Uvh tb-coap-integration-3.8.1pe.rpm

Open the file for editing using the following command:

1

sudo nano /etc/tb-coap-integration/conf/tb-coap-integration.conf

Locate the following configuration block:

1
2
3
4
5

# UNCOMMENT NEXT LINES AND PUT YOUR CONNECTION PARAMETERS:
# export RPC_HOST=thingsboard.cloud
# export RPC_PORT=9090
# export INTEGRATION_ROUTING_KEY=YOUR_INTEGRATION_KEY
# export INTEGRATION_SECRET=YOUR_INTEGRATION_SECRET

and put your configuration parameters. Please don’t forget to uncomment the export statement. See example below:

1
2
3
4
5

# UNCOMMENT NEXT LINES AND PUT YOUR CONNECTION PARAMETERS:
export RPC_HOST=192.168.1.1 # YOUR EDGE INSTANCE IP ADDRESS
export RPC_PORT=9090
export INTEGRATION_ROUTING_KEY=b75**************************34d
export INTEGRATION_SECRET=vna**************mik

Execute the following command to start ThingsBoard integration:

1

sudo service tb-coap-integration start
  • Advanced configuration

Once can lookup additional configuration parameters inside the yml configuration file.

Open the file for editing using the following command:

1

sudo nano /etc/tb-coap-integration/conf/tb-coap-integration.conf

After executing this command you can open logs which are located here /var/log/tb-coap-integration/. You should see some INFO log messages with your latest Integration configuration that arrived from the server.

Remote HTTP integration validation

To send an uplink message, you need HTTP endpoint URL from the integration.
Let’s log in to ThingsBoard Edge and go to the Integrations page. Find your HTTP integration and click on it. There you can find the HTTP endpoint URL. Click on the icon to copy the url.

Important! Please make sure that your machine is able to access machine where remote HTTP integration is running, and port 8082 is not blocked by any firewall rules.

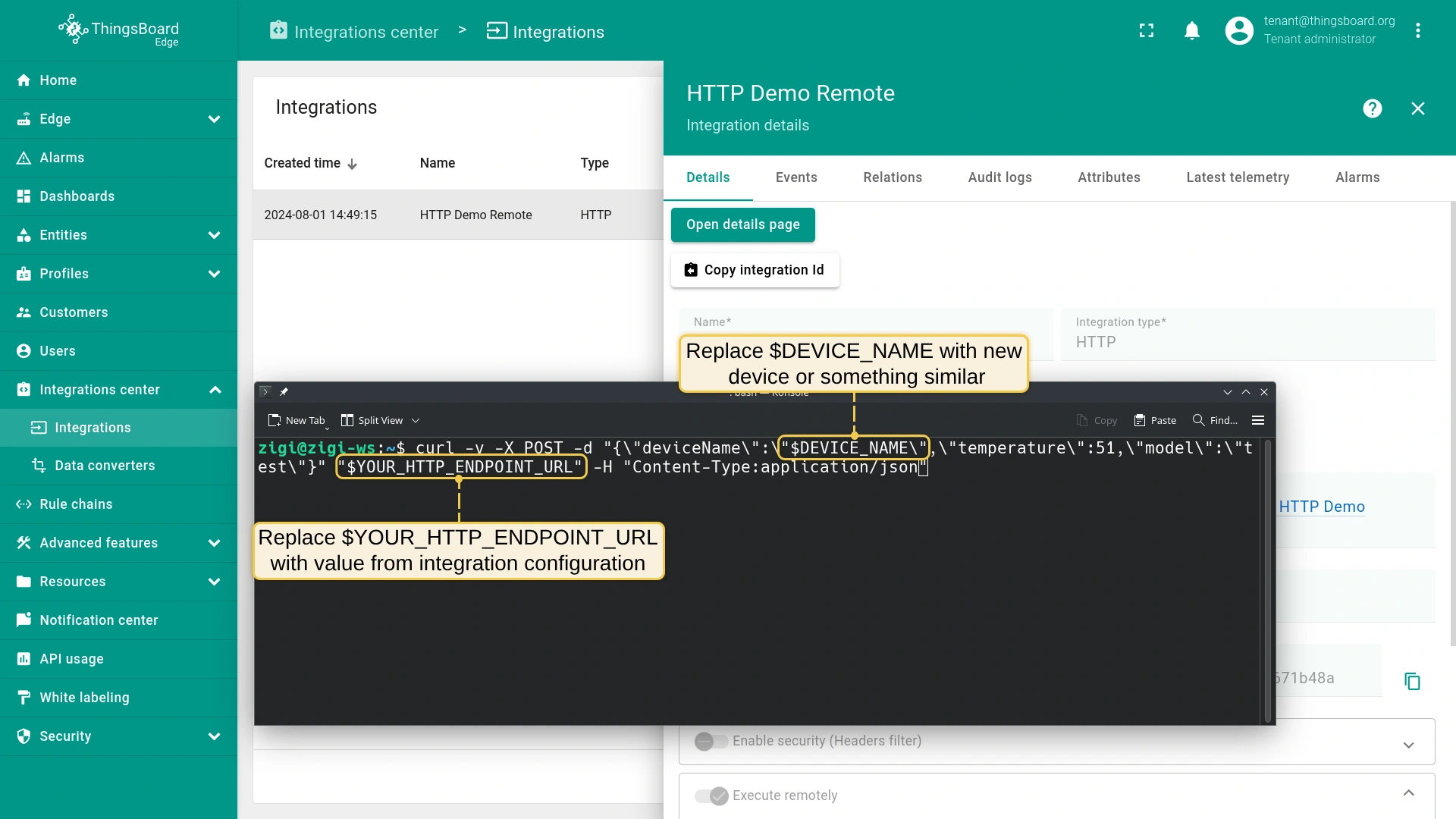

Use this command to send the message. Replace $DEVICE_NAME and $YOUR_HTTP_ENDPOINT_URL with corresponding values.

1

curl -v -X POST -d "{\"deviceName\":\"$DEVICE_NAME\",\"temperature\":33,\"model\":\"test\"}" $YOUR_HTTP_ENDPOINT_URL -H "Content-Type:application/json"

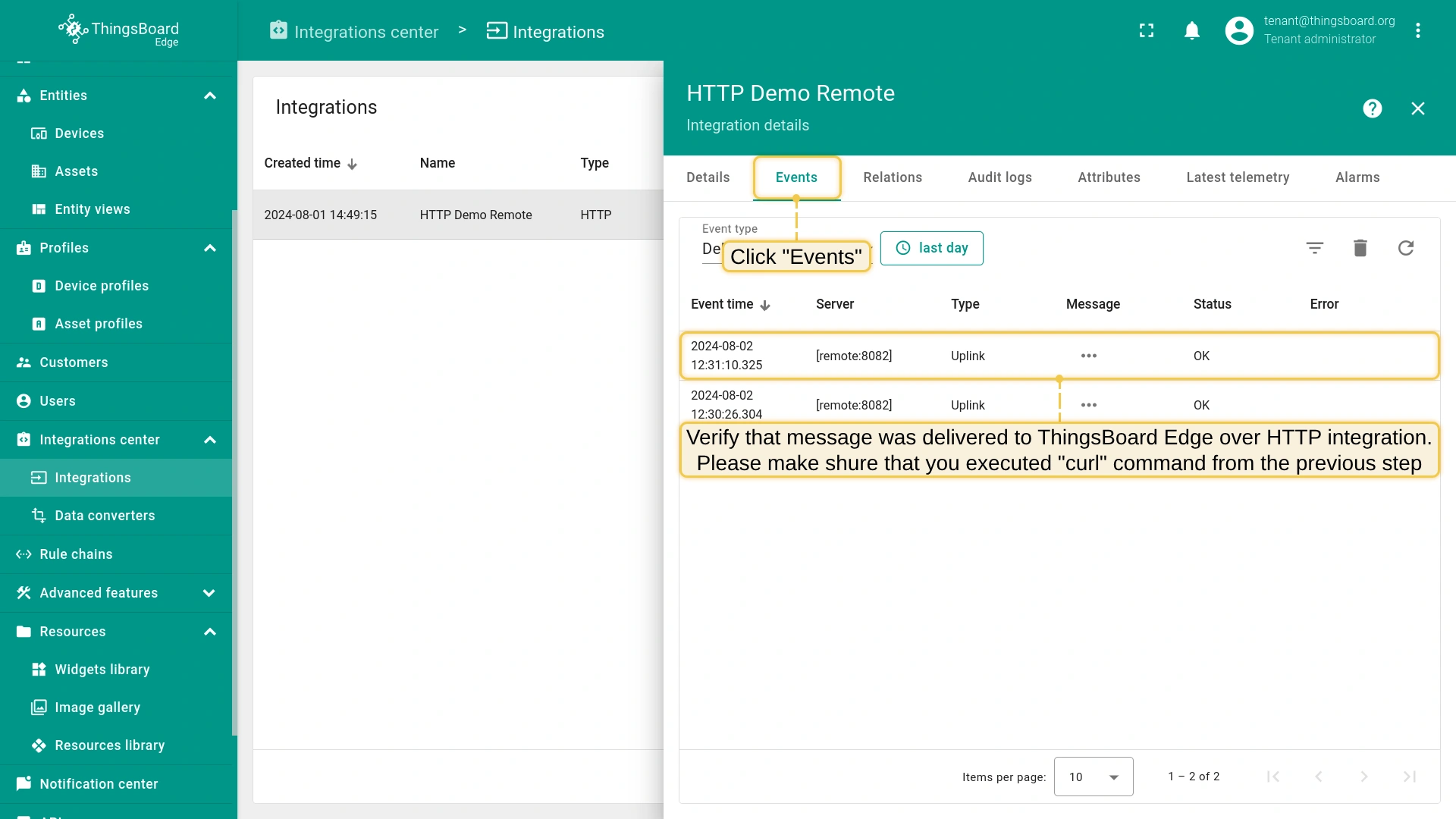

The created device with data can be seen in the section Device groups -> All on the Edge:

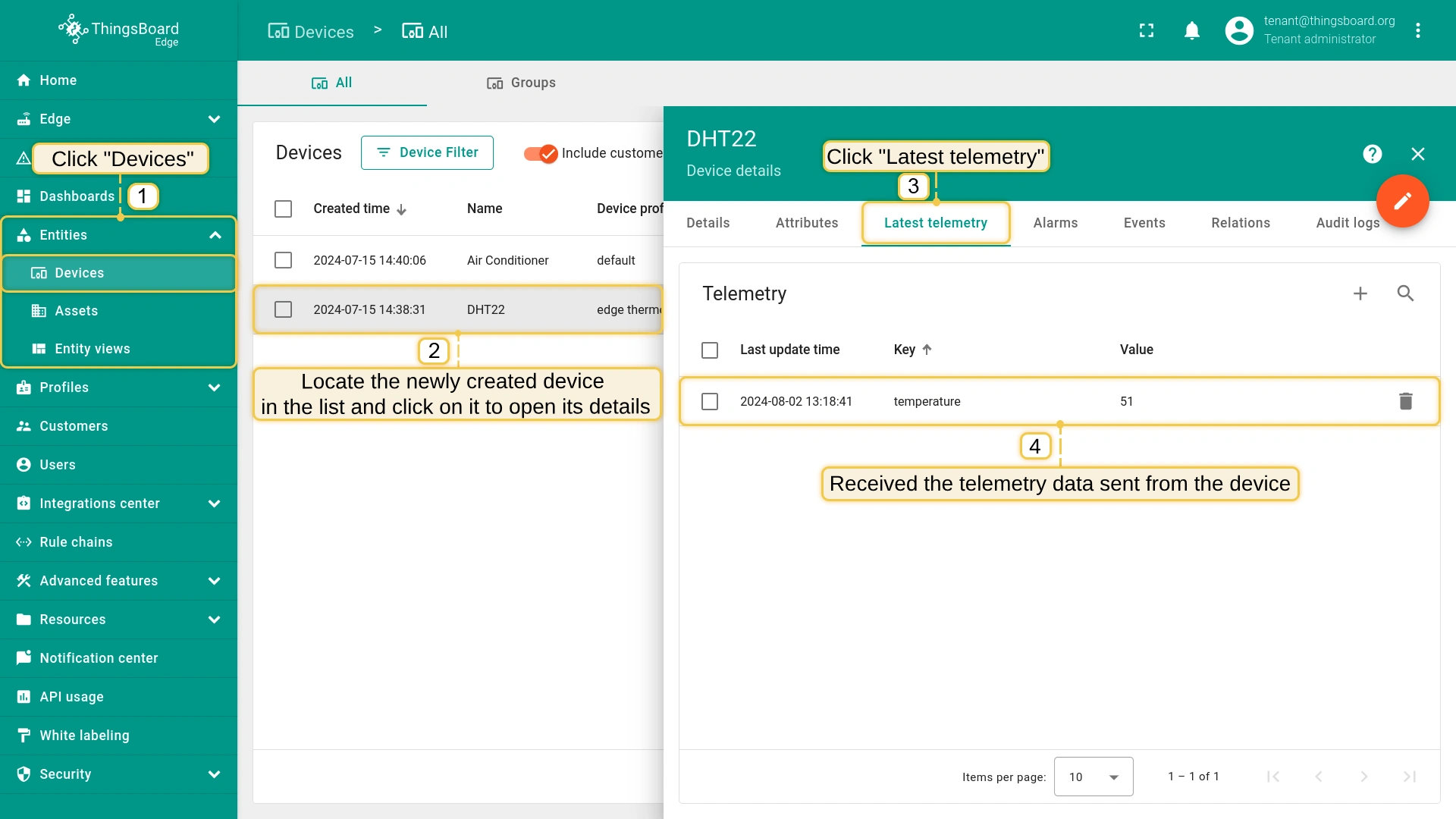

Go to the "<b>Entities</b>" section -> "<b>Devices</b>" page on the Edge to see the created device with data.
Go to the "Entities" section -> "Devices" page on the Edge to see the created device with data.

Remote integration configuration

Remote integration configuration is done via ThingsBoard UI and there is no specific steps. Explore guides and video tutorials related to specific integrations:

Remote integration troubleshooting

Please review the log files. Their location is specific to the platform and installation package you have used and is mentioned in the installation steps.

Next steps
